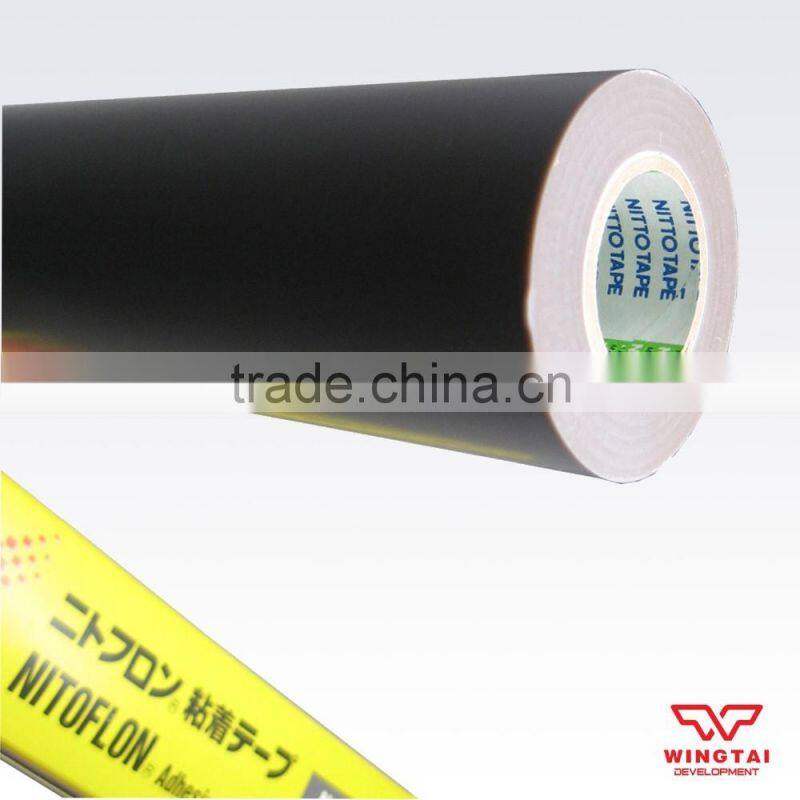

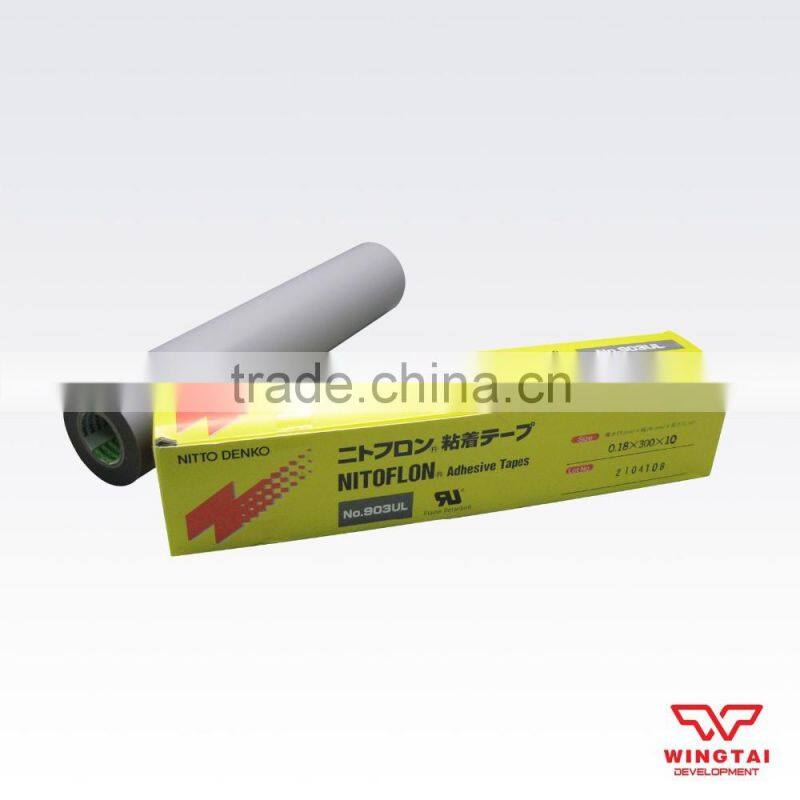

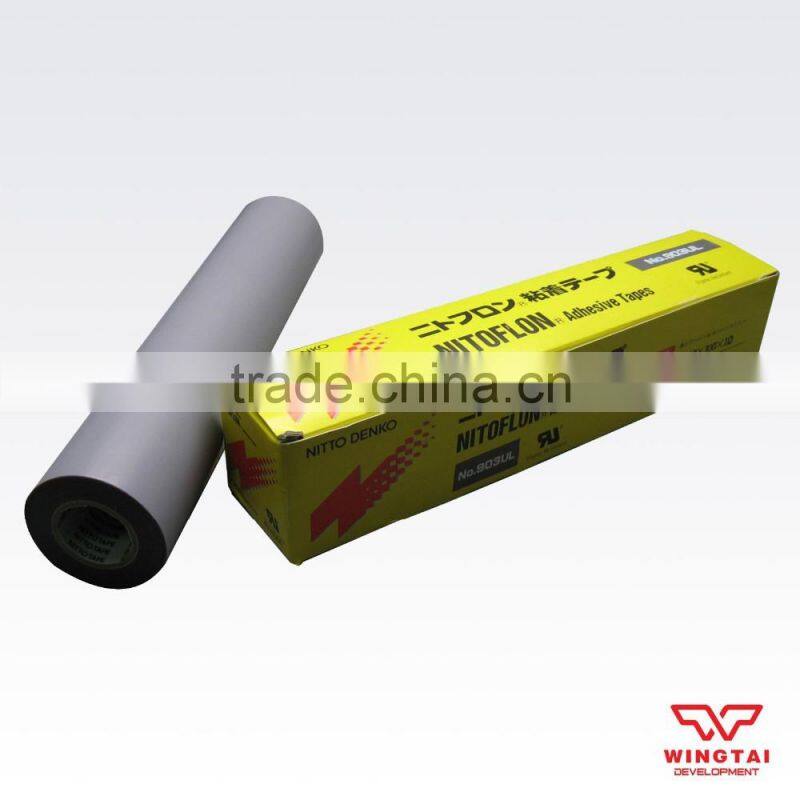

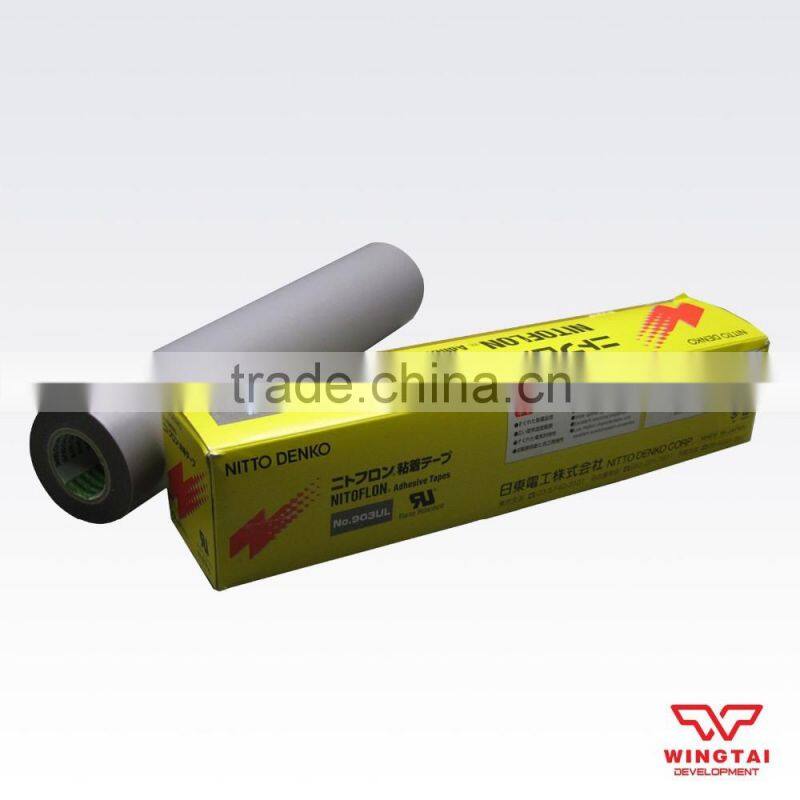

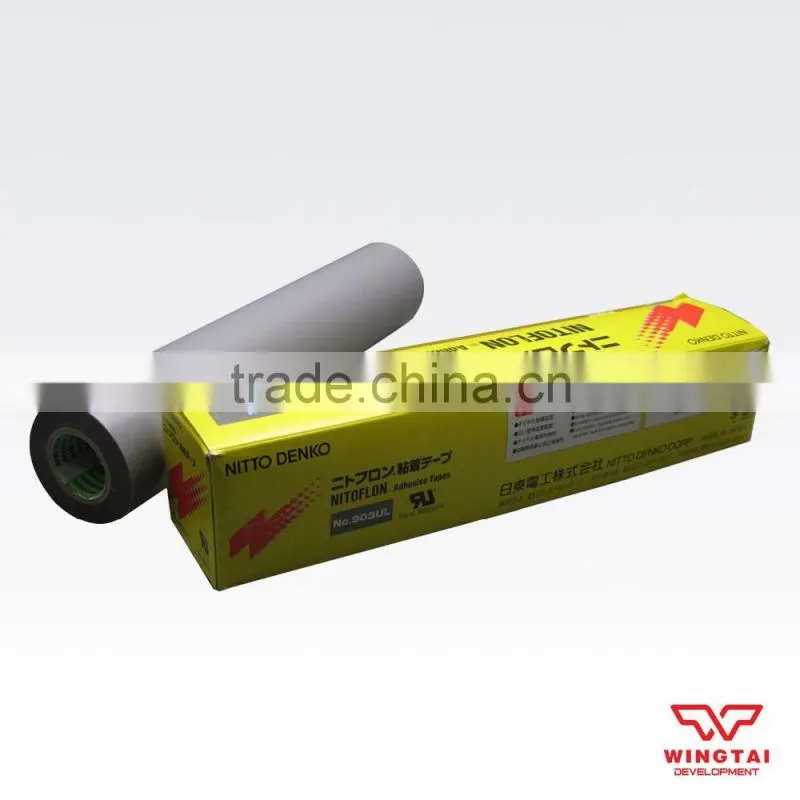

T0.18mm*W300mm*L10m NITTO Denko Heat Resistance Duct Tape
Class H electrical insulating adhesive tape using fluoroplastic film.
Single surface treated polytetrafluoroethylene (PTFE) film base tape coated with silicone adhesive with excellent heat resistance. Along with great electrical characteristics, the tape has a number of excellent features, such as heat resistance, chemical resistance, low friction coefficient and non-adhesiveness.
Features
1. UL510 certified.
2. Superior in mold-releasing and sliding property.
3. Uses the Class H insulating material.
4. Superior flame resistance.
5.Nonadhesive side of the tape offers excellent characteristics of polytetrafluoroethylene, such as electrical property, resistance to heat, weather, chemical, and water (water -shedding), low friction coefficient and non-adhesiveness.
6. Can smoothly adhere, wind, band and seal, just like regular adhesive tapes.
Applications
- For heat-resistant masking.
- For heat-sealing.
- For heat-resistant electrical insulation.
Widely used in: The food industry, printing industry, industry, chemical industry, etc
Item |
Characteristic Value |
|||
No.903UL | ||||
Thickness (mm) |
0.08 |
0.13 |
0.18 |
0.23 |
Tensile strength (N/19mm) |
55 |
93 |
160 |
210 |
Adhesive strength*1 (N/19mm) |
5.6 |
7.1 |
7.4 |
8.7 |
Rewinding force(N/19mm) |
4.4 |
5.8 |
7.1 |
8.9 |
Breakdown Voltage (KV) |
8 |
11 |
14 |
15 |
Temperature range(℃) |
-60~280 |
|||
Model |
Color |
Substrate |
Short-term heat resistance (℃) |
Continuous use temperature(℃) |
||
Thickness (mm) |
Width(mm) |
Length (m) |
||||
No.903UL |
Gray |
0.08 |
13 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.08 |
15 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.08 |
19 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.08 |
25 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.08 |
38 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.08 |
50 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.08 |
100 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.08 |
250 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.08 |
300 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.08 |
450 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.13 |
19 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.18 |
18 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.18 |
19 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.18 |
25 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.18 |
50 |
10 |
300℃ |
-60~280℃ |
No.903UL |
Gray |
0.18 |
300 |
10 |
300℃ |
-60~280℃ |
