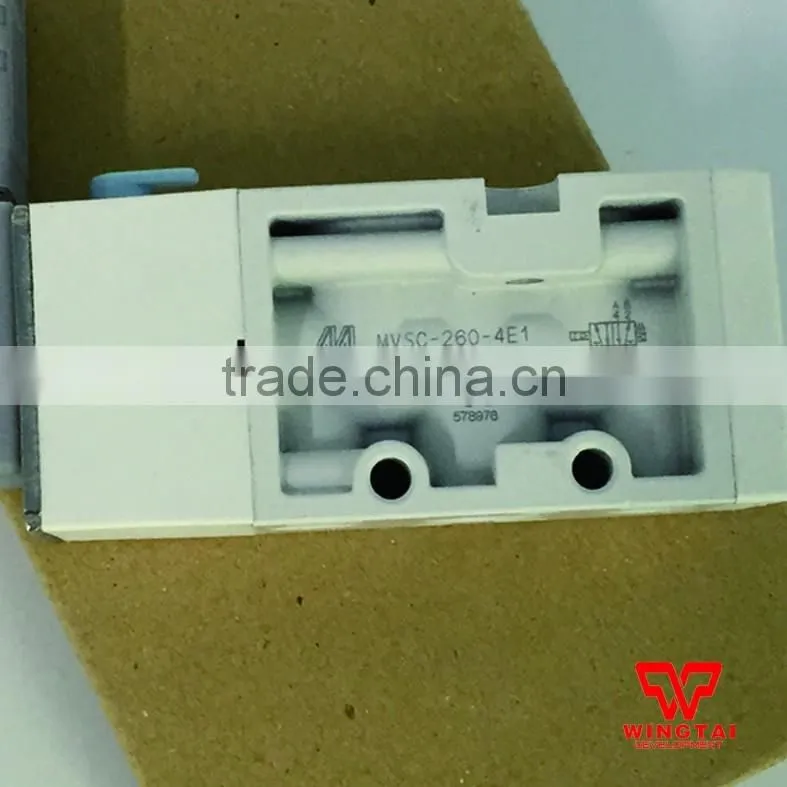

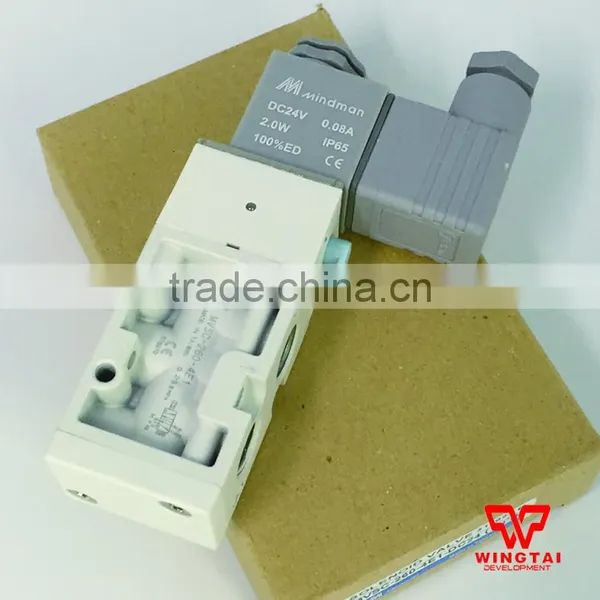

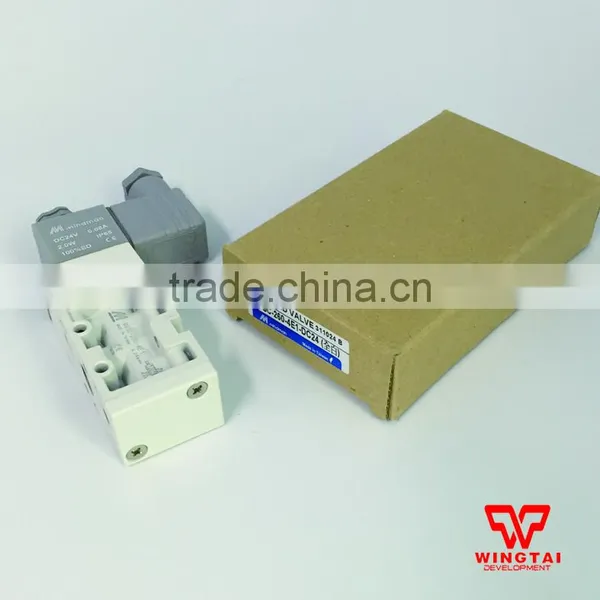

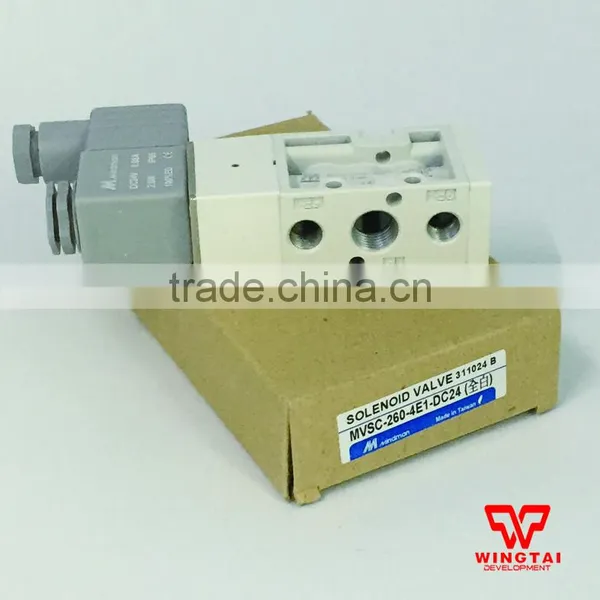

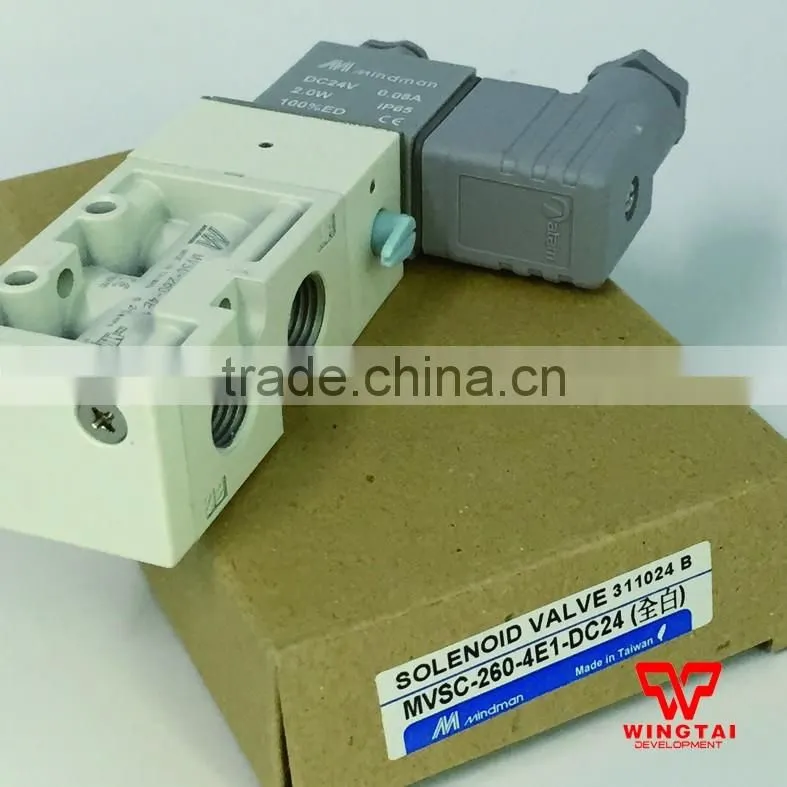

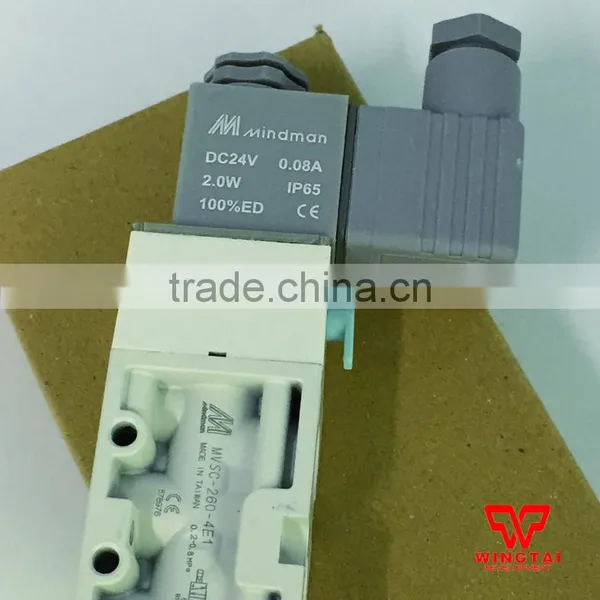

Mindman White Solenoid Valve MVSC-260-4E1, 4-way, Single Solenoid, specify voltage
Brand:MINDMAN
Model:MVSC-260-4E1
Material:Aluminium alloy
Type:Two-position/Five-pass
Connect way:Thread
Medium:Air
Usage:Control the exhaust of cylinder
Working Temp.:Normal Temperature
Net weigh:228g
• The solenoid valve adopts NASS&NISCON coil, fast response, long service life
• Can be applied to some special environmBrand:MINDMAN
• Various type of manual control valve/machinery
Model |
MVSC-260-4E1 |
MVSC-260-4E2 |
MVSC-2604E2CPR |
Bore No. |
8A |
||
Port size |
PT 1/4 |
||
No.of port |
5 |
||
No.of position |
2 |
3 |
|
Medium |
Air |
||
Operating pressure range |
2~7 kgf/cm2 |
3~7 kgf/cm2 |
|
Operating pressure (LP) |
10 kgf/cm2 |
||
Effective orifice |
18 mm2 |
16 mm2 |
|
Ambient temperature |
-5~+50℃(No freezing) |
||
Response time |
40ms |
||
Voltage |
AC110V, 220V(50/60)Hz, DC24V |
||
Power consumption |
AC=6/4.9VA DC=2.5W |
||
Available voltage range |
±10% |
||
Insulation class |
F grade |
||
Weight |
228g |
314g |
444g |
Property for explosion-proof type:
Anti-explosion class |
EEx II T4 |
Voltage |
AC110V. 220V. (50/60)Hz. DC24V. |
Power consumption |
AC=4.4VA DC=5W |
Available voltage range |
±10% |
Insulation class |
F grade |
