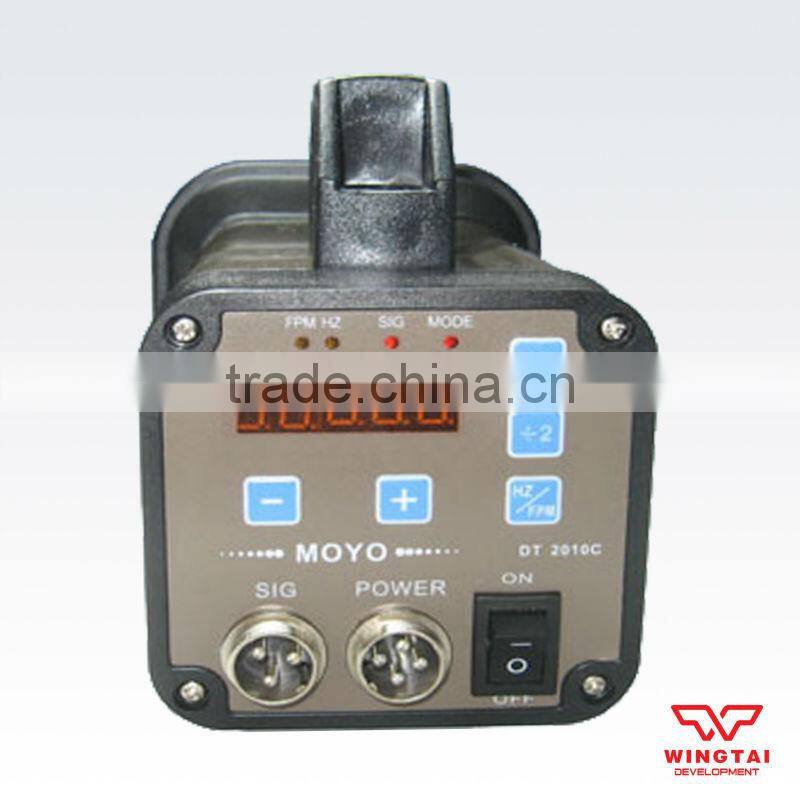

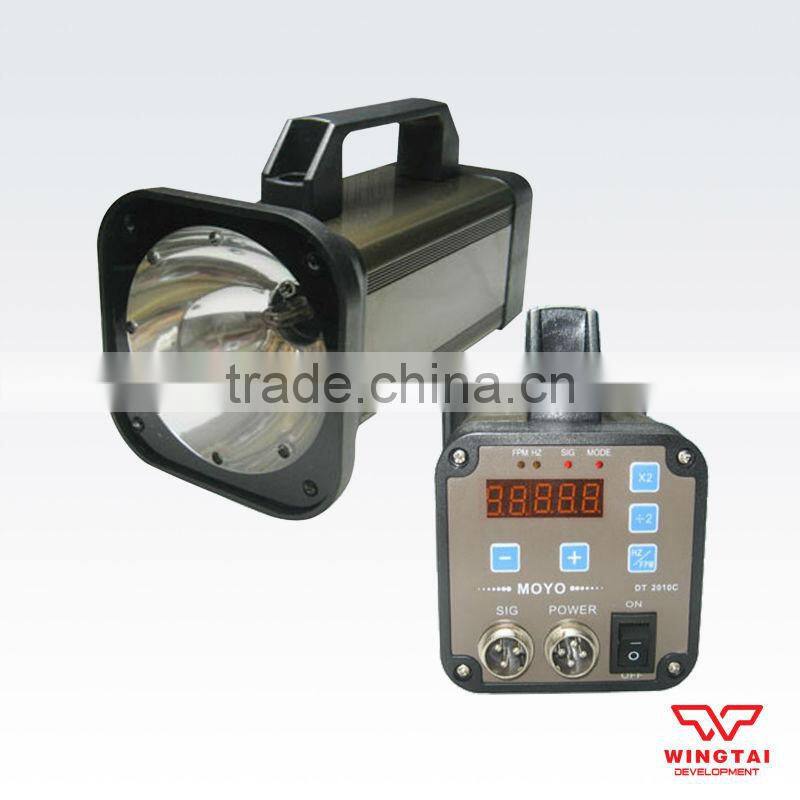

DT2010C Digital Portable Stroboscope Lamp

DT2010C Digital Portable Stroboscope Lamp photo-1
DT2010C Digital Portable Stroboscope Lamp photo-2
DT2010C Digital Portable Stroboscope Lamp photo-3

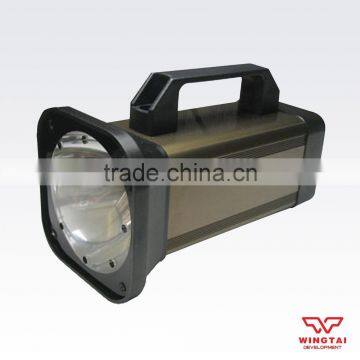

DT2010C Digital Portable Stroboscope Lamp photo-4
DT2010C Digital Portable Stroboscope Lamp photo-5
DT2010C Digital Portable Stroboscope Lamp photo-6
US$ 188 - 216 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Wingtai
Model Number:
DT2010C
Power:
Electronic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Shantou
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Wingtai
Model Number DT2010C
Power Electronic
Usage Other, Still images, observation overprint, Still images, observation overprint

Portable Digital  Portable Stroboscope Lamp DT2010C



Stroboscope is also known as instrument, stroboscope lamp, tachometer.  The instrument can be issued short-term and frequent flash, when adjusting the flashing frequency to match the measured object (such as: motor) speed of rotation or movement close to or synchronized, making high-speed movement of the measured object to be slow movements or relatively static.



People can easily observe the high-speed moving objects’ surface quality and physical activities, can also analyze object’s oscillation, moving contrail and observing printing on-line.



Technique parameters:



Type

DT2010C

Working power

AC 220V

Working frequency

50Hz~60Hz

Total Power

25W~100W

Internal trigger frequency range:

1roll / minute ~ 6000 rolls / minute

External Trigger frequency range

1 roll / min ~ 30000 rolls / minute

Germany Hyman lamp,

working life is more than a hundred million times

Working temperature

0°C~50°C

Relative humidity

lower than 75°C



Features:

1. German lamp, long life, strobe times is up to 10 billion times

2. Frequencies can be easily adjusted, intelligent, and simple operation

3. Competitive price, high-quality, cost-effective

4. After-sales service guaranteed

5. Packaging: environmental friendly paper packaging

6. Unique easy operation panel, rechargeable, portable, easy to use and design synchronization.



Application:

1. Stroboscope is mainly used to still images, observation overprint during the production process

2. Widely used in machinery manufacturing, printing, light industry, textile, power, pharmaceutical, food processing industries.



Note:

In order to protect the strobe tube not damaged by the power impact, make sure each powering on interval over 10 seconds.
