Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S

Shantou Wingtai Packing Equipment Co., Ltd.
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S thumbnail-1
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S thumbnail-2
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S thumbnail-3
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S thumbnail-4
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S thumbnail-5
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S thumbnail-6
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S photo-1
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S photo-2
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S photo-3
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S photo-4
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S photo-5
Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S photo-6
US$ 27 - 30 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Fotek
Model Number:
Fotek H3-TRD-30S
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Shantou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Fotek
Model Number Fotek H3-TRD-30S
Theory Mechanical
Usage Industrial
Type Other, Fotek Timer

Fotek H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S



Product Description

Brand :Fotex
If customized:No

Model:H3-TRD-30S

Control output:Relay

Range:30s

Circumstance:-20°C ~ +60°C , 35%~85%RH

Application: Industry

Dimension:40*50*66mm

Weight:105g

Certification:CE



Technical Parameter

Type

Y-Δ

Starter

Model

H3-TRD-30S

Range

30S

Change Time:0.2S

0.1~0.5S is Available ON Demanded

Weight

105g

Power Supply

12 or 24 VAC/DC or 110V or 230V or 380VAC 50/60Hz

Wattage Consump.

3VA max.

Control Output

Relay

Contact Rated

10A

Repetivity

0.2% of F.S max.

Setting Accuracy

5% of F.S max.

Reset Time

0.1S max.

Insulation Strength

100MΩ / 500VDC

Dielectric Strength

2.5KV / 1 min.

Circumstance

-20°C ~ +60°C , 35%~85%RH

Life of Relay

20×10^6 Times





Demension:



Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S

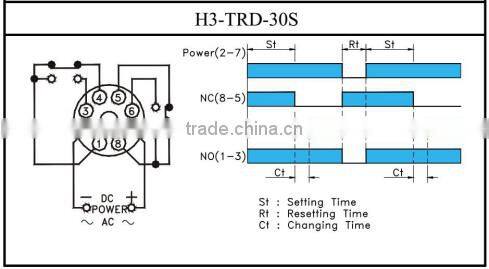

Connection&Timing Diagram

Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S

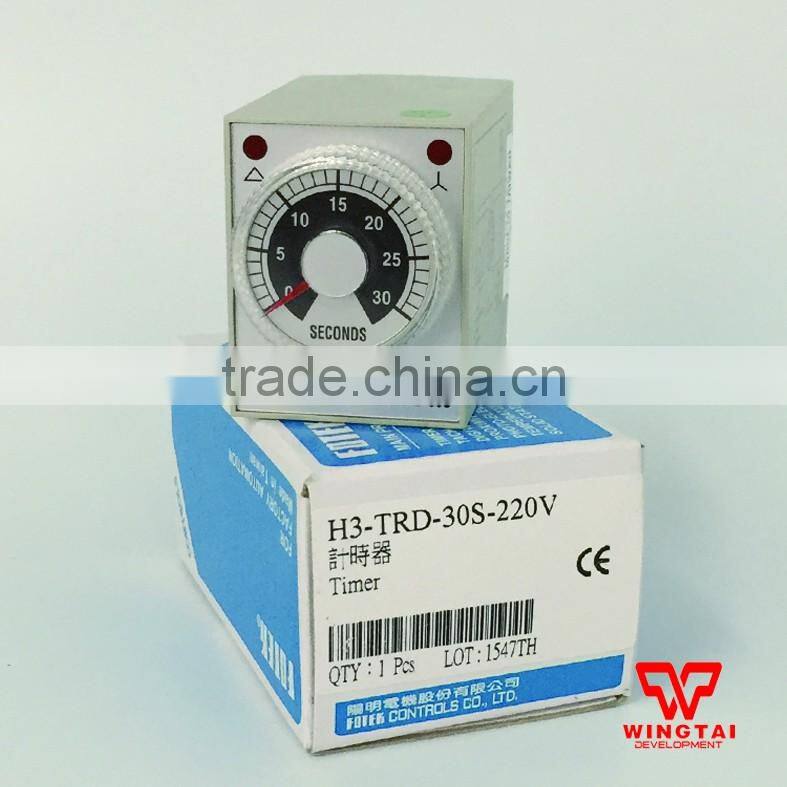

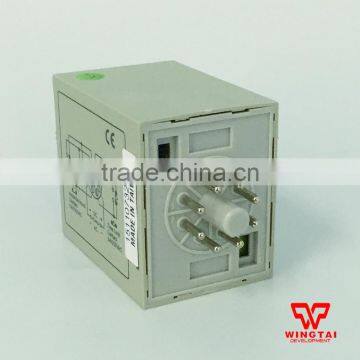

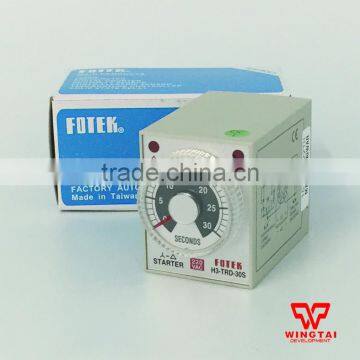

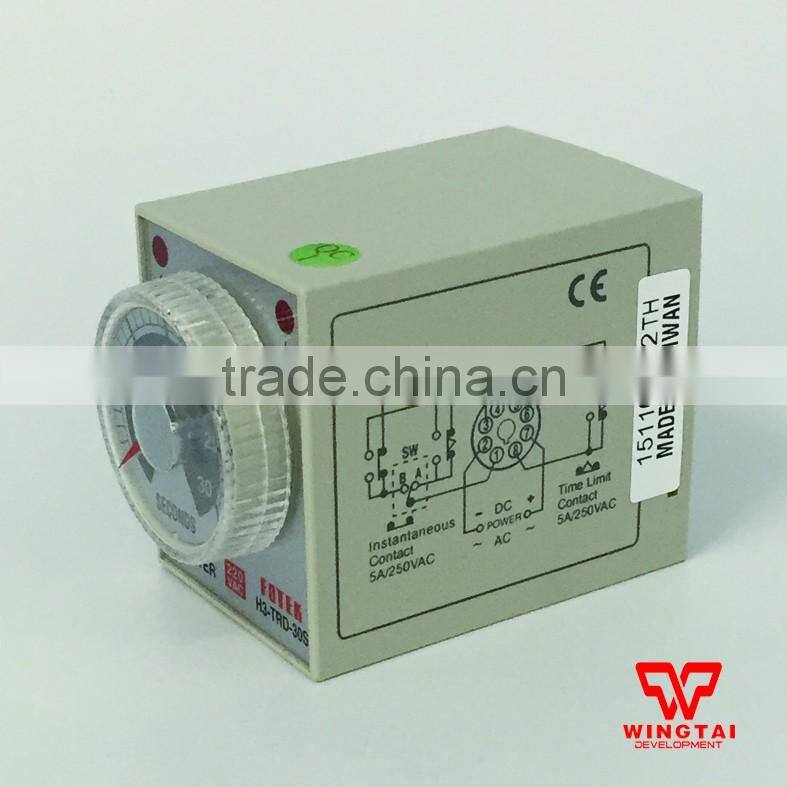

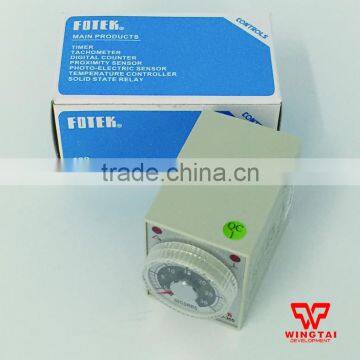

Product Display



 Fotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30SFotek Timer H3 Series On Delay Digital Timer Y-Starter H3-TRD-30S
