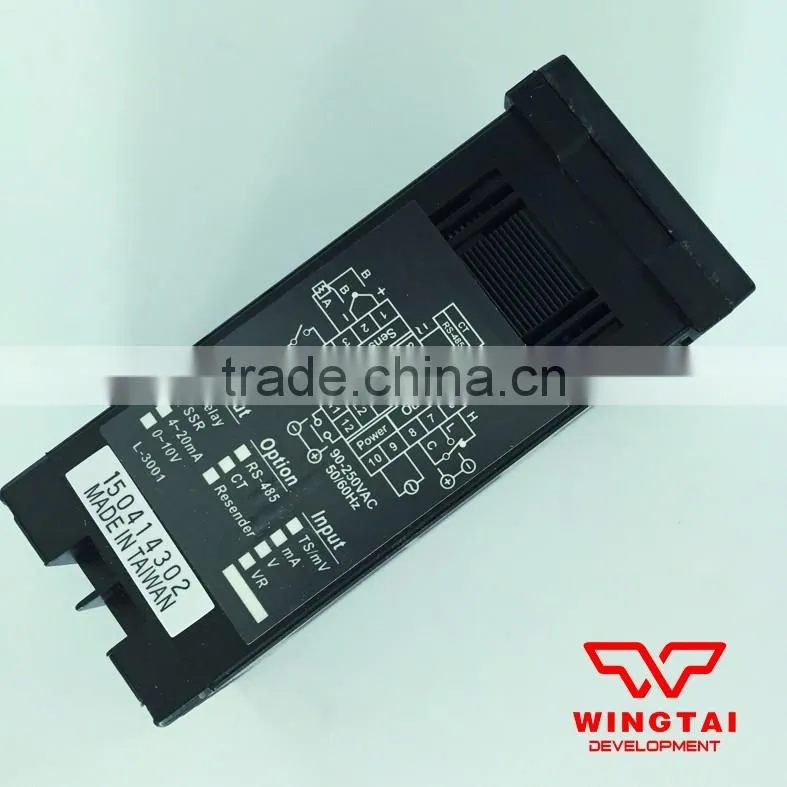

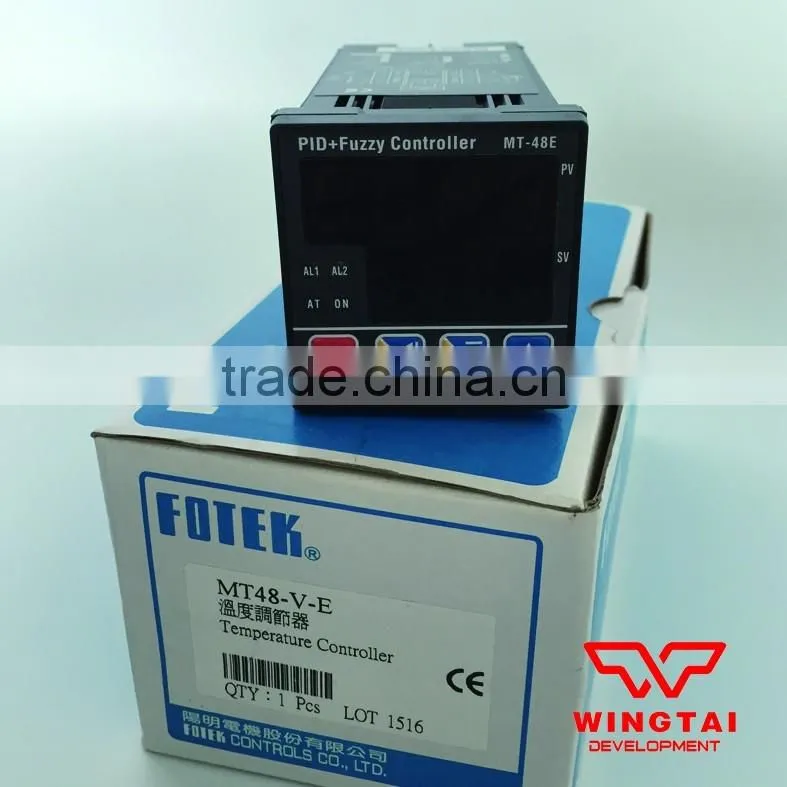

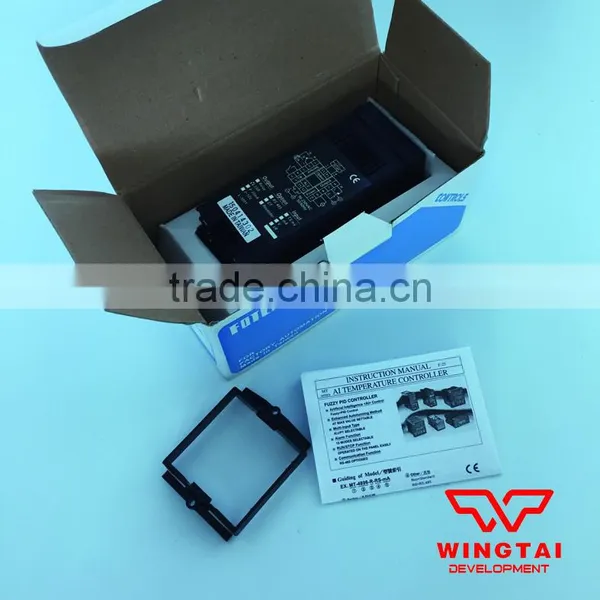

Taiwan Fotek MT Series Intelligent Fuzzy+PID Temperature Sensor MT48-V-E
Model Number: MT48-V-E
Item Name: Intelligent Temperature Controller
Specification & Characteristic |
Data |
|
Power Supply |
90 ~ 265 VAC 50/60 HZ |
|
Power Consumption |
5VA max. |
|
Sensor Input |
K / J / PT-100Ω selectable |
|
Control Output |
Relay |
3A / 250 VAC SPDT |
Voltage |
12V / 50mA |
|
Linear |
4~20 mA ; Load: 600Ωmax. |
|
Alarm Output |
3A / 250 VAC SPDT |
|
Control Method |
Fuzzy + PID or ON / OFF settable |
|
Operating Circumstance |
-20°C ~ +75°C ; 25% ~ 85% RH |
|
Display Accuracy |
±0.1% of FS + 1 digit |
|
Cycle Time |
0 ~ 99 sec |
|
Proportional Band (P) |
0 ~ 999 |
|
Integral Time (I) |
0 ~ 3999 |
|
Derivative Time (D) |
0 ~ 3999 |
|
Alarm Range |
-99 ~ 999 |
|
PV Sampling Time |
0.1 sec |
|
Input Shift |
-99 ~ +99 |
|
AT Bias (TU) |
0 ~ 999 |
|
Memory Method |
EEPROM |
|
Insulation Resistance |
Over 50MΩ / 500VDC |
|
Dielecttric Strength |
Over 2.5kV / 1 minute |
|
EMC Standard |
ESD: 8 KV Air Discharge (Level 3) / EN-61000-4-2 |
|
