Home > Electrical & Electronics > Sensor > Pressure Sensor > NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine

Name: NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine
Brand: KONTEC
SKU: 138341891
Availability: InStock

Shantou Wingtai Packing Equipment Co., Ltd.

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine thumbnail-1

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine thumbnail-2

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine thumbnail-3

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine thumbnail-4

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine thumbnail-5

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine thumbnail-6

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine photo-1

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine photo-2

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine photo-3

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine photo-4

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine photo-5

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine photo-6

US$ 1 - 140 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

KONTEC

Model Number:

KS-C2W

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen / Shantou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name KONTEC

Model Number KS-C2W

Usage Speed Sensor

Theory Optical Sensor

Output Digital Sensor

NPN White Light Electric Sensor Taiwan KONTEC KS-C2W for Printing Machine

Photoelectric eye using the coaxial optical path reflection principle, emission source of imported special poly-type LED, and optional in a variety of light sources, in order to adapt to different applications, receiving part using imported highly sensitive receiver tube, internal precision electronic components, fast response

Can be used for: all kinds of vertical. Horizontal packaging machines, all kinds of bag making machine, cutting machine, slitting machine, and other printing machinery. As color-coded identification, precise control of the length of the bags, auto-correction and other fields .

Main Features:

1. Cast a light white and green
2. Coaxial reflection type optical design
3. The light spot is small, the detection accuracy.
4. The output circuit protection design.
5. The power supply voltage :12-30VDC.

Technical Data

Specifiction:

	KS-C2W	KS-C2G	KS-C2R	KS-C2R/G	KS-C2W/G
Light Source	White	Green	Red	Red/Green	White/Green
Detection	Coaxial reflective type
Detection Distance	10mm±2mm
Cast Bare Point	1.0mm
Supply Voltage	DC10-30V
Power Consumption	40mA or less
Response Time	1mS following
Output Form	NPN type lights moving / dark dynamic dual output
Protection Function	Supply voltage reverse polarity protection, short-circuit protection
Operation Instruction	Red LED, bright Activity directions
Operating Ambient	Temperature: -5 ° C -50 ° C sunshine <10000Lux incandescent <30000Lux
Lead	Four-core cable (brown, yellow, white, blue) standard length 2m

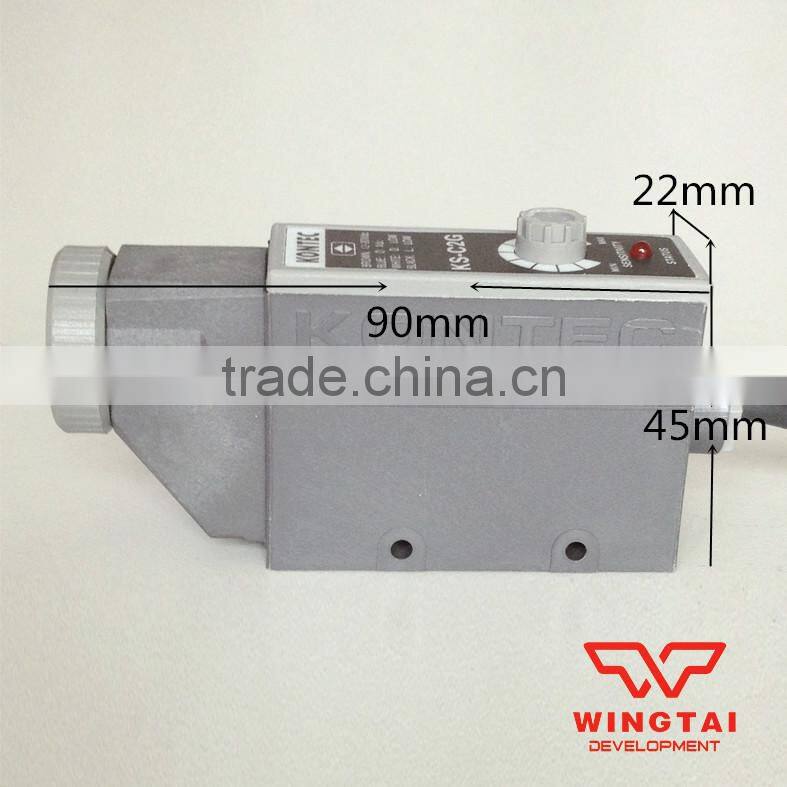

Dimensions	90(L)×45(H)×22(W)

Application

Gravure printing machine, laminating machine, bag making machine, cutting machine, automatic packaging machines; This series of products have accurate, sensitive color vision ability. The shade and cursor Model.

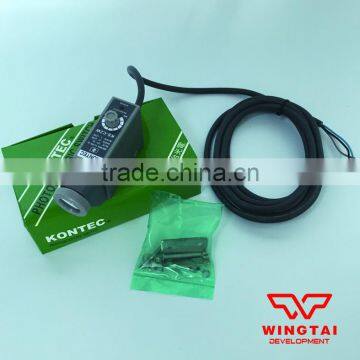

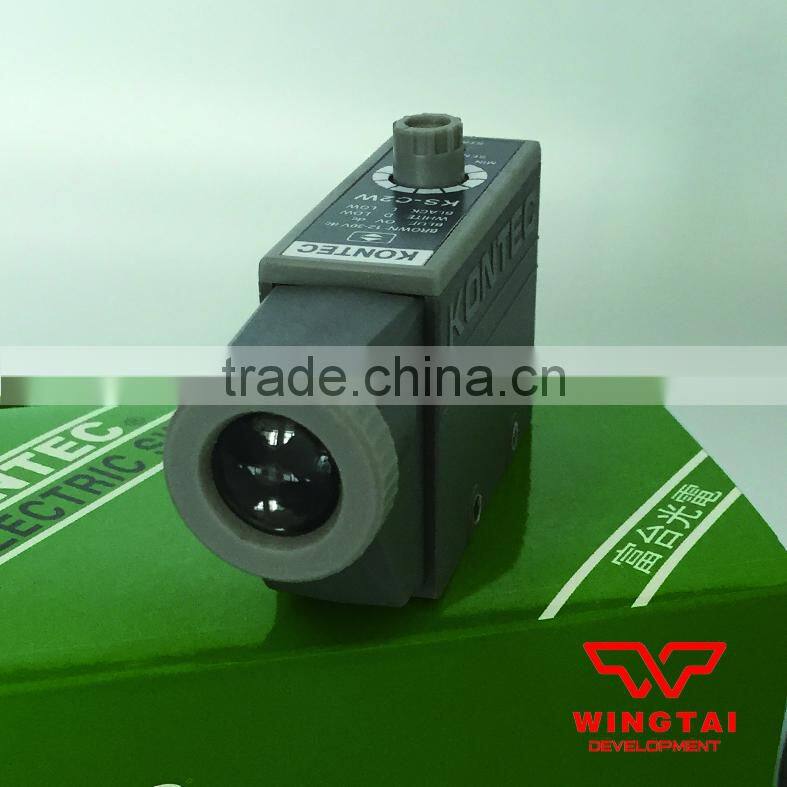

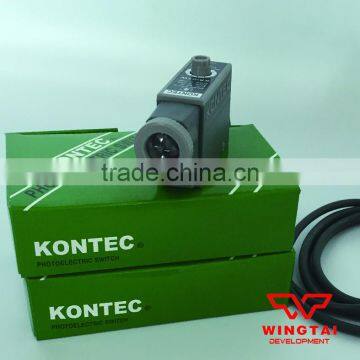

Product Display
