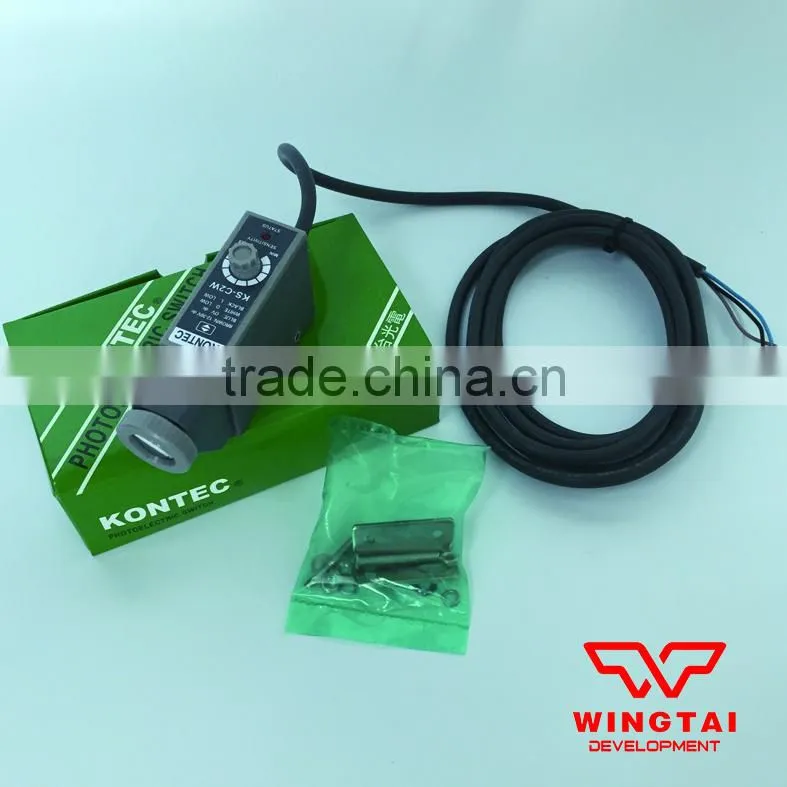

Printing Machinery Taiwan Photoelectric Sensor KONTEC KS-C2W
Photoelectric eye using the coaxial optical path reflection principle, emission source of imported special poly-type LED, and optional in a variety of light sources, in order to adapt to different applications, receiving part using imported highly sensitive receiver tube, internal precision electronic components, fast response
Can be used for: all kinds of vertical. Horizontal packaging machines, all kinds of bag making machine, cutting machine, slitting machine, and other printing machinery. As color-coded identification, precise control of the length of the bags, auto-correction and other fields .
Main Features:
1. Cast a light white and green
2. Coaxial reflection type optical design
3. The light spot is small, the detection accuracy.
4. The output circuit protection design.
5. The power supply voltage : DC12-30V.
Specifiction:
|
KS-C2W |
KS-C2G |
KS-C2 (R/G) |
KS-C2 (W/G) |
Light Source |
White |
Green |
Red/Green |
White/Green |
Detection |
Coaxial reflective type |
|||
Detection Distance |
10mm±2mm |
|||
Cast Bare Point |
1.0mm |
|||
Supply Voltage |
DC10-30V |
|||
Power Consumption |
40mA or less |
|||
Response Time |
1mS following |
|||
Output Form |
NPN type lights moving / dark dynamic dual output |
|||
Protection Function |
Supply voltage reverse polarity protection, short-circuit protection |
|||
Operation Instruction |
Red LED, bright Activity directions |
|||
Operating Ambient |
Temperature: -5 ° C -50 ° C sunshine <10000Lux incandescent <30000Lux |
|||
Lead |
Four-core cable (brown, yellow, white, blue) standard length 2m |
|||
Dimensions |
90(L)×45(H)×22(W) |
|||
Application
Gravure printing machine, laminating machine, bag making machine, cutting machine, automatic packaging machines; This series of products have accurate, sensitive color vision ability. The shade and cursor Model.
