Taiwan Kontec Photoelectric Switch KS-C2W

Shantou Wingtai Packing Equipment Co., Ltd.
Taiwan Kontec Photoelectric Switch KS-C2W thumbnail-1
Taiwan Kontec Photoelectric Switch KS-C2W thumbnail-2
Taiwan Kontec Photoelectric Switch KS-C2W thumbnail-3
Taiwan Kontec Photoelectric Switch KS-C2W thumbnail-4
Taiwan Kontec Photoelectric Switch KS-C2W thumbnail-5
Taiwan Kontec Photoelectric Switch KS-C2W thumbnail-6
Taiwan Kontec Photoelectric Switch KS-C2W photo-1
Taiwan Kontec Photoelectric Switch KS-C2W photo-2
Taiwan Kontec Photoelectric Switch KS-C2W photo-3
Taiwan Kontec Photoelectric Switch KS-C2W photo-4
Taiwan Kontec Photoelectric Switch KS-C2W photo-5
Taiwan Kontec Photoelectric Switch KS-C2W photo-6
US$ 1 - 140 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
KONTEC
Model Number:
KONTEC KS-C2W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shantou / Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name KONTEC
Model Number KONTEC KS-C2W
Usage Speed Sensor
Theory Optical Sensor
Output Digital Sensor

Taiwan Kontec White Color Photoelectric Switch KS-C2W



Product Description



Photoelectric eye using the coaxial optical path reflection principle, emission source of imported special poly-type LED, and optional in a variety of light sources, in order to adapt to different applications, receiving part using imported highly sensitive receiver tube, internal precision electronic components, fast response



Can be used for: all kinds of vertical. Horizontal packaging machines, all kinds of bag making machine, cutting machine, slitting machine, and other printing machinery. As color-coded identification, precise control of the length of the bags, auto-correction and other fields .





Main Features:

1. Cast a light white and green
2. Coaxial reflection type optical design
3. The light spot is small, the detection accuracy.
4. The output circuit protection design.
5. The power supply voltage :12-30VDC.





Technical Data



Specifiction:





KS-C2W

KS-C2G

KS-C2   (R/G)

KS-C2   (W/G)

Light Source

White

Green

Red/Green

White/Green

Detection

Coaxial reflective type

Detection Distance

10mm±2mm

Cast Bare Point

1.0mm

Supply Voltage

DC10-30V

Power Consumption

40mA or less

Response Time

1mS following

Output Form

NPN type lights moving / dark dynamic dual output

Protection Function

Supply voltage reverse polarity protection, short-circuit protection

Operation Instruction

Red LED, bright Activity directions

Operating Ambient

Temperature: -5 ° C -50 ° C sunshine <10000Lux incandescent <30000Lux

Lead

Four-core cable (brown, yellow, white, blue) standard length 2m

Dimensions

90(L)×45(H)×22(W)





Application



Gravure printing machine, laminating machine, bag making machine, cutting machine, automatic packaging machines; This series of products have accurate, sensitive color vision ability. The shade and cursor Model.





Product Display


Taiwan Kontec Photoelectric Switch KS-C2WTaiwan Kontec Photoelectric Switch KS-C2WTaiwan Kontec Photoelectric Switch KS-C2W



Related Products

Please Click the Headline. View More...



SICK WL11G-2B2531 Photoelectric Sensor

SICK Contrast Sensor

KT5W-2N1116



SICK Photoelectric Proximity Sensor WTB4-3P1361

Taiwan KONTEC Photoelectric Eye KS-C2W

JULONG Mark Photoelectric Sensor ZN3-TB22

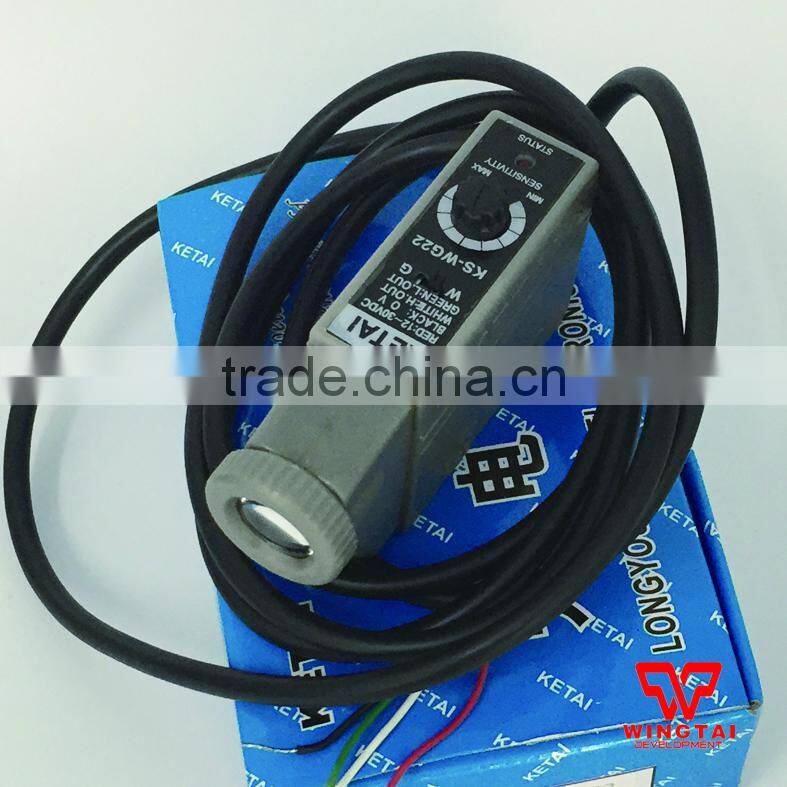

KETAI Photoelectric Switch KS-WG22

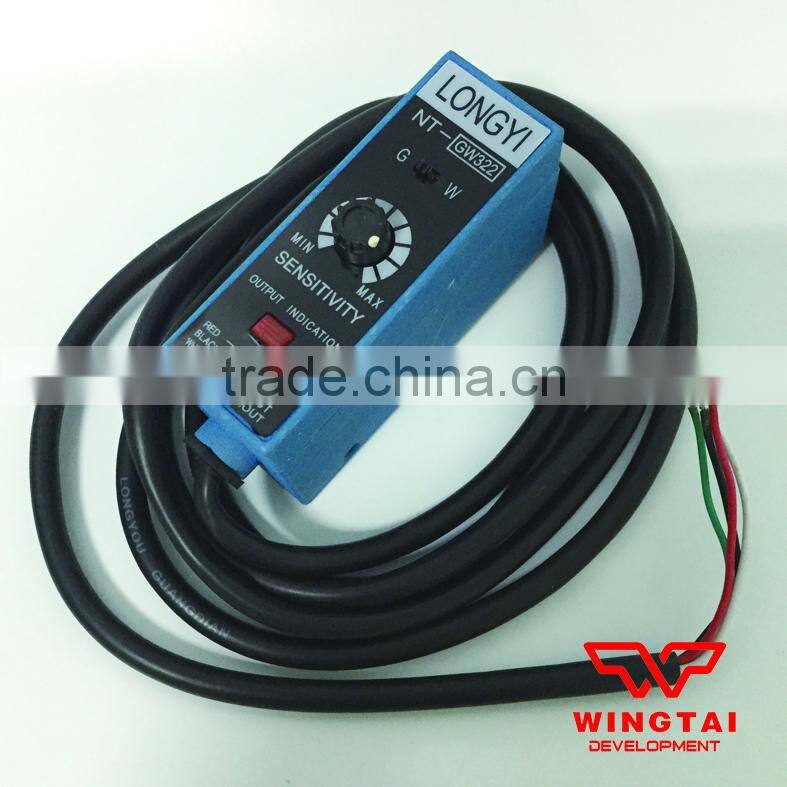

LONGYI Photoelectric Eye

NT-GW322

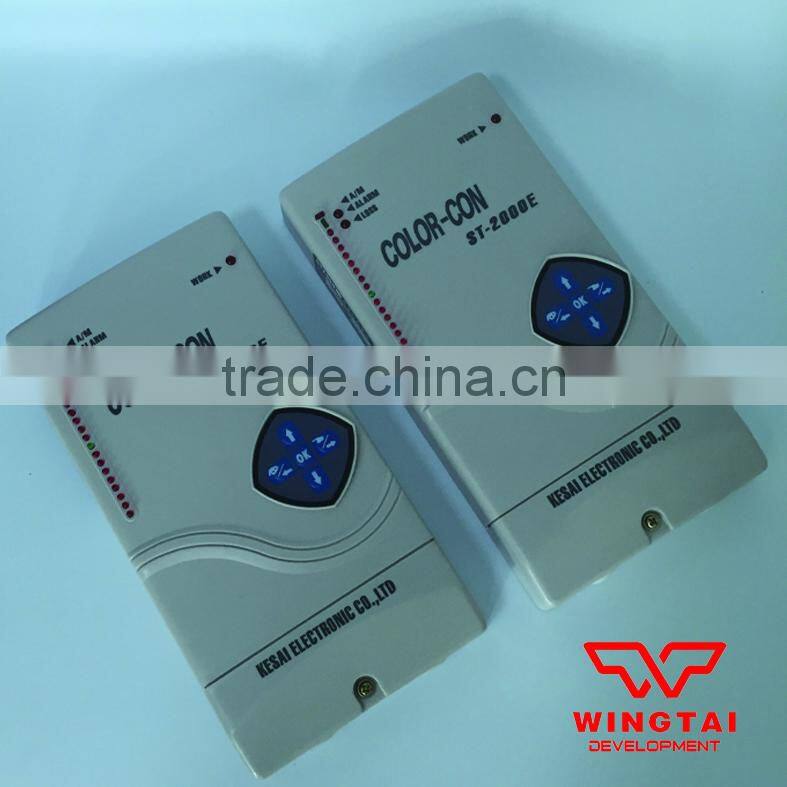

Color Register Procedure Control Unit ST-2000E

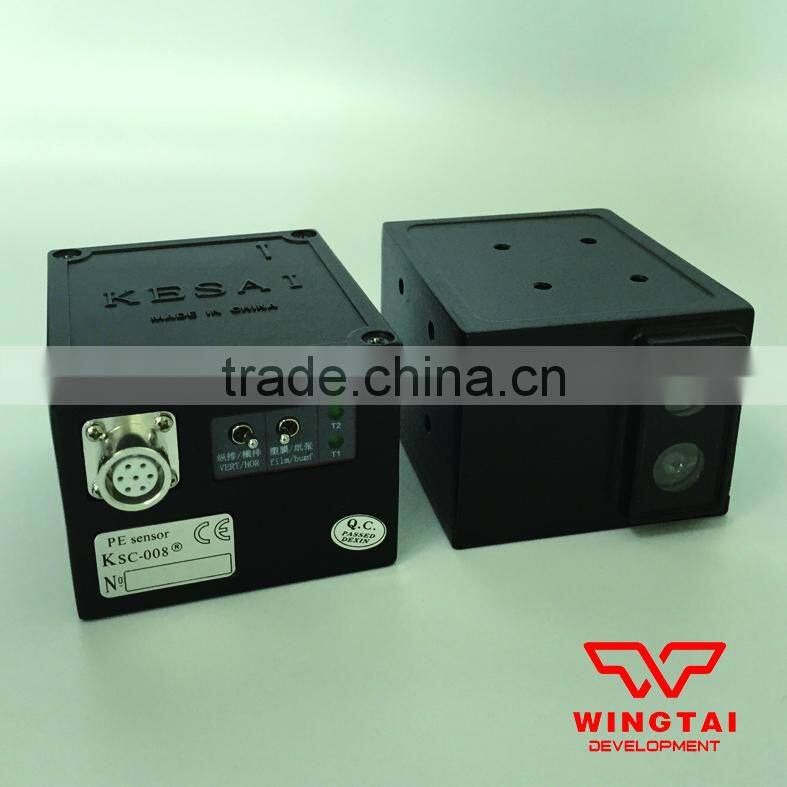

Color Register Sensor KSC-008
