Digital Stroboscope Lamp For Observation Overprint At The High Speed HS-853

Model No. : HS-853

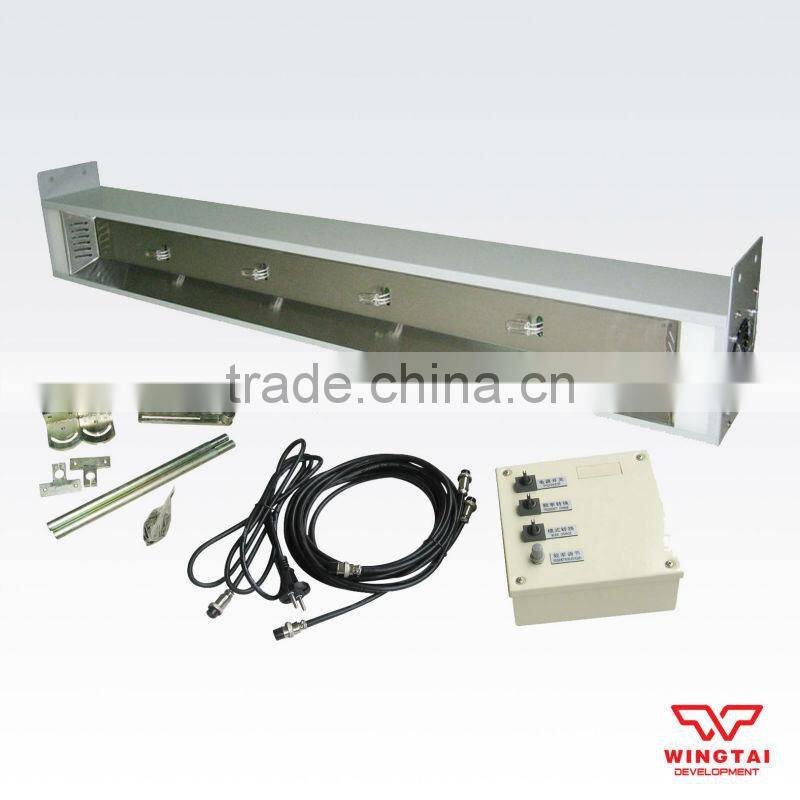

Dimension : L1155*W140*H191mm ( Four units stroboscope lamps )

Net weight : 10.5kg

Pedestal weight : 6kg

The price is decided by the stroboscope lamps 'quantity .

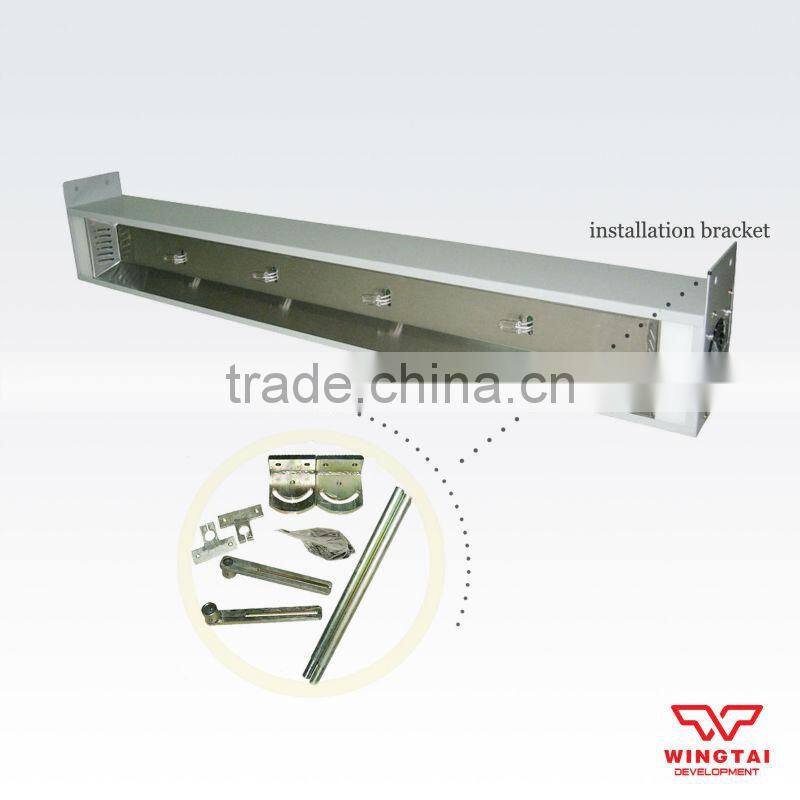

The installing pedestals need to order dividually

We have 2 units, 3 unit , 4 units , 5 units , 6 units  stroboscope lamps respectively .

Main Technique Parameters :

Power Supply: AC 220V ± 10% 50HZ ;

Power: <100W , strobe frequency 2 ~ 70HZ ;

Trigger Frequency Range: 120 ~6000 times / minute ;

Ambient light: <10 000 lux .

Function:

Stroboscope based on a certain frequency of light flashes quickly .

When you observe high-speed rotation or movement of objects

by stroboscope, You can see the object is slowly move or quiescent oppositely  by adjusting the strobe flashing frequency to same or approach as the speed of objects measured . This phenomenon of persistence of vision, people can easily isochronous observe visual objects moving at high speed .

Applications:

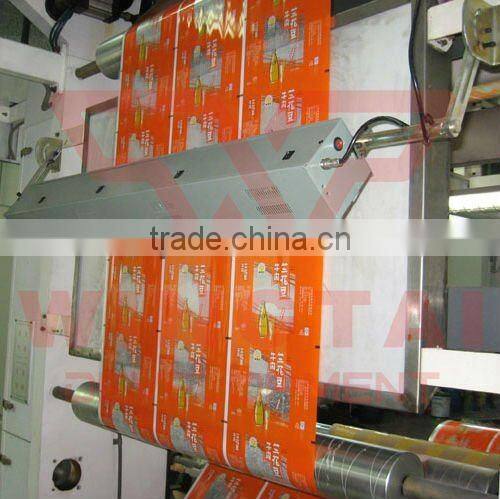

Widely used in packaging and printing industry, can be detected in the chromatography of high-speed printing process, ink color, cutting, punching, folding, etc.; for the textile industry, can detect the spindle rotation and cloth weaving machine weft yarn to send ; for mechanical manufacturing industry, can observe a variety of rotor, gear machinery of movement; for chemical, optical, shipbuilding and other industries.
