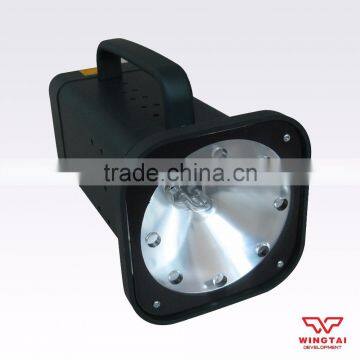

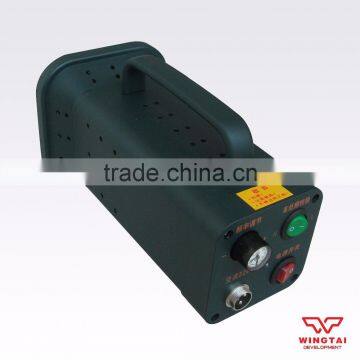

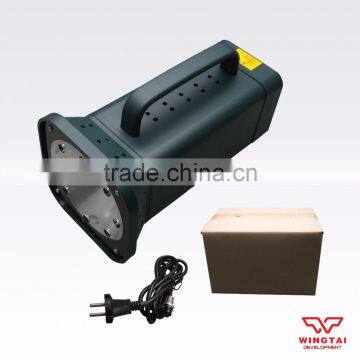

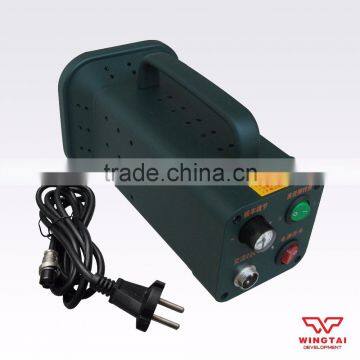

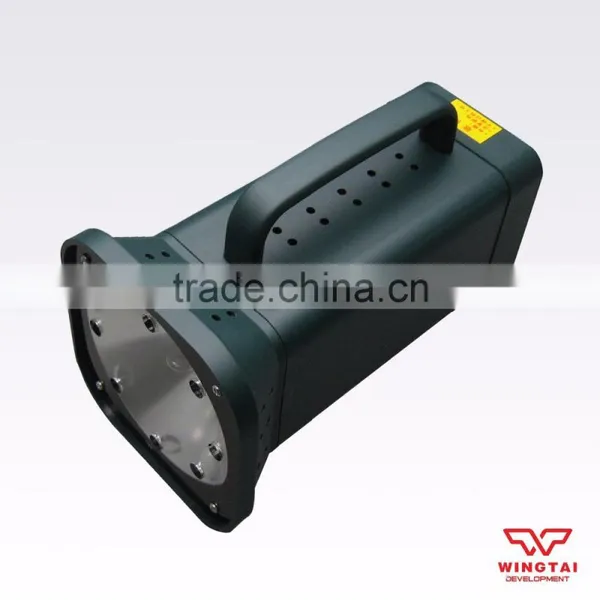

220V 50HZ Rechargeable Stroboscope Light For Print Defect Inspection

Technique Parameters:

Place of Origin: China

Brand: Wingtai

Model No. : HS-852

Type : With Battery

Power: AC 220V±10%, 50HZ

(AC 110V / 60 HZ is available. But price is different )

Power: <100W, 2~70HZ strobe frequency

Trigger frequency range: 120 times / min.~6000 times / min.

Ambient light: <10000 Lux

Specifications: L230*W140*H120mm

Net weight: 1.12 kg

Application :

1. Stroboscope is mainly used to still images, observation overprint during the production process . Unique easy operation panel, portable, easy to use and design synchronization .

2. Widely used in machinery manufacturing , printing , light industry, textile, power, pharmaceutical , food processing industries .

Attention:

1. Insert the power plug slot upwards, do not tighten the plug sleeve, so that the internal connection loose caused by short circuit.

2. When the stroboscope can not work properly, first check the fuse, unplug the power cord, wait 5 minutes after the cover open.

3. When the strobe light leakage may be the lamp aging, please replace the lamp.

4. Lamp cut off the power, there may be charged, non-professionals are not allowed to open.

5. Carefully put, do not fall into the water or solvent, not placed in high temperature and humidity or high pollution environment.

6. When the strobe light flashing anomalies, please turn off the switch interval of 2 to 3 seconds, re-open still abnormal, please recharge and then work. Charging time should not exceed 12 hours to prevent the battery burst.

7. During the transportation, the "power switch" must be turned off; when the lamp fails, please remember to turn off the "power switch" to protect the battery.
