Home > Products > Stroboscope & Sensors > Japan SHIMPO Internal Battery Powered Digital Stroboscope DT-311N

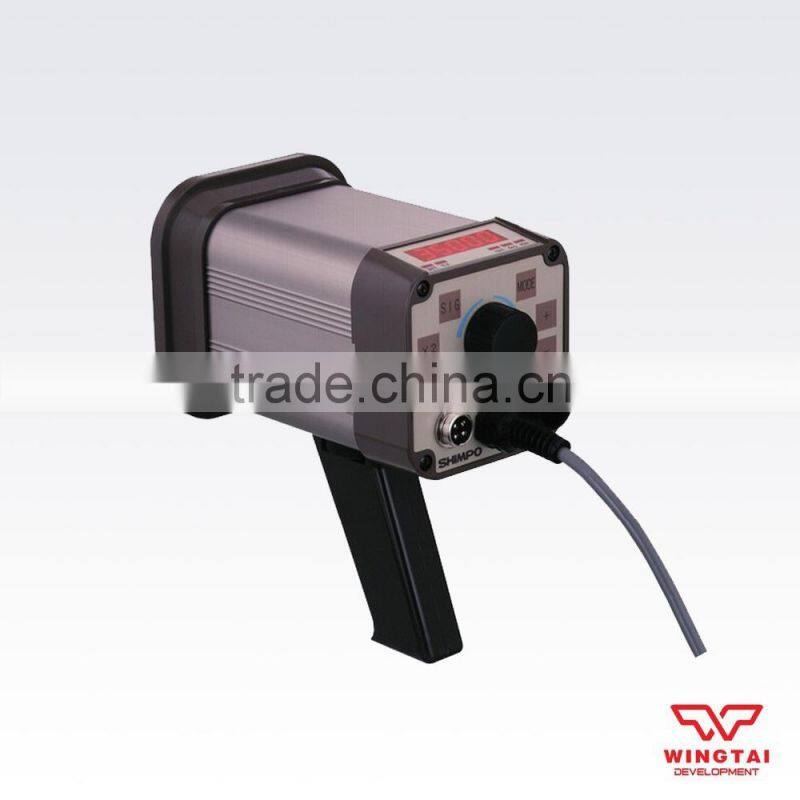

Japan SHIMPO Internal Battery Powered Digital Stroboscope DT-311N

Name: Japan SHIMPO Internal Battery Powered Digital Stroboscope DT-311N
Brand: SHIMPO
Availability: InStock

FOB Price

US$ 1,104 - 1,120 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Japan	Brand Name	SHIMPO
Model Number	DT-311N	Power	Electronic
Usage	Other, Still images, observation overprint

Japan SHIMPO Internal Battery Powered Digital Stroboscope DT-311N

Brand :SHIMPO

Place:JAPAN

Type: DT-311N

Suitable for: printing industry, textile industry, electronic industry, such as industrial production.

SHIMPO--- A new generation of digital stroboscope structure is more concise, more complete, more convenient to carry

1.Check the rotation measuring devices, engines, gears, pulleys

2. Fan shaft, etc. eccentric exercise

3.Check the turbo engine and other high-speed operation

Japan SHIMPO DT-311N Digital stroboscope Parameter

Features

Highest accuracy and most stable flash rate
Provides 12 V DC power for external sensors
Easy-to-read LED display
Accepts external trigger input and provides synchronizing pulse output
Easy-to-operate controls include flash rate adjustment, 2x, divide-2 and phase adjust
Phase shift for best view and flash photography
Detachable pistol-grip handle
Instant double and half-rate flash selection for error-free reading

Technical Data:

Type		DT-311N	DT315N
Internal models	Strobe range	40.0--35,000RPM
	Accuracy	Error of ± 0.01%
	Resolution	0.1RPM:40.0-4,9999.9RPM
		0.2RPM:5,000-7,999.8RPM
		0.5RPM:8,000-9,999.5RPM
		1RPM:10,000-35,000RPM
	Phase shift	Use the + / - buttons (360-6 seconds)
	Display update time	About 0.2 second
	Output signal	Synchronization, 400msec, pulse output 0 to +12 VDC amplitude (approximately), 4.7k Ohms impedance
	amplifier / down scaler	Take 2,divided 2
External Mode	Strobe range	0.0-35,000RPM
	Accuracy	±0.01% ±1
	Phase shift	0-359”. 1°resolution
	Delay Time	40-10,000RPM,0-2,000msec
	External trigger internal signal	LO:0-0.8VDC,HI:2.5-12VDC,Pulse Width: 50usec min
	Input impedance	12CV 4.7K, 0V 6.8K
Overall	Display	5 digit,10mm high,LED
	Flash tube power / life	Xenon, max 10W. (Strobe 100,000,000)
	Strobe duration	10-40usec
	Photoreceptors Power	12VDC(40mA)
	Low battery display	Show “L”
	Power requirements	230VAC,±10%60/50Hz,30VA	Built-in Battery
	Operate temperature	0-40°C
	Weight	1.2kg	2kg
	Dimension	185×120×120mm	250×120×120mm
	Standard Equipment	Hand shank	Hand shank and AC charger

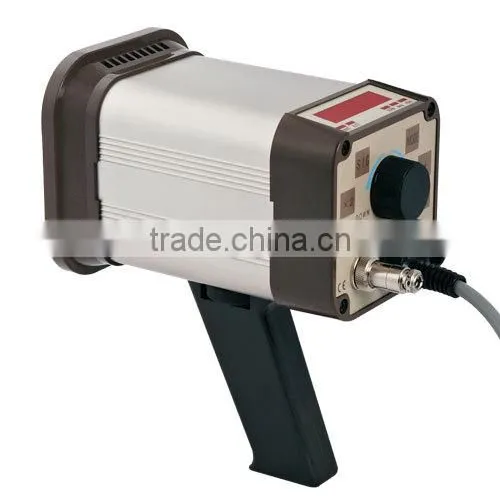

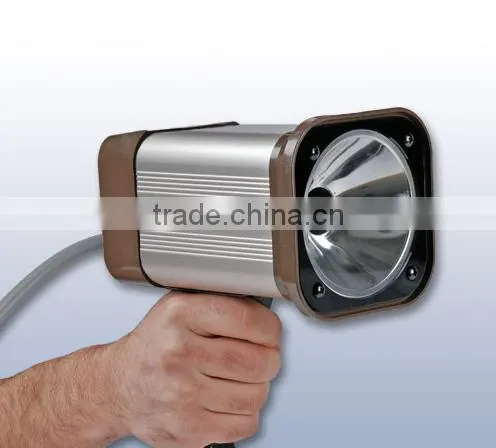

Japan SHIMPO DT-311N

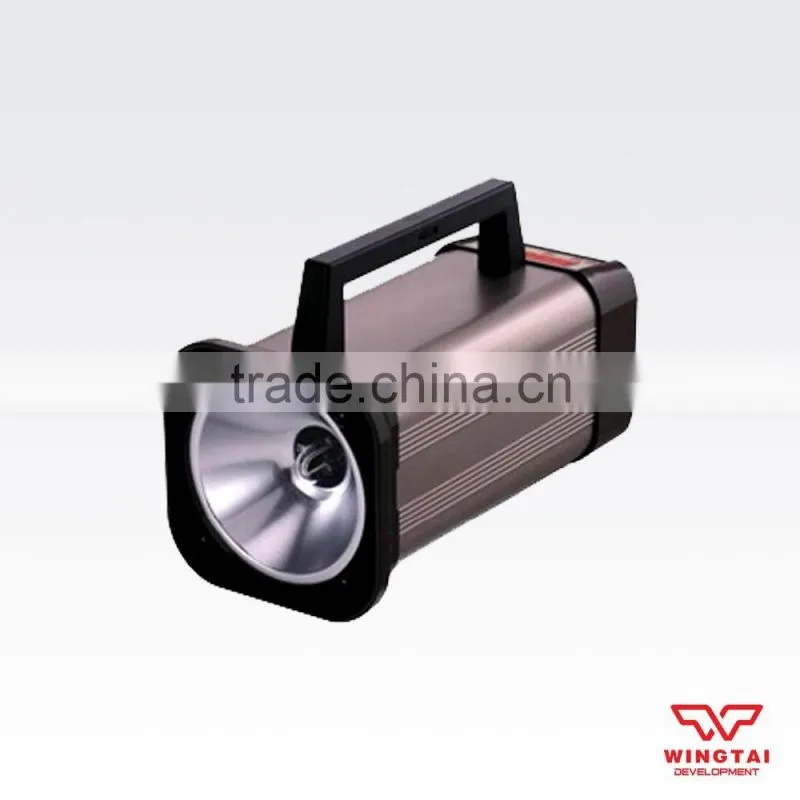

Japan SHIMPO DT-315N
