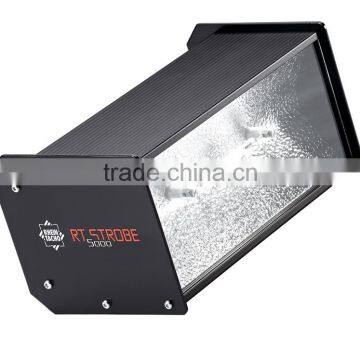

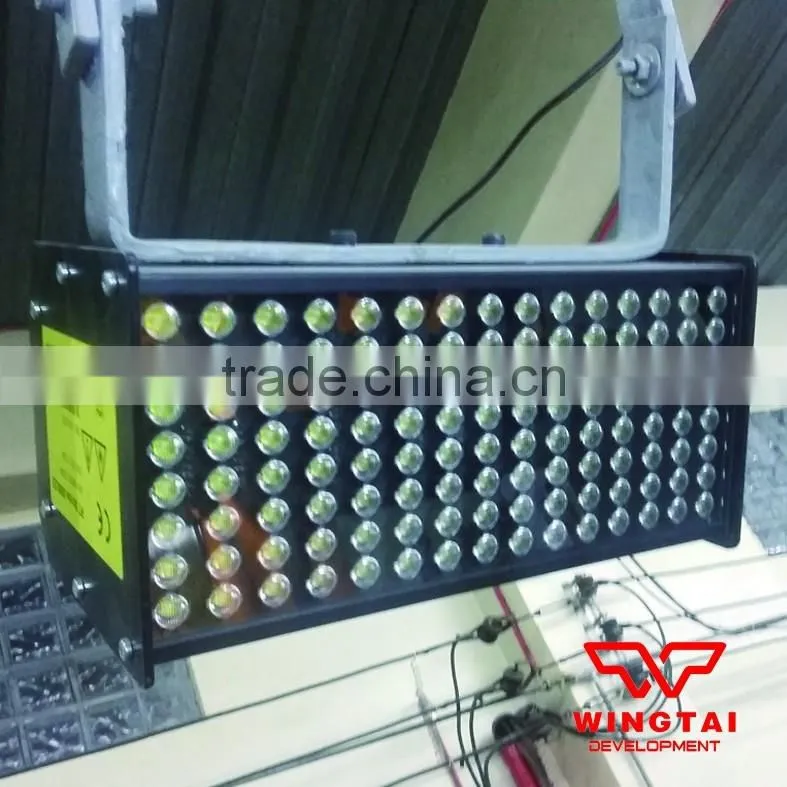

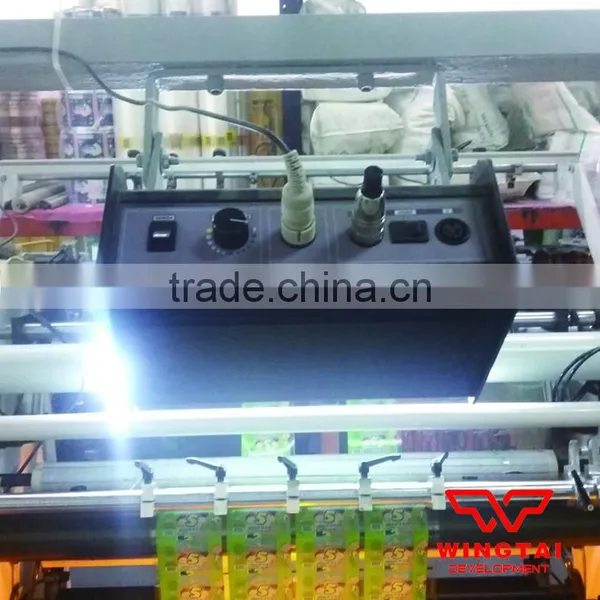

Germany Rheintacho RT STROBE 5000 LED Stroboscope

Shortest flash times and high light intensity for optimum focus up to a web width of 500 mm

Adjustable light intensity from 30% to 100%

Homogeneous, large area illumination 300 x 500 mm

For web widths > 500 mm strobes can be connected in parallel

Optional UV equipment, can also be retrofitted

High light output The large, homogeneous illumination surface delivers superb results even at difficult light conditions, making the RT STROBE 5000 suitable for a very wide range of measu-rement, observation and inspection functions. It is especially suitable for demanding applications, such as those in the printing industry.

High focus As a result of its state-of-the-art electronics system, the RT STROBE 5000 delivers a high level of illuminance and produces pin sharp images, even with extremely fast movements, thanks to its very short flash duration (< 10μs).

Flexible adjustment to all applications Manual control of the light intensity enables you to make precise adjustments to the RT Strobe 5000 to cater for all observation functions. Alternatively, the stroboscope can be controlled directly by the trigger signal of your system without the need for additional control units or by various RT Strobe control devices. When using these trigger options simultaneously, you can easily alter-nate between the signal inputs by using the switch on the reverse side of the device.

Additional control options The RT STROBE control model range includes two devices for varying the control of the RT STROBE 5000:

RT STROBE eco control – a simple and inexpensive unit for controlling flash frequency. You simply insert this small control unit into one of the sockets on the reverse side of the device. RT STROBE control - for adjusting the flash frequency, phase shift, delay time and trigger divider. This unit is connected to the stroboscope by cable and provides the convenience of remote control even if the stroboscope within your machine is difficult to access.
