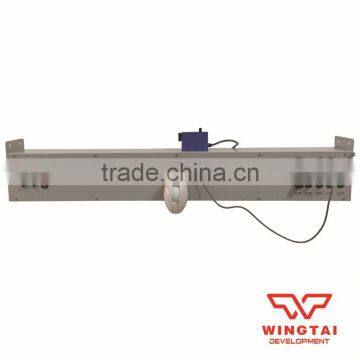

Fixed Multi-union Digital Display LED Light Stroboscope

Fixed Multi-union Digital Display LED Light Stroboscope

Function:

Stroboscope is a light source which is quick flashing with a certain frequency. In stroboscopic instrument observation high speed rotation or movement of objects, by modulating stroboscope flashing frequency, and the measured object rotating or moving close to the speed of the object to be measured and synchronization, while at high speed, but it is the slow motion or relative rest. The persistence of vision, people can easily observe high-speed operation object status.

Use:

Widely used in packaging and printing industry, can be detected by high speed printing process color, ink color matching, die cutting, punching, folding conditions; suitable for the textile industry, can detect the spindle rotation and loom weft cloth machine yarn; suitable for mechanical manufacturing industry, observe various rotor, gear machinery manufacturing movement; suitable in chemical, optical, shipbuilding and other industries.

Technical Information:

1. Power Supply: Alternating Current 220V ± 10%, 50Hz

2. Power: <200W

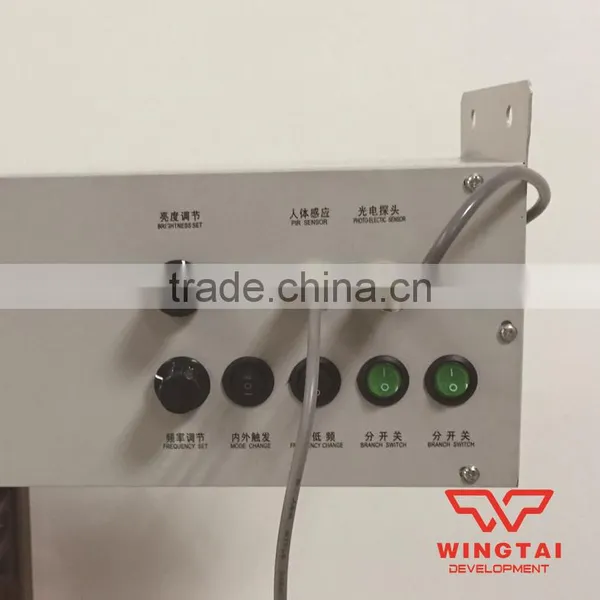

3. Working Frequency: Inner Trigger frequency: 2~60Hz; Outer trigger frequency: <100Hz

You are required to choose the inner trigger frequency method to work when its outer trigger frequency >100Hz. so that it can meet the observation demand.

4. Ambient light: <10000 Lux

Specification:

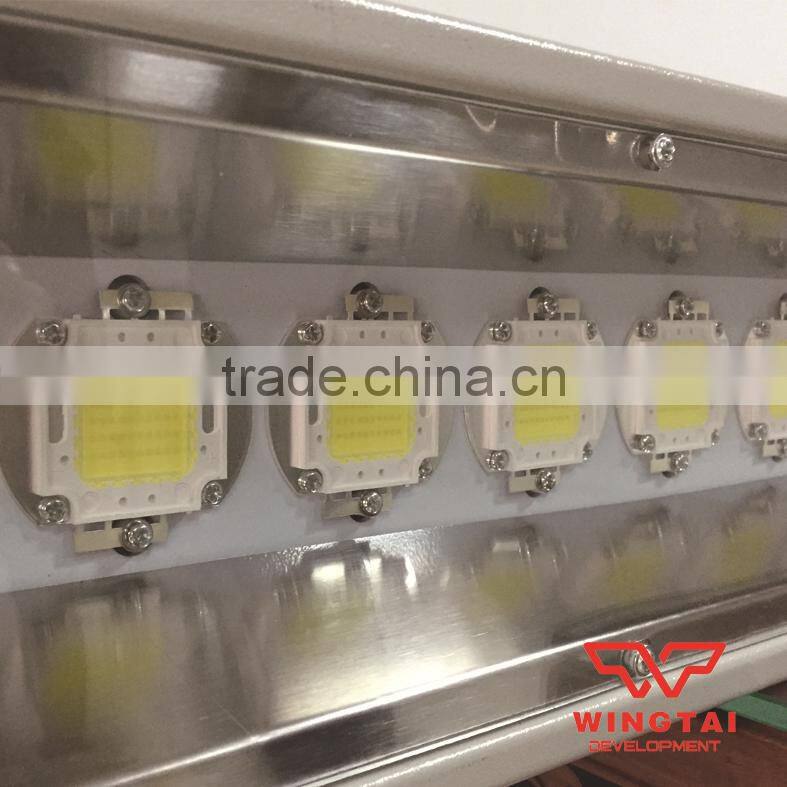

L1000*W150*H191mm (13 sets of LED Light Source)

L1155*W150*H191mm (16 sets of LED Light Source)

Attention:

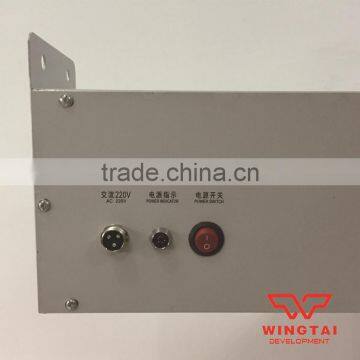

1. Power supply plug slot inserted upwardly, plug sleeve do not screw tight, avoid the internal connection loosening caused by short circuit.

2. When the strobe drain flash may be lamp aging, please timely replacement lamp.

3. The lamp after the power supply is cut off, and may be charged, non professionals are not allowed to open.

4. Handle with care; do not fall into the water or solvent, not in hot and humid or high environmental pollution.
