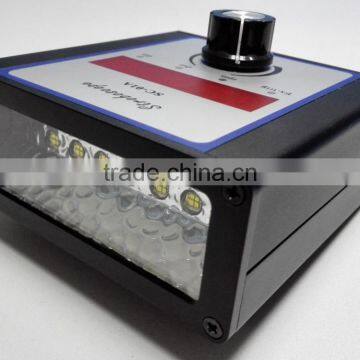

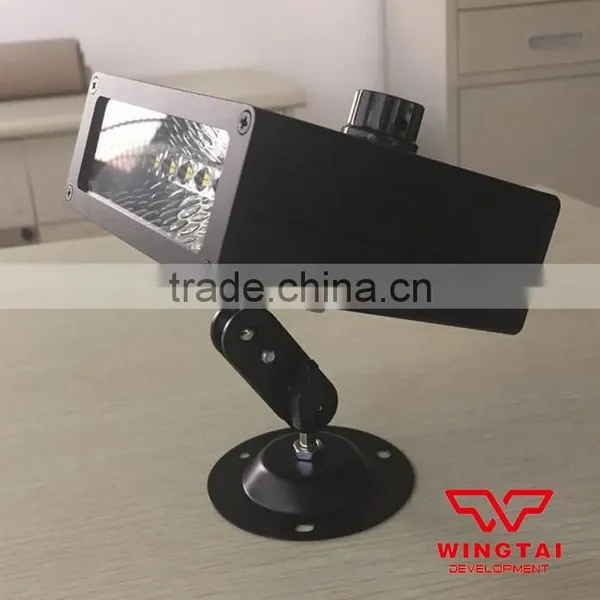

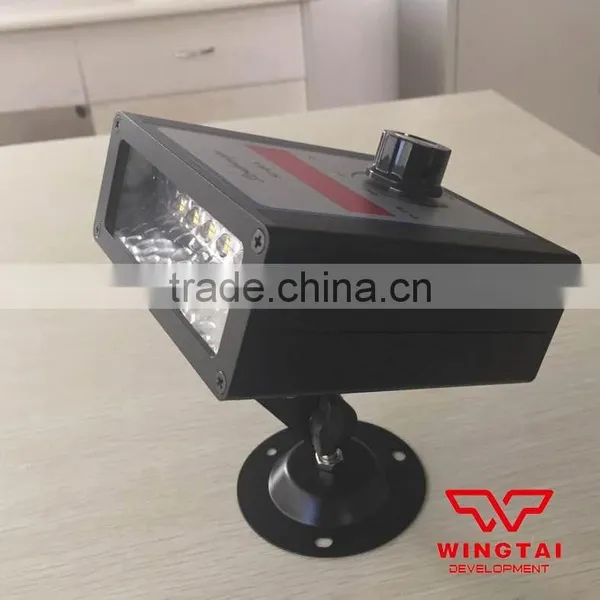

DC12V Power Portable LED Lamp Desktop Stroboscope

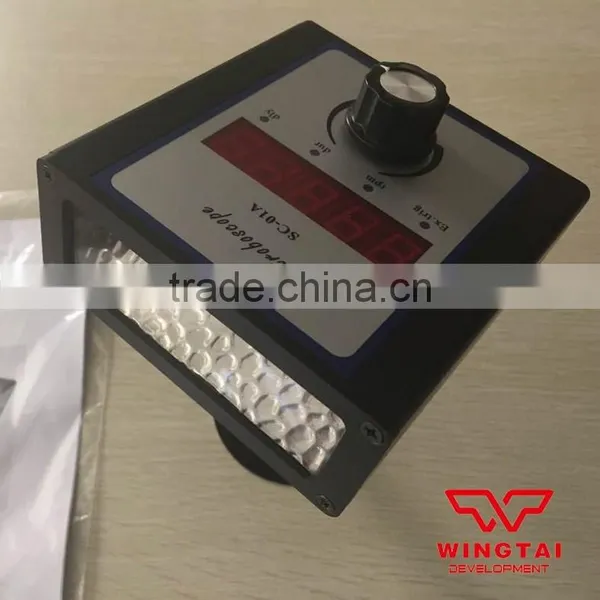

SC-01A portable stroboscope, high performance ARM processing unit, digital tube can display parameter, such as frequency, time of lasting lighting, external trigger delay. Choose internal or external trigger automatically, adjust the frequency of internal timing stroboscopic by knob switch (add or subtract frequency, frequency doubling, semi frequency doubling).
Mainly apply at the occasion of periodicity movement, such as printing machine, electrical machine speed detector, quality test machine, high speed camera shooting, etc.
Characters and Function:
1. Timing trigger FM, there is double frequency / semi frequency doubling adjusting function, quick FM.
2. In the way of external trigger, can track the image automatically, available proximity switch signals or motor encoder signals.
3. Saving parameter function, flash rate and lasting timing can be saved automatically after setting, convenient for the next time to use it.
4. Imported LED light source, downy lighting, brightness uniformity, clear image, long service life.
5. Imported coder, positioning accuracy, convenient to adjust the parameter.
6. High performance ARM processor, stable performance, precise detection.
7. One working time is adjustable, automatic stop flashing function, saving electricity, improving the lighting service life.
8. Aluminum structure, durable service.
Technical Parameters | |
Input power |
DC12V |
Internal trigger frequency range |
300~50000 RPM |
The stroboscopic last time range |
10~250µs |
External trigger frequency range |
0~12000RPM |
External trigger delay range |
0~359º |
External trigger signal range |
10~24V impulse |
Single working time setting |
0~3600s |
Specification |
113*110*46mm |
Working Mode:
1. Internal timing trigger mode
2. External proximity switch signal trigger mode
3. External motor encoder signal trigger mode
