HS-853 4 Stroboscope Lamps Multi Connected Fixed Stroboscope

HS-853  4 Stroboscope Lamps Multi Connected Fixed Stroboscope

Model No. : HS-853

Dimension : L1155*W140*H191mm ( Four units stroboscope lamps )

Net weight : 10.5kg

Net weight : 6kg

The price is decided by the stroboscope lamps 'quantity .

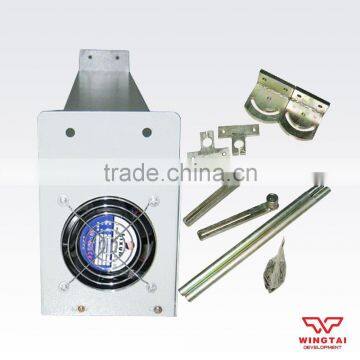

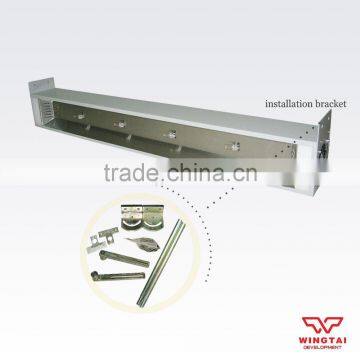

The installing pedestals need to order dividually

We have 2 units, 3 unit , 4 units , 5 units , 6 units  stroboscope lamps respectively .

Main Technical Parameters :

Power Supply: AC 220V ± 10% 50HZ ;

Power: <100W , strobe frequency 2 ~ 70HZ ;

Trigger Frequency Range: 120 ~6000 times / minute ;

Ambient light: <10 000 lux .

Function:

Stroboscope with fast frequency flashing light. In stroboscopic instrument observation high speed rotation or movement of objects, by modulating stroboscope flashing frequency, and the measured object rotating or moving close to the speed of the object to be measured and synchronization, while at high speed, but it is the slow motion or relative rest. The persistence of vision, so that the people can be easily observed by high-speed operation object status.

Application:

Widely used in packaging and printing industry, can be detected by high speed printing process color, ink color matching, die cutting, punching, folding conditions; suitable for the textile industry, can detect the spindle rotation and loom weft cloth machine yarn; suitable for mechanical manufacturing industry, observe various rotor, gear machinery manufacturing movement; suitable in chemical, optical, shipbuilding and other industries.
