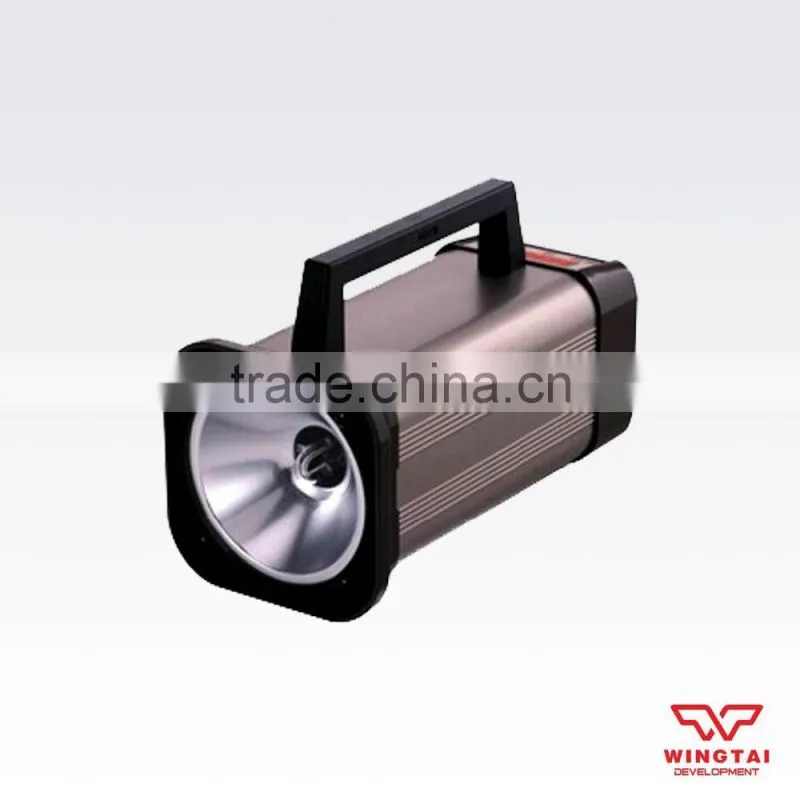

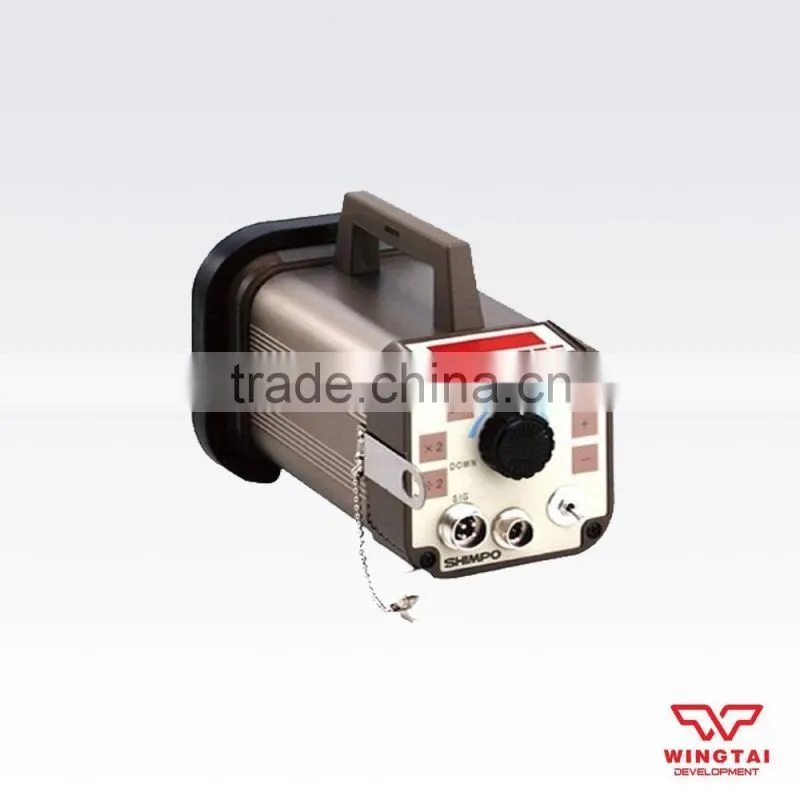

Japan SHIMPO Stroboscope DT-311N

Japan SHIMPO Stroboscope DT-311N thumbnail-1
Japan SHIMPO Stroboscope DT-311N thumbnail-2
Japan SHIMPO Stroboscope DT-311N thumbnail-3
Japan SHIMPO Stroboscope DT-311N thumbnail-4
Japan SHIMPO Stroboscope DT-311N thumbnail-5
Japan SHIMPO Stroboscope DT-311N thumbnail-6
Japan SHIMPO Stroboscope DT-311N photo-1
Japan SHIMPO Stroboscope DT-311N photo-2
Japan SHIMPO Stroboscope DT-311N photo-3
Japan SHIMPO Stroboscope DT-311N photo-4
Japan SHIMPO Stroboscope DT-311N photo-5
Japan SHIMPO Stroboscope DT-311N photo-6
US$ 1,104 - 1,120 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
SHIMPO
Model Number:
DT-311N
Contact Supplier Request Quote Chat Now
Shantou Wingtai Packing Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Shantou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name SHIMPO
Model Number DT-311N
Power Electronic
Usage Other, Still images, observation overprint



Japan SHIMPO Digital Stroboscope DT-311N



Brand :SHIMPO

Place:JAPAN

Type: DT-311N



Suitable for: printing industry, textile industry, electronic industry, such as industrial production.



SHIMPO--- A new generation of digital stroboscope structure is more concise, more complete, more convenient to carry

1.Check the rotation measuring devices, engines, gears, pulleys

2. Fan shaft, etc. eccentric exercise

3.Check the turbo engine and other high-speed operation

Japan SHIMPO DT-311N Digital stroboscope Parameter



 Technical Data:

Type

DT-311N

DT315N









Internal models

Strobe range

40.0--35,000RPM

Accuracy

Error of ± 0.01%

Resolution

0.1RPM:40.0-4,9999.9RPM

0.2RPM:5,000-7,999.8RPM

0.5RPM:8,000-9,999.5RPM

1RPM:10,000-35,000RPM

Phase shift

Use the + / - buttons (360-6 seconds)

Display update time

About  0.2 second

Output signal

Synchronization, 400msec,

pulse output 0 to +12 VDC amplitude (approximately),

4.7k Ohms impedance

amplifier / down scaler

Take 2,divided 2





External Mode

Strobe range

0.0-35,000RPM

Accuracy

±0.01% ±1

Phase shift

0-359”. 1°resolution

Delay Time

40-10,000RPM,0-2,000msec

External trigger internal signal

LO:0-0.8VDC,HI:2.5-12VDC,Pulse Width: 50usec min

Input impedance

12CV 4.7K, 0V 6.8K









Overall

Display

5 digit,10mm high,LED

Flash tube power / life

Xenon, max 10W. (Strobe 100,000,000)

Strobe duration

10-40usec

Photoreceptors Power

12VDC(40mA)

Low battery display

Show “L”

Power requirements

230VAC,±10%60/50Hz,30VA

Built-in Battery

Operate temperature

0-40°C

Weight

1.2kg

2kg

Dimension

185×120×120mm

250×120×120mm

Standard Equipment

Hand shank

Hand shank and AC charger



Japan SHIMPO DT-311N

Japan SHIMPO Stroboscope DT-311N





Japan SHIMPO DT-315N

Japan SHIMPO Stroboscope DT-311NJapan SHIMPO Stroboscope DT-311N
