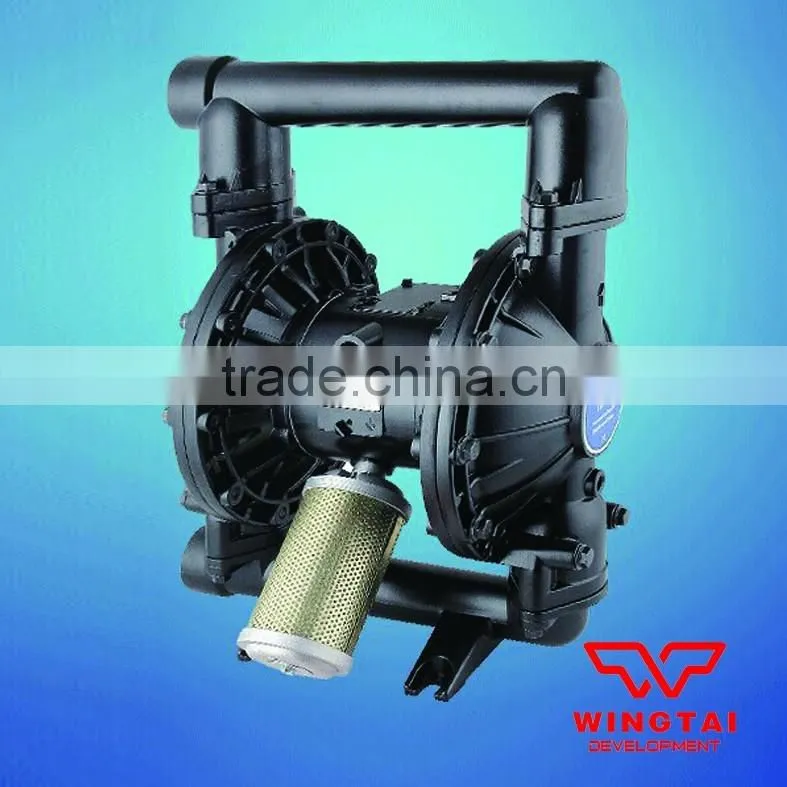

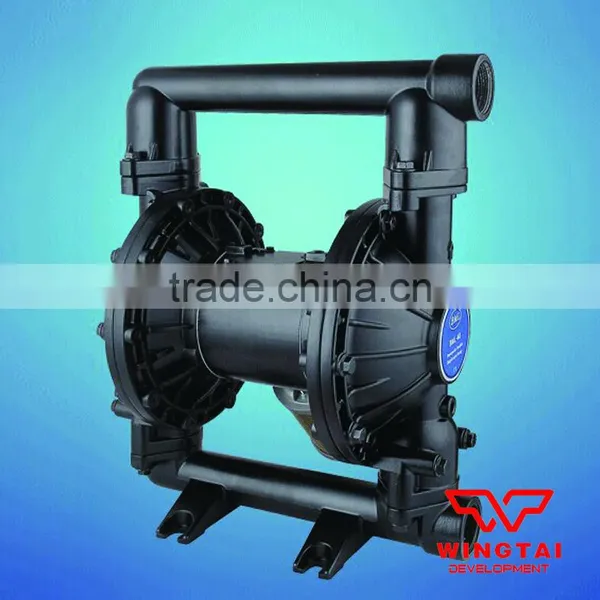

1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40#

1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# thumbnail-1
1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# thumbnail-2
1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# thumbnail-3
1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# thumbnail-4
1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# thumbnail-5
1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# thumbnail-6
1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# photo-1
1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# photo-2
1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# photo-3
1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# photo-4
1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# photo-5
1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40# photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Wingtai
Model Number:
40#
Theory:
Reciprocating Pump
Contact Supplier Request Quote Chat Now
Shantou Wingtai Packing Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Shantou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Wingtai
Model Number 40#
Theory Reciprocating Pump
Structure Diaphragm Pump
Usage Air Pump
Power Pneumatic
Standard or Nonstandard Standard
Fuel Other, Pneumatic
Pressure Other, 0.2~0.8MPa
Application Other, Circulate ink and glue, Water-based ink printing, gravure , flexo pringting machine etc.

1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40#



Product Description



Description:

Pneumatic diaphragm pump is a new conveying machine, which is the latest novel kind of pump. Compressed air as the power source, it can be use in any corrosive liquid, liquid with particle, high viscosity, easy volatile, inflammable, highly toxic liquid.



There are four materials in Pneumatic Diaphragm Pump: plastic, aluminum alloy, cast iron and stainless steel. The diaphragm pump will adopt different materials, such as Buna-N rubber, Chloroprene rubber, fluororubber, PTFE, according to the different liquid and to meet customers’ need. Place in all kinds of special occasion; use to pumping the medium which the general pump cannot do so. And it is gain a satisfied effect.



Thus the above features that pneumatic pump possessed, this kind of pump is gradually invaded other pump market when it is born and cover a part of it. Such as painting, ceramic industry, printing industry, the pneumatic pump has an absolute dominant position.



Feature



Features:

  1. Because it is using air as power, the diaphragm pump does not heat and produce sparks; suitable for use in flammable and explosive environment.
  2. Use PTFE diaphragm, can be used for chemical properties relatively volatile liquid, corrosive medium.
  3. Diaphragm Pump can pump particle liquid;
  4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid.
  5. Diaphragm Pump is small, light and easy to move.
Application



Applicable industries:

 Used for coating, circulation, transmission of water-based ink printing machine, gravure printing, flexo printing and the ink on the compound machine, glue, and the liquid with particle, inflammable liquid.

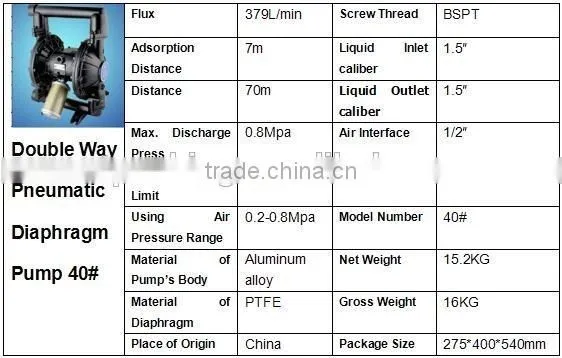

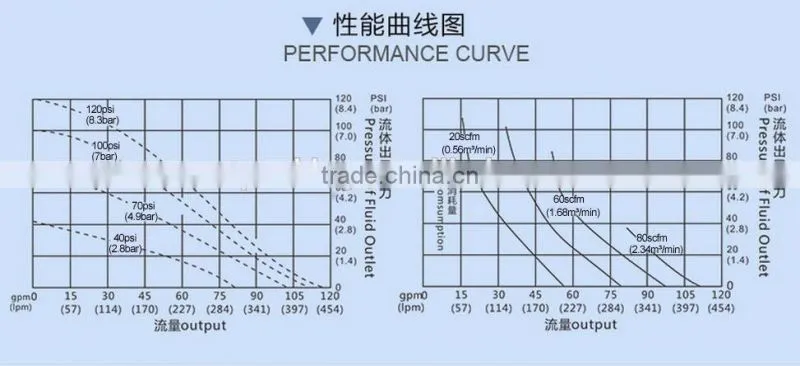

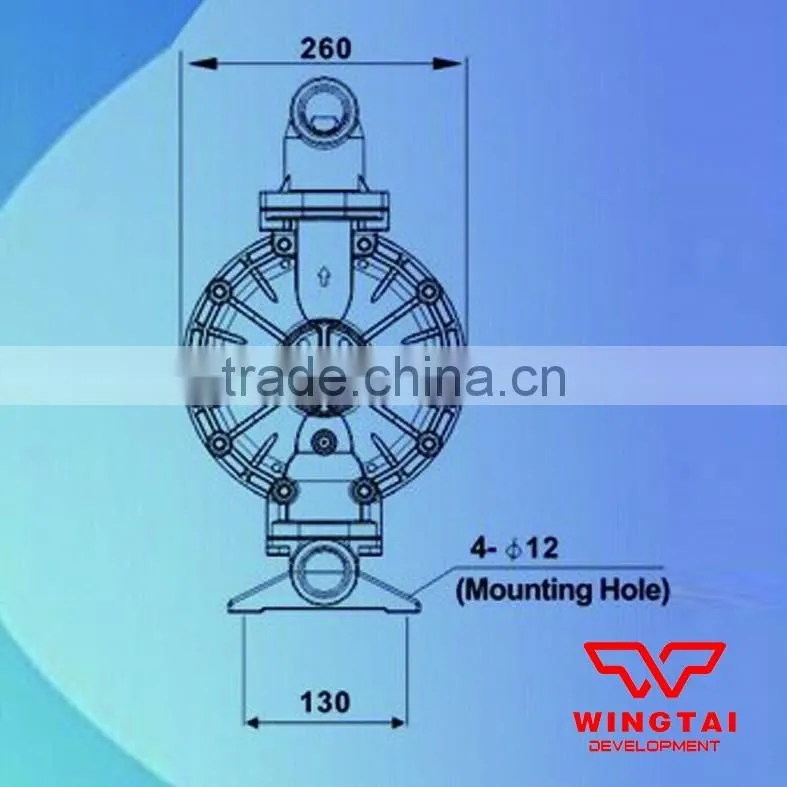

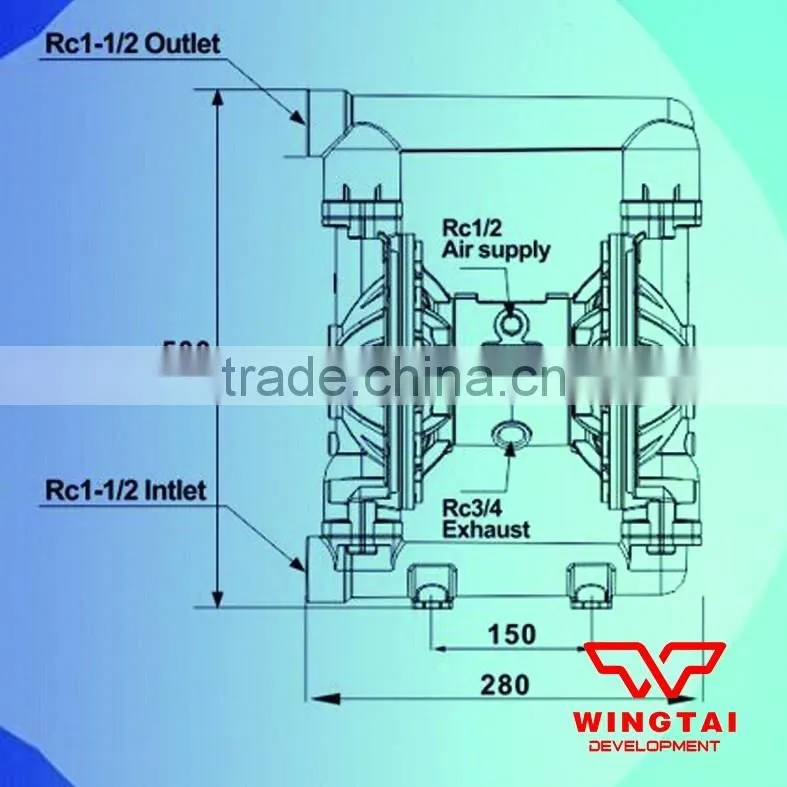

Technical Data



1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40#

 1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40#

More Models

Please Click the Headline. View More...



Double Way Pneumatic Diaphragm Pump 10#

Double Way Pneumatic Diaphragm Pump 15#

Double Way Pneumatic Diaphragm Pump 20#

Double Way Pneumatic Diaphragm Pump 25#

Double Way Pneumatic Diaphragm Pump 40#

Double Way Pneumatic Diaphragm Pump 50#



 For more product's info, please kindly contact with us.





Product Display

 1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40#1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40#1 1/2'' High Pressure Air Operated Double Diaphragm Pump 40#
