Home > Products > Laboratory Test Instruments > Single-groove Fineness Gauge
Single-groove Fineness Gauge
- 3000 Piece / Pieces per Month
- Shantou/Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wingtai | |
| Model Number | BGD 241-0/-1 |
Product Description

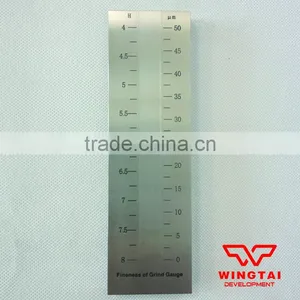

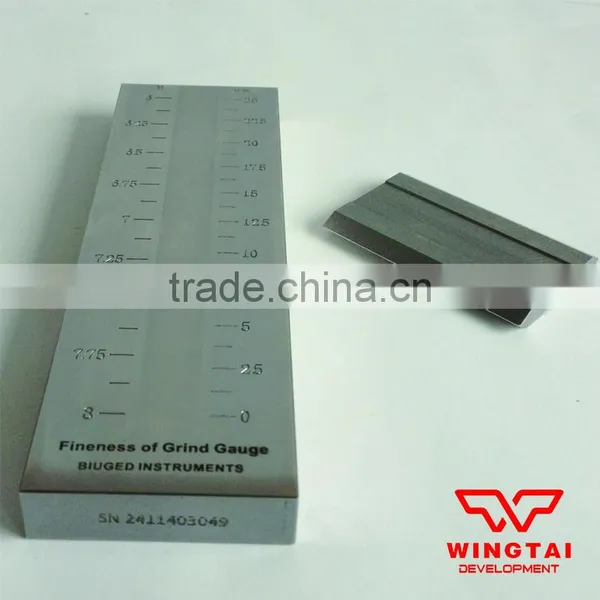

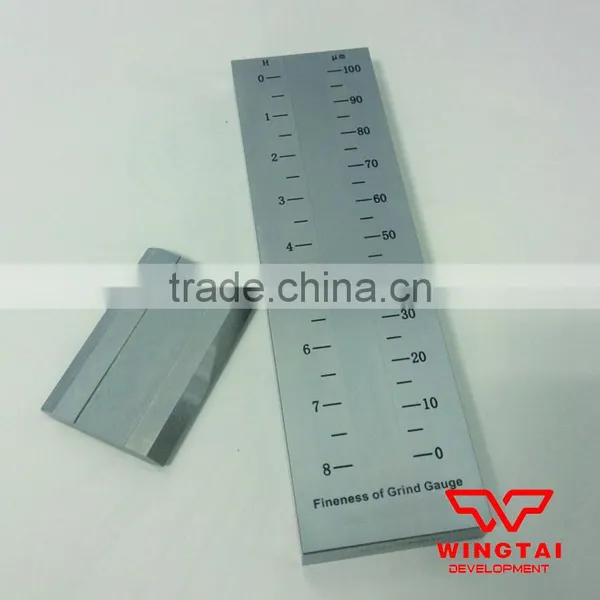

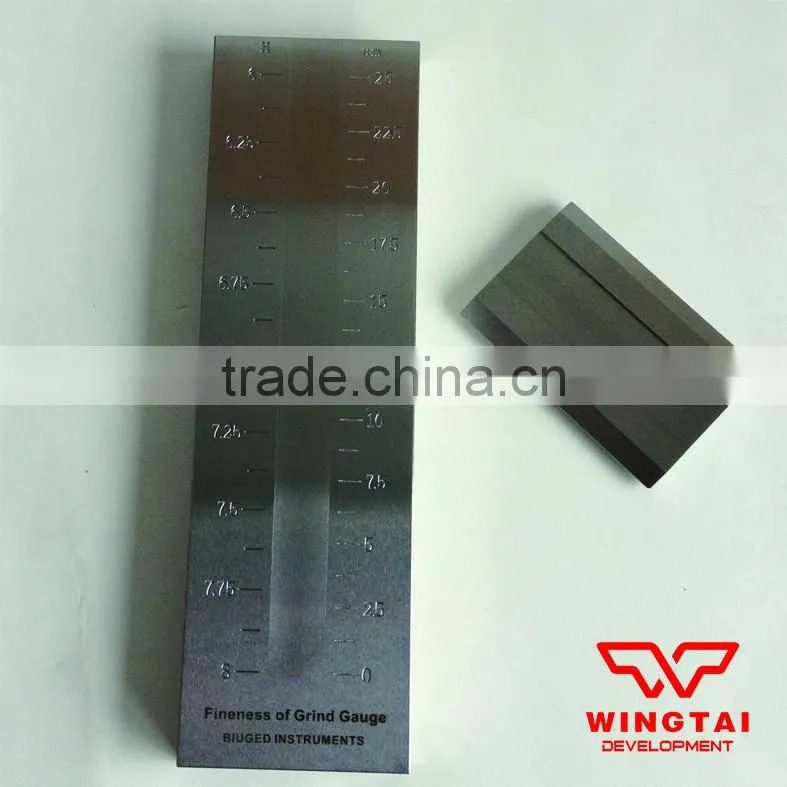

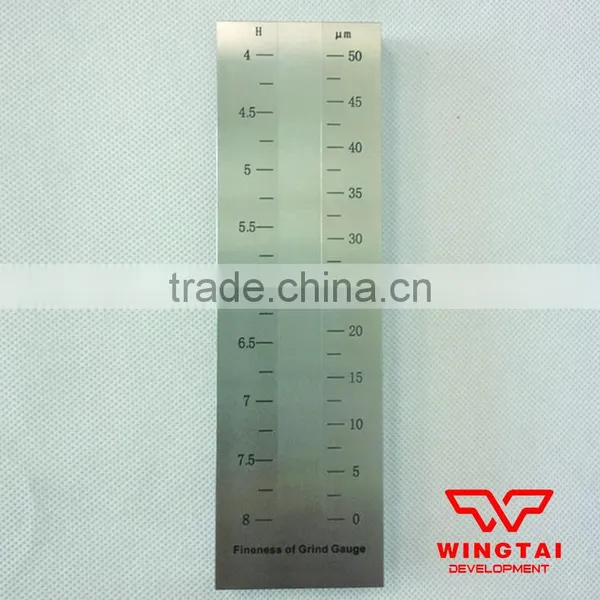

Single-groove Fineness Gauge
Description:
Scraper fineness gauge is made in strict accordance with GB / T 1724, GB/T6753.1, ISO1524 standard. It mensurates paint particles’ size and particle distribution in the dope, printing ink and other liquid to control quality during producing, storage and using.
Scraper fineness gauge is widely used in many industries, such as paint, plastic, printing ink, paper, ceramic, medicine, food and so on.
The particle distribution’s unit is um or Hegman, from 0-8 Hegman. 0 Hegman=100 um, 4 Hegman=50 um, 8 Hegman= 0 um.
Using: Put some particles on the deeper groove, then use scraper to scrape them from deeper to low groove. We can read the particle’s size on the point there are more roughness particles.
Technical parameters:
Material: High Wear and corrosion resistance of stainless steel (a standard scraper)
Match Accessories: BGD 1250 --- small scraper (for BGD 241)
BGD 1251 --- Large scraper (for BGD 242, BGD 243, BGD 244)
Model Number | Groove Size (L*W) | Measure Range | Block Size | Scale Value | Display Unit | Groove quantity | |
Single Groove Fineness grind gauge | BGD 241/0 | 140*12.5mm | 0-15μm | 170×50×12mm | 0.625 | μm | 1 |
BGD 241/1 | 0-25μm | 170×50×12mm | 1.25 | μm | 1 | ||
BGD 241/2 | 0-50μm | 170×50×12mm | 2.5 | μm | 1 | ||
BGD 241/3 | 0-100μm | 170×50×12mm | 5 | μm | 1 | ||
BGD 241/4 | 0-150μm | 170×50×12mm | 7.5 | μm | 1 | ||
Double Groove Fineness grind gauge | BGD 242/0 | 140*12.5mm | 0-15μm | 175×65×12mm | 0.625 | μm Hegman (Mils) | 2 |
BGD 242/1 | 0-25μm | 175×65×12mm | 1.25 | 2 | |||
BGD 242/2 | 0-50μm | 175×65×12mm | 2.5 | 2 | |||
BGD 242/3 | 0-100μm | 175×65×12mm | 5 | 2 | |||
ISO Fineness grind gauge | BGD 243/1 | 140*12.5mm | 0-25μm | 175×65×12mm | 1.25 | μm | 1 |
BGD 243/2 | 0-50μm | 175×65×12mm | 2.5 | μm | 1 | ||
BGD 243/3 | 0-100μm | 175×65×12mm | 5 | μm | 1 | ||
Wide groove Fineness grinding gauge | BGD 244/1 | 140*37mm | 0-25μm | 175×65×12mm | 1.25 | μm | 1 |
BGD 244/2 | 0-50μm | 175×65×12mm | 2.5 | μm | 1 | ||
BGD 244/3 | 0-100μm | 175×65×12mm | 5 | μm | 1 | ||
