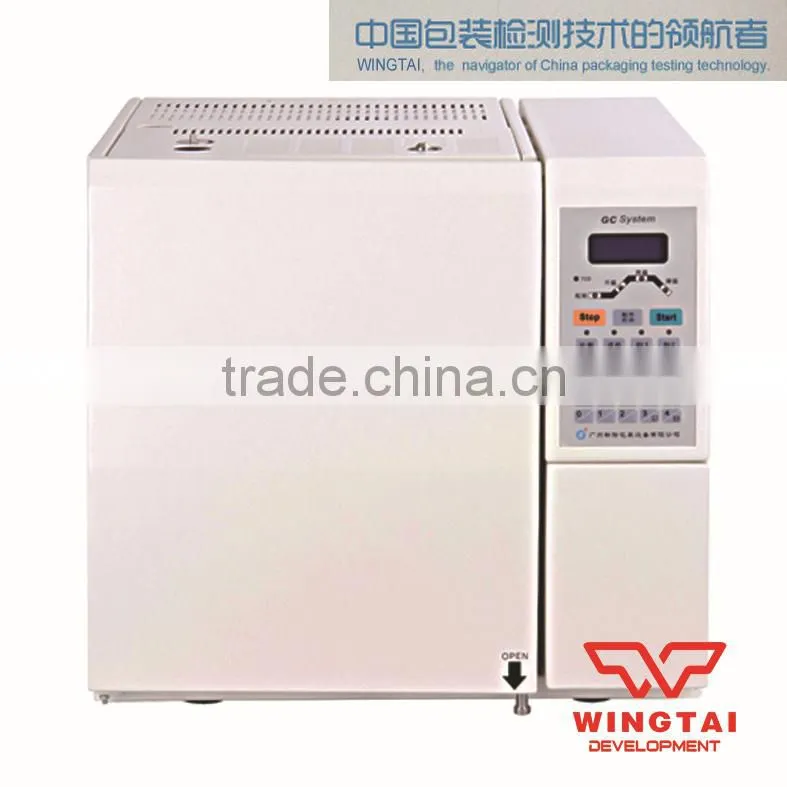

GC-9801 Lab Instrument Gas-liquid Partition Chromatography(GLPC)

Name: GC-9801 Lab Instrument Gas-liquid Partition Chromatography(GLPC)
Brand: Wingtai
SKU: 138340733

US$ 7,886 - 7,910 MOQ: 1 Set

Key Specifications

Brand Name:

Wingtai

Model Number:

GC-9801

Shantou Wingtai Packing Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/ Shantou

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Wingtai

Model Number GC-9801

GC-9801 Lab Instrument Gas-liquid partition chromatography(GLPC)

Gas Chromatography(GC) & Vapor-phase chromatography (VPC)

Technical Data

Hydrogen flame ionization detector (FID)
Limit of detection (LOD)	Mt≤1×10-11g/s (palmityl), baseline shift ≤1×10-12A/0.5h ; Noise≤1×10-13A
Thermal conductivity detector (TCD)
Sensitivity	S≥2500mv.ml/mg (benzene), baseline shift ≤60μV/0.5h; Noise≤10μV
Electron capture detector (ECD)
Limit of detection (LOD)	M≤2×10-13g/ml (r-666)
Flame photometric detector (FPD)
Limit of detection (LOD)	Ms≤5×10-11g/s (thiophene), Mp≤1×10-11g/s (ethyl-1605)
Nitrogen and phosphor detector (NPD)
Limit of detection (LOD)	Mn: 1×10-13g/s; Mp: 1×10-13g/s (ethyl-1605)
Temperature Control Range	Room temperature: +10℃~400℃
Temperature accuracy	≤0.1℃
Temperature speed	0.1~40℃/min
Dimension	460mm440mm430mm

Features

Features:

Practical and economical, with high performance at lower price.
Integrated design, easy to install and maintain.
Can connect to chromatographic data workstation, work efficiency enhanced.
Sample injection port: packed column and capillary column are optional.
Large column chamber (300*300*200mm) for complicated tasks, different chromatographic columns and extended sample types. Excellent noise reducing system, working quietly.
One-way, two-way or three-way gas injection. Six-way valve, blowing-back and pre-cutting devices are optional. New voltage stabilization system to ensure the stability.
Can install pyrolyzer to make double eight-step program of temperature rise.
Built-in computer, user interface displays data of various temperatures.
Overheating protection temperature can be set within 400°, eight-step program of temperature rise
Speed 0~40℃/min(increase 0.1℃/min), temperature control accuracy 0.1%
Overheating protection function, can set the temperature within 400℃,double protections: program protection and electric circuit protection.

Configuration:

1. Standard equipment: main machine, installation fittings, N2000 working station, chromatographic column,

headspace bottle, headspace cover, sealing plier, sample injector, calibration mixed solvent

2. Optional equipment(purchasing): thermal conductivity detector (TCD), electronic capture detector (ECD),

flame photometric detector (FPD), nitrogen and phosphor detector (NPD), chromatographic column.

Application

Basic Application	Residual solvent	Suitable for residual solvent analysis testing of all kinds of plastic film, paperplastic composite film, which is for foods, medical packaging.
	Purity analysis	Suitable for purity analysis of all kinds of solvent which is for packing and printing used.
	Water analysis	Suitable for solvent water analysis of packing and printing industries.
Expanding application	Analysis of vinyl chloride monomer	Suitable for analysis the content of VCM
Expanding application	Autoinjection	Can realize the automatic working, reduce the personal error
