Home > Products > Laboratory Test Instruments > GBB-A Lab Instrument For Various Plastic Films Heat Sealing Instrument

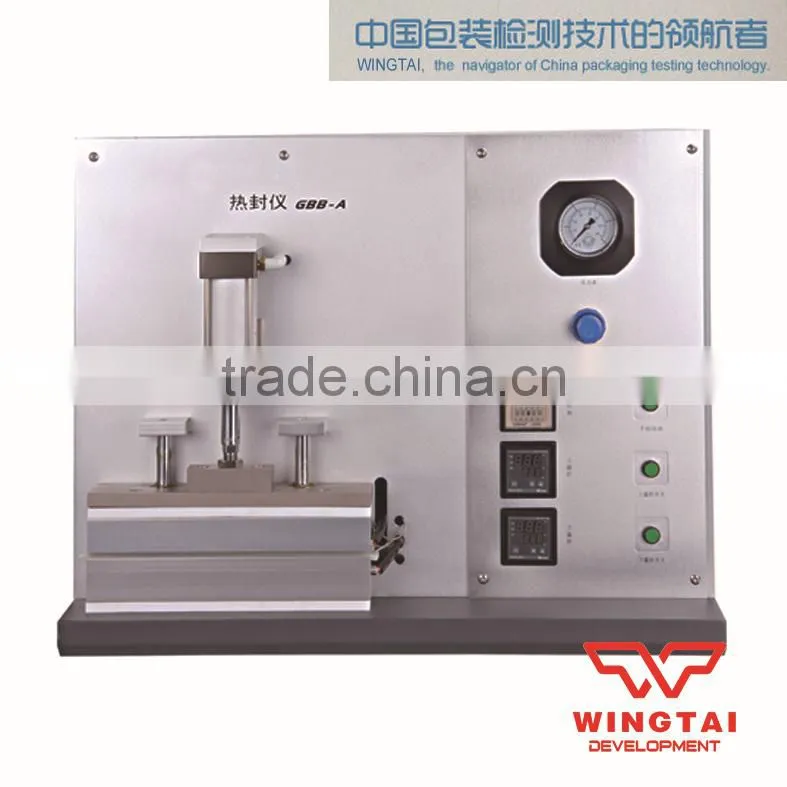

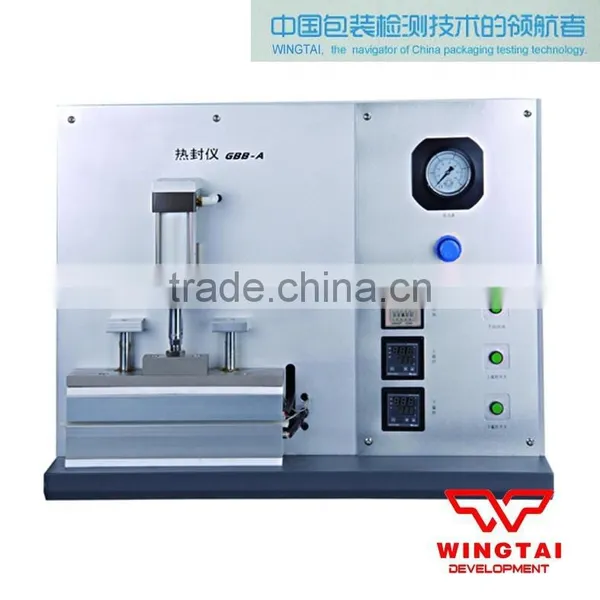

GBB-A Lab Instrument For Various Plastic Films Heat Sealing Instrument
- 2000 Set / Sets per Month
- Shenzhen / Shantou
- Credit Card
Product Details
Brand Name: | Wingtai | Model Number: | GBB-A | Power: | Electronic |
Usage: | Other, Heat Sealing |
Product Description
GBB-A Lab Instrument For Various Plastic Films Heat Sealing Instrument
Function:
To test the temperature, pressure, time and strength for heat sealing of various plastic films, composite film, aluminum foil and so on, widely used in industries of plastic films, food, pharmaceuticals, inspection agency, research institute and so on.
Reach the standards:
QB/T 2358, ASTM F 2029, YBB 00122003
Heat sealing temperature | Room temperature ~300℃ |
Temperature accuracy | +/- 0.1℃ |
Heat sealing time | 0.01s ~ 99.99h |
Heat sealing pressure | 0.05~0.8MPa |
Heat sealing area | 300*5.5mm, smooth, (lower blade with silicon pad) can customize size |
Heating mode | Double heating, Automatic or manual, External air cylinder |
Instrument size | L700*B400*H540mm |
Power supply | 220V, 50 Hz |
Double temperature, double control, double display; External air cylinder, high precision component, which are imported and famous brand. Export-oriented setting, industrial design appearance. Excellent performance in film sealing temperature test, speed of heat sealing and strength, etc... External air cylinder, with a variety function of switching, optional point sealing, line sealing and so on, can be upgraded anti-sticking function.
Configuration:
Main machine, foot switch, power cable, hex socket, cross screwdriver
(Note: air source is provided by user. )
Base application | Film material-- smooth surface | Suitable for heat sealing test on all kinds of plastic film, plastic laminated film, paper-plastic composite film, co-extrusion film, aluminum plating film, aluminum foil, aluminum foil composite film. Smooth surface, sealing width can be designed by user’s request. |
Film material--pattern surface | Suitable for heat sealing test on all kinds of plastic film, plastic laminated film, paper-plastic composite film, co-extrusion film, aluminum plating film, aluminum foil, aluminum foil composite film. Heat sealing area can be designed by user’s request. | |
Expanding application | Jelly Bowl Cover (Note: Need to customize accessories.) | |
Plastic tube |
