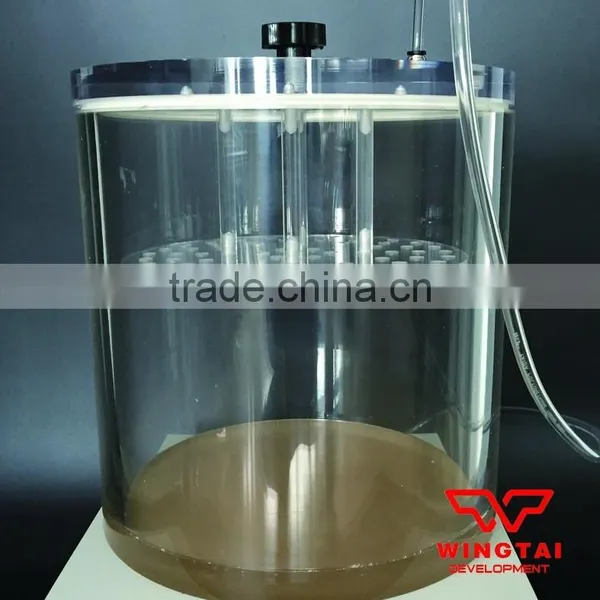

Flexible Packaging Seal and Leak Tester
Description
Suitable standard:GB/T 15171-1994 flexible Sealing performance test methods,
ASTM D 3078-94 Measuring the Flexible leakage through the exhaust gas Standard Test Method
Technical parameters
Vacuum degree: 0 ~ 100kpa
Vacuum Accuracy: ± 1%
Vacuum holding time: 0.1 ~ 60min
Inlet pressure: 0.25 ~ 0.6Mpa (2.5 ~ 6kgf/cm2)
Vacuum chamber size: Ø300 x 350mm
Functional use:
Suitable for food, pharmaceutical, cosmetic and other industries flexible packages and plastic bottles, cans seal test.Through the test can effectively compare and evaluate the flexible packaging sealing process and sealing performance .
Instrument principle:
Compressed air as a power source,a vacuum generator for the energy conversion element,To computer-controlled high-precision pressure sensor to achieve vacuum speed, high precision, can be digitally set the parameters make the test procedures and other excellent performance
