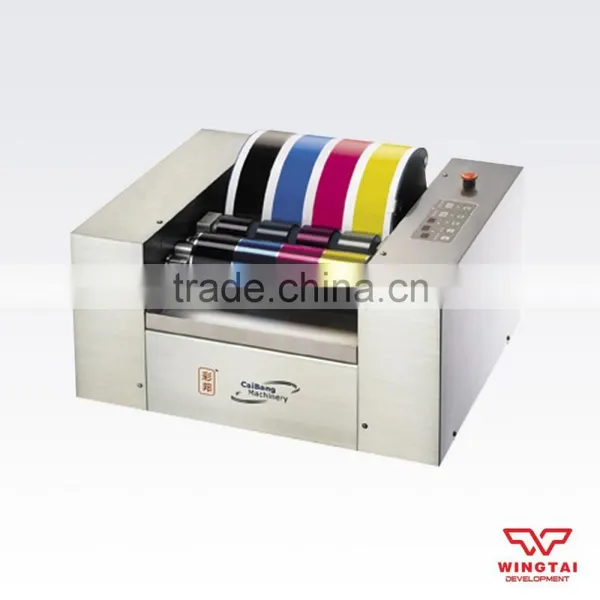

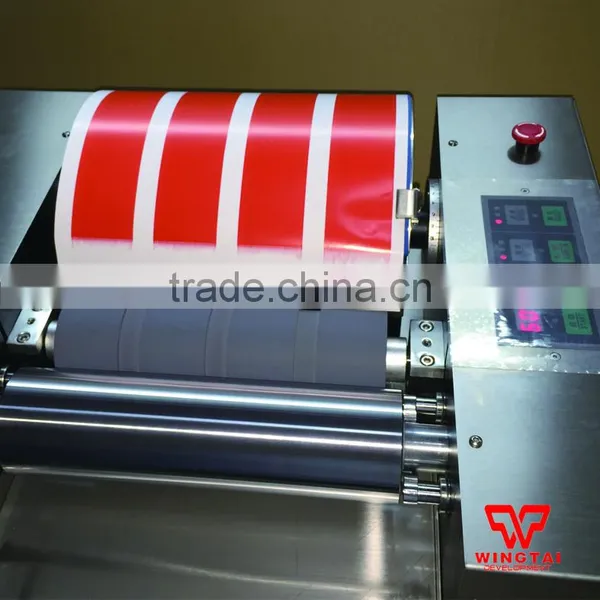

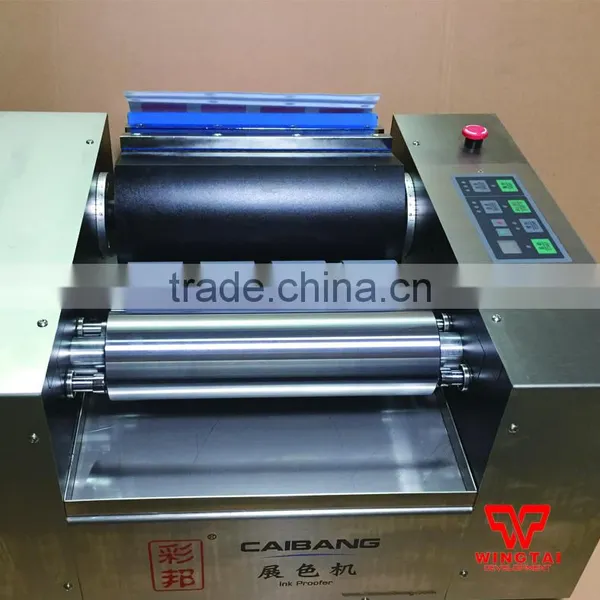

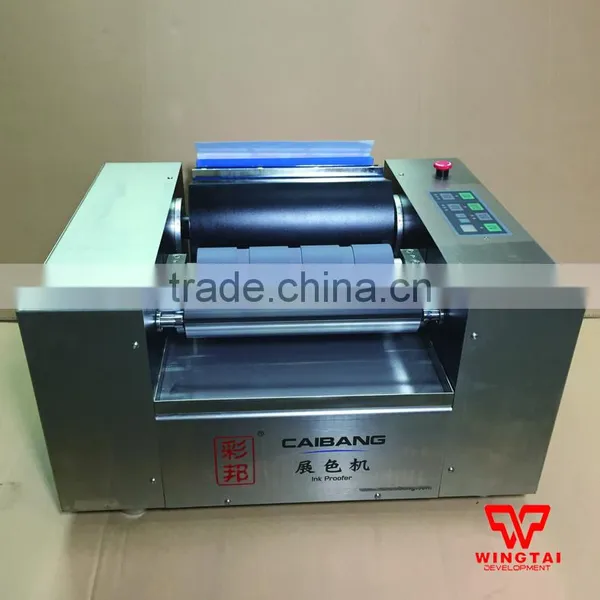

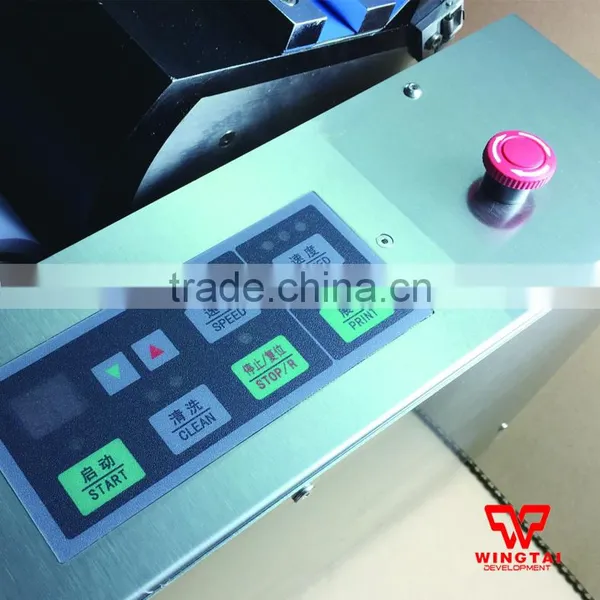

CB225A Automatic Printability Tester
Technical Parameters :
Input voltage |
220V , 50HZ (110V,60HZ available ) |
Power |
250W |
Effective area of ink color bar optional |
40X210mm (4 strip) or 60X210mm (3 strip) or 100X210mm (2 strip) |
Exhibition material size |
270X250mm |
Ink distributing method |
Automation |
Ink distributing speed |
400,550,700 r / min ( Three gears adjust speed directly ) (Frequency control of motor speed 0~1000 r/min) |
Printing speed |
10, 15, 20 r / min ( Three gears adjust speed directly ) (Frequency control of motor speed 0~30 r/min) |
Ink distributing time |
15~ 99 seconds |
Rubber roller size |
67X229mm (Maximum color spreading area 229X210mm) |
Rubber roller optional |
Ordinary ink roller or UV ink roller |
Instrument Dimensions |
525x430x280mm |
Machine Net Weight |
75KG |
Feature :
1.Automatic ink uniforming (inking pressure, time, speed can be adjusted);
2.The color development velocity, pressure can be adjusted;
3.The multi-stage color development roller structure
which can show color 4 color bars (different thickness or a different hue of ink);
<![if !supportLists]>4.<![endif]>With the quantitative instrument used to precisely control the color bar layer thickness,
color production system database is very convenient;
5.Easy to operate, easy to clean;
6.Precision instruments and durable.
Applicable Printing Inks:
Offset and letterpress ordinary or UV ink UV flexo ink.
