Help CenterPrinting Static Eliminator
Related Products

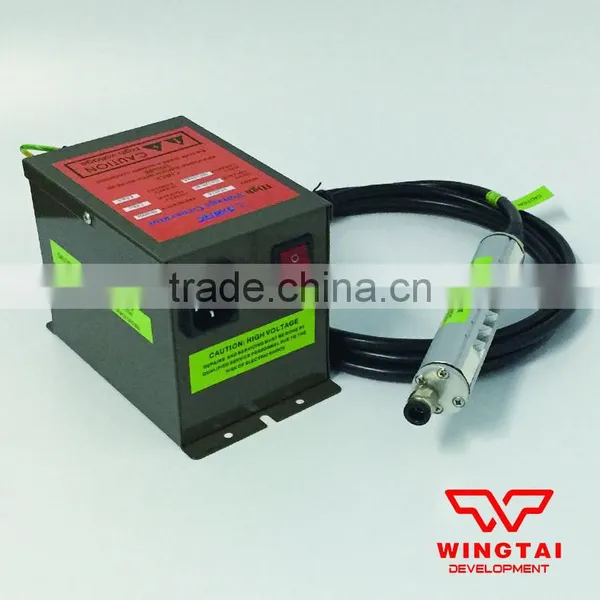

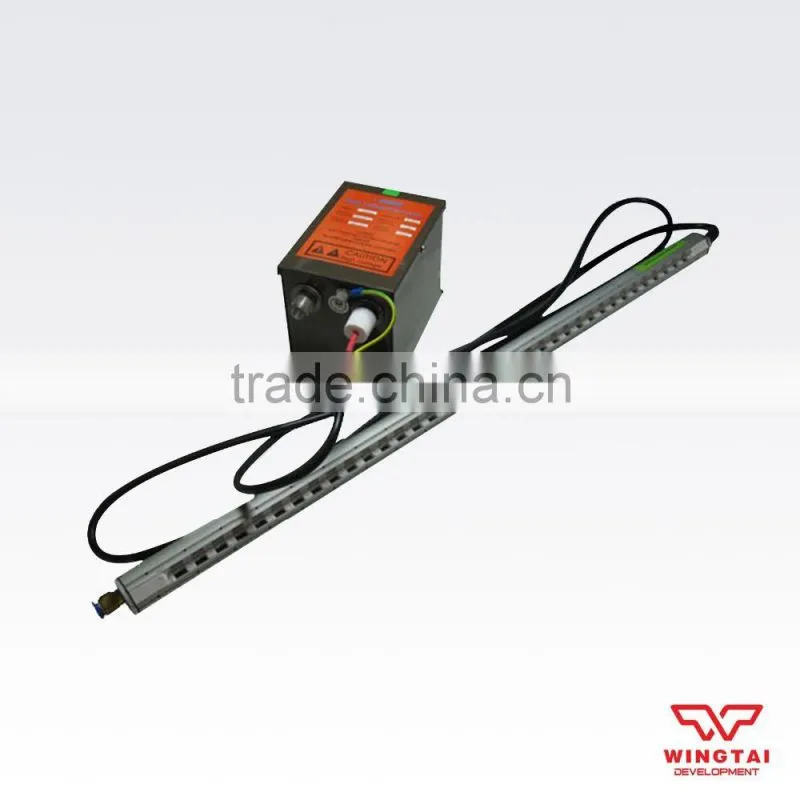

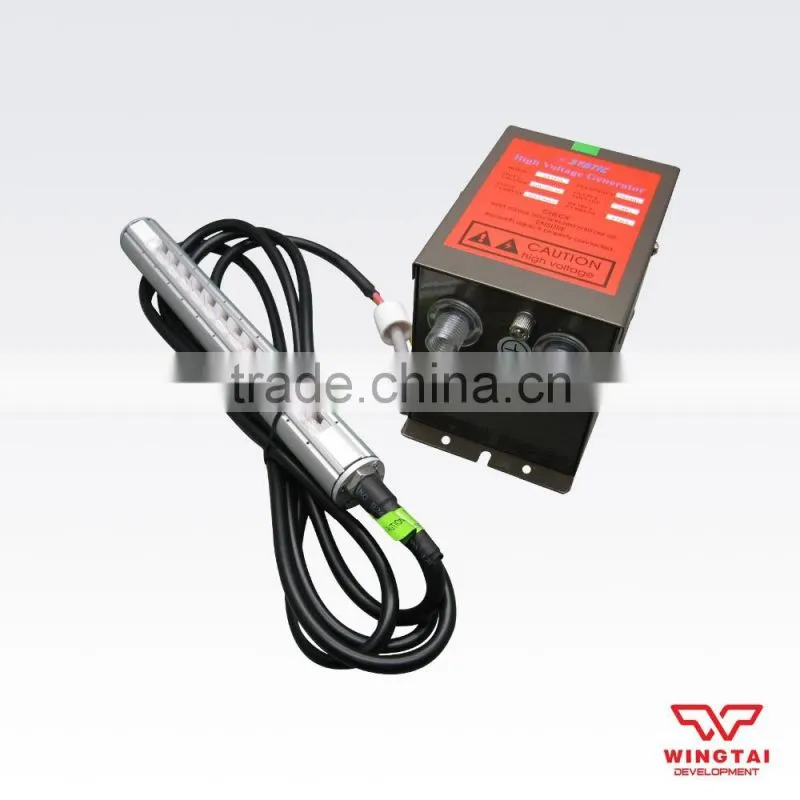

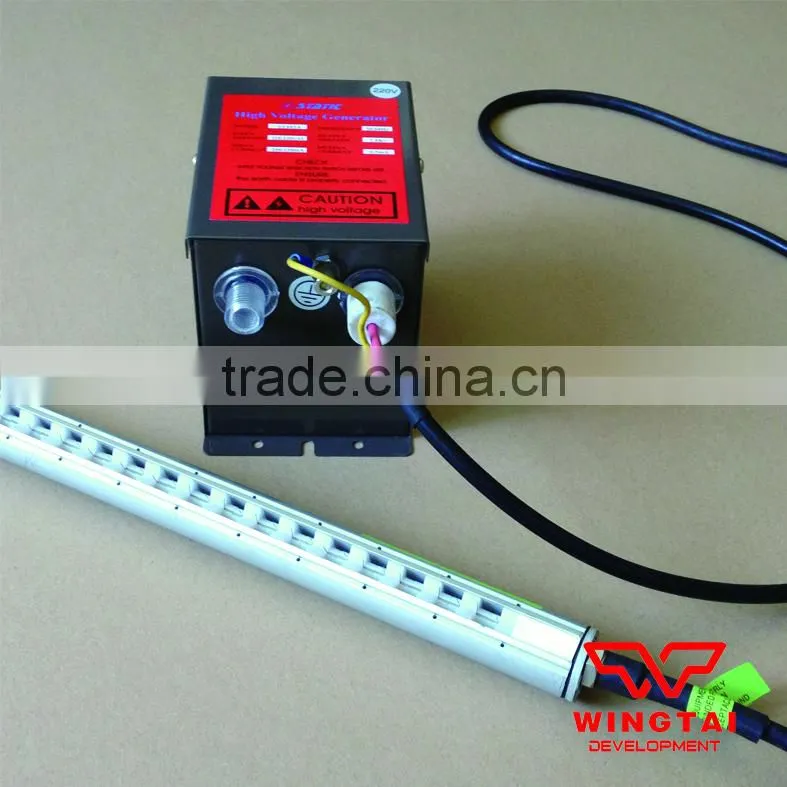

Printing Static Eliminator
For Gravure Printing Machine, Laminating Machine, Bag Making Machine ,Splitting Machine
Working Principle:
The antistatic ion bar can produce plenty of positive & negative ions, which can neutralize the products’ ions that go through the ion radiation area. When the products surface with negative ion, it will attract radiation area’s positive ion; when the products surface with positive ion, it will attract radiation area’s negative ion, so that static on products surface will be neutralized, and then eliminate static electricity.
Featurers :
1. Use hard aluminum alloy material, beautiful appearance;
2. No electric shock design, more safe;
3. Built-in an unique high air volume tube;
4. Neutralize static electricity quickly
5. Stable and safe working performance
6. Easy and convenient installation
7. The ion bar has good ground protection
8. Ion bar should be equipped with a 7.0 KV generator
Technique Parameters :
Input voltage |
220V~230V/50HZ (Special:110V~120V/60HZ If you need the special voltage, please contact online or leave messages.) |
|
Output voltage |
7.0KV |
|
Current consumption |
0.52mA/M |
|
HV Cable Length |
3m(the longer cable pls contact online) |
|
Working temperature |
0~50℃ |
|
Anti-static time |
≤2S |
|
Anti-static distance |
Within 100mm |
|
weight |
1.68Kg/M |
|
Air pressure |
5-7Kg |
|
Airflow rate |
10m/sec |
|
Ion bar’s length |
Customized |
|
Suitable Industries:
It is suitable for anti-static in a flat occasion like thin material processing, slitting, coil stock, etc.
Safety indication:
1. operating point must connect ground well
2. do not use the bar under inflammable and explosive environment
3. do not repair by yourself
Cleaning method
After using for some time, there is dirt retention on bar’s ion needle and copper tube wall, it must clean at regular intervals, and must turn off power supply when clean.
