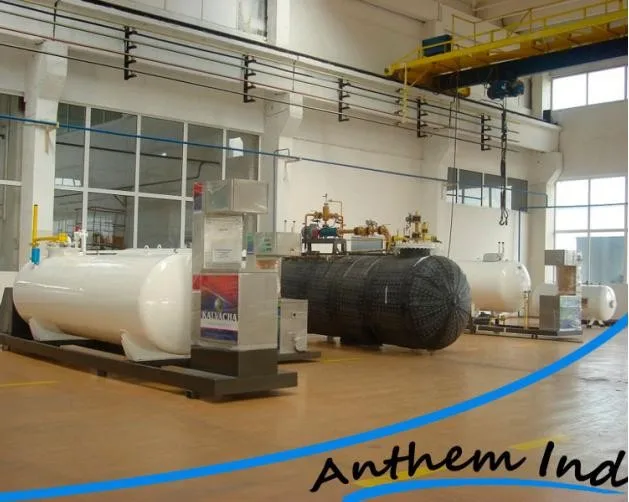

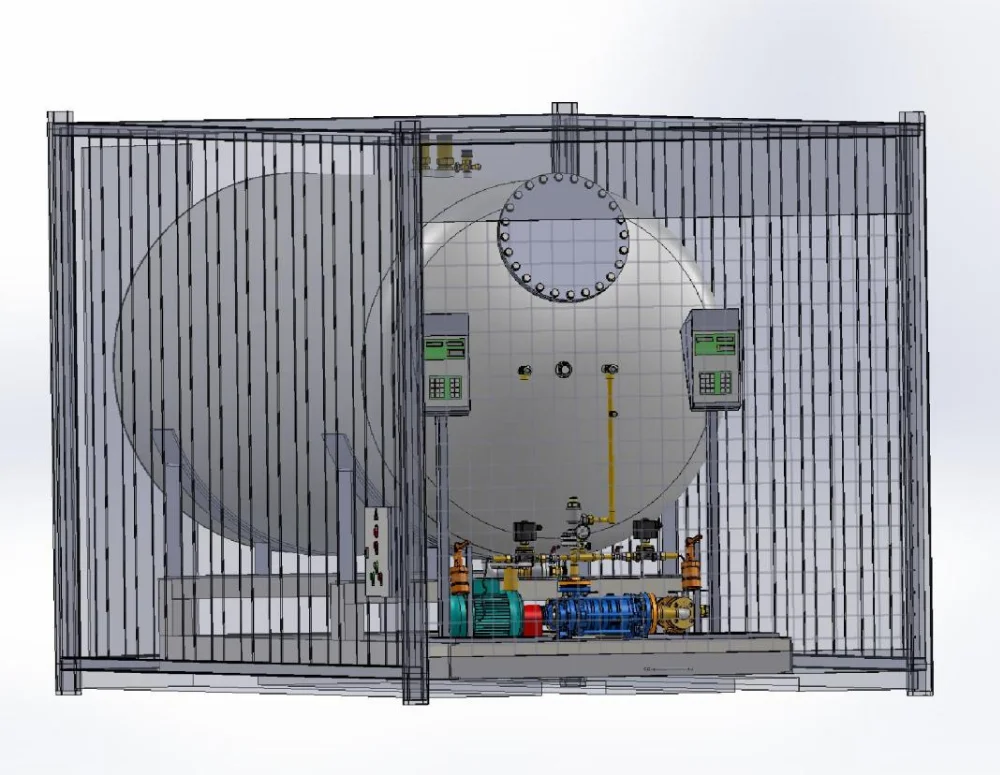

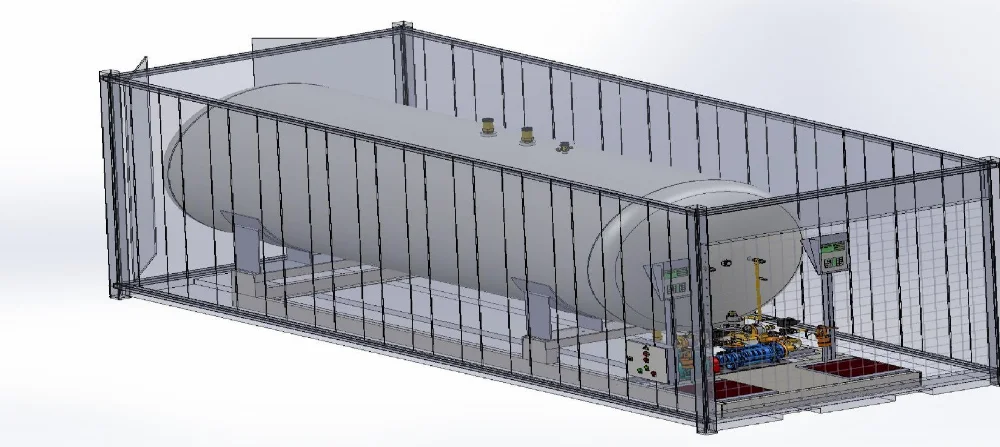

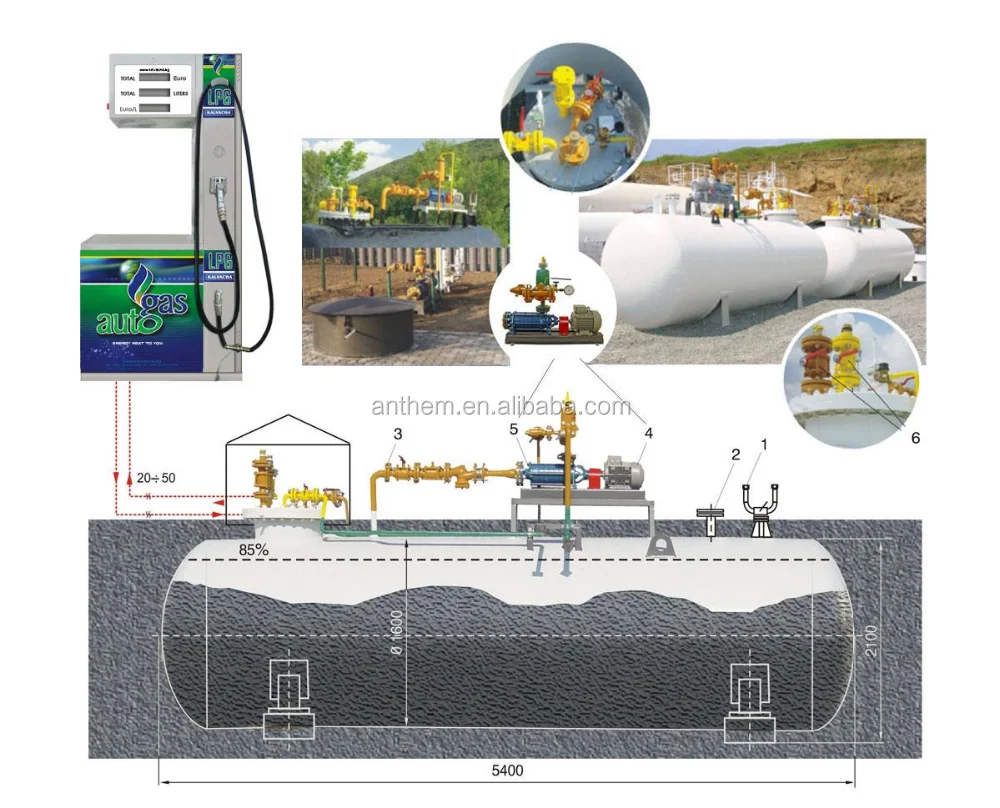

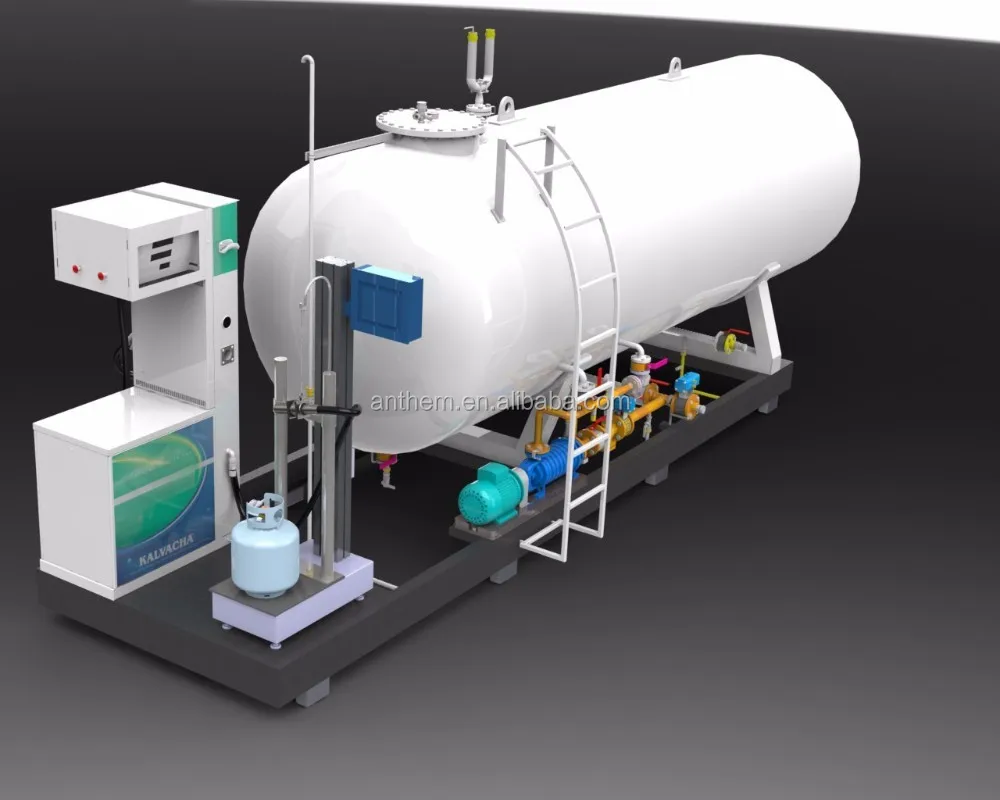

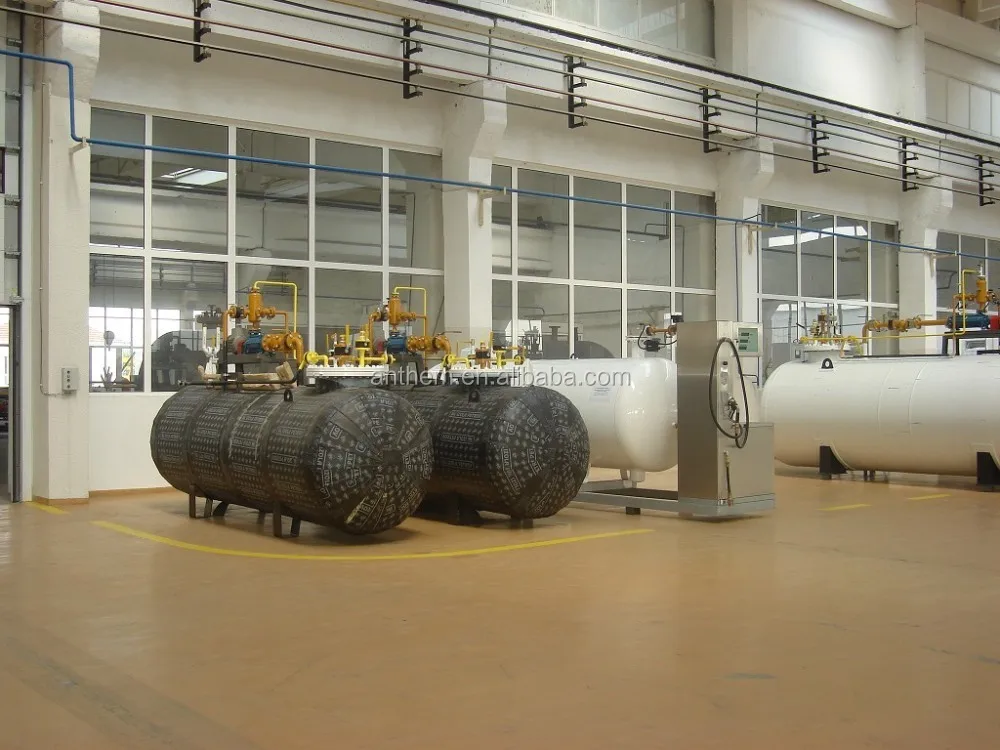

Recommended Underground LPG Filling Station

Product Application

Main Features

Work parameters of the station:
- Maximum work pressure 1.7 MРа;
- Working temperature from -40° to +80°С
- Geometrical volume of the tank from 5 m³ to 30 m³

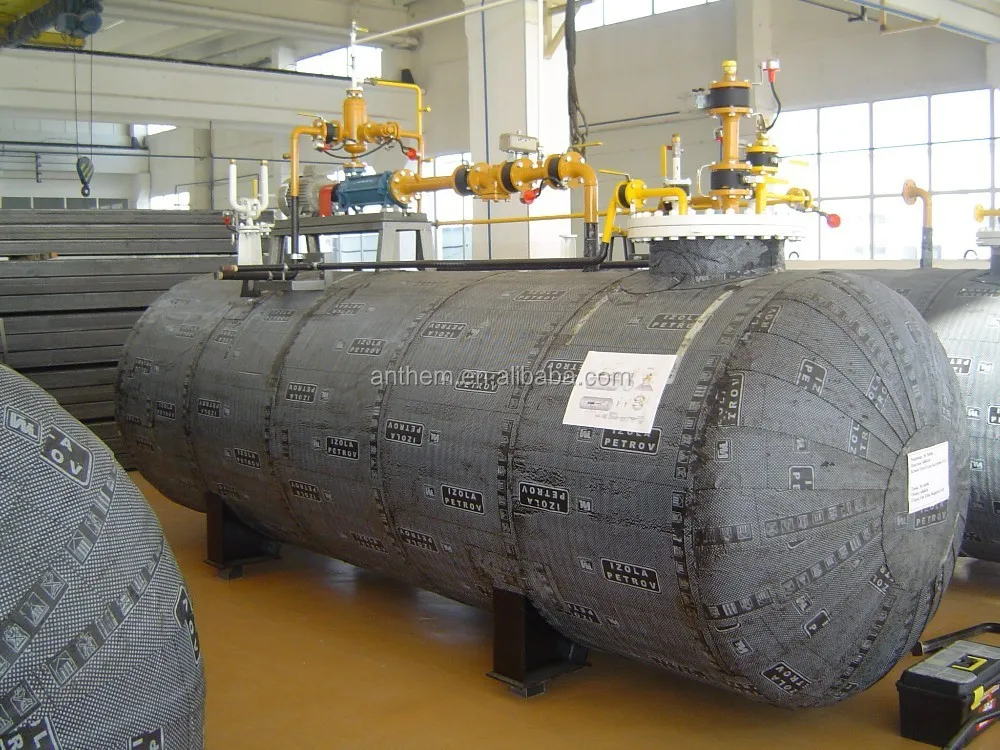

Tank specifications:
A full range of LPG tank equipment (safety valves, level gauges, multivalve, angular valves, filling valves) is
included.
Working pressure – from 15,6 to 17,65 bar, depending on the local normative requirements of the country;
Working fluid: propane-butane (group 1 - dangerous fluids)
Working temperature: -20 to +50 C;
Tank's category: IV, according to PED 97/23

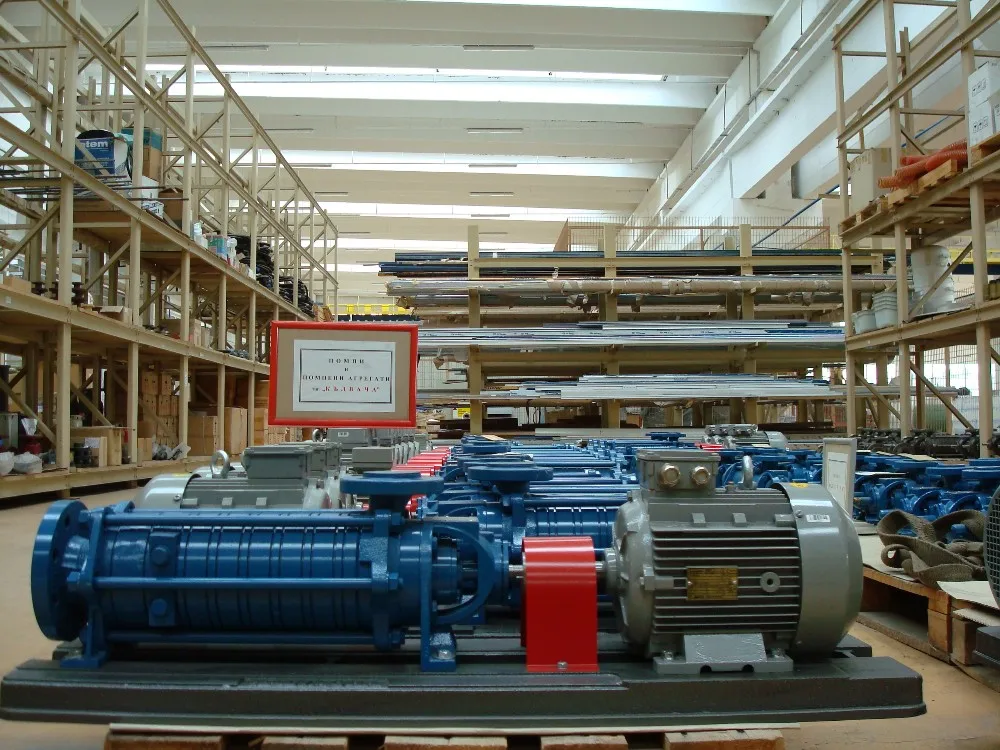

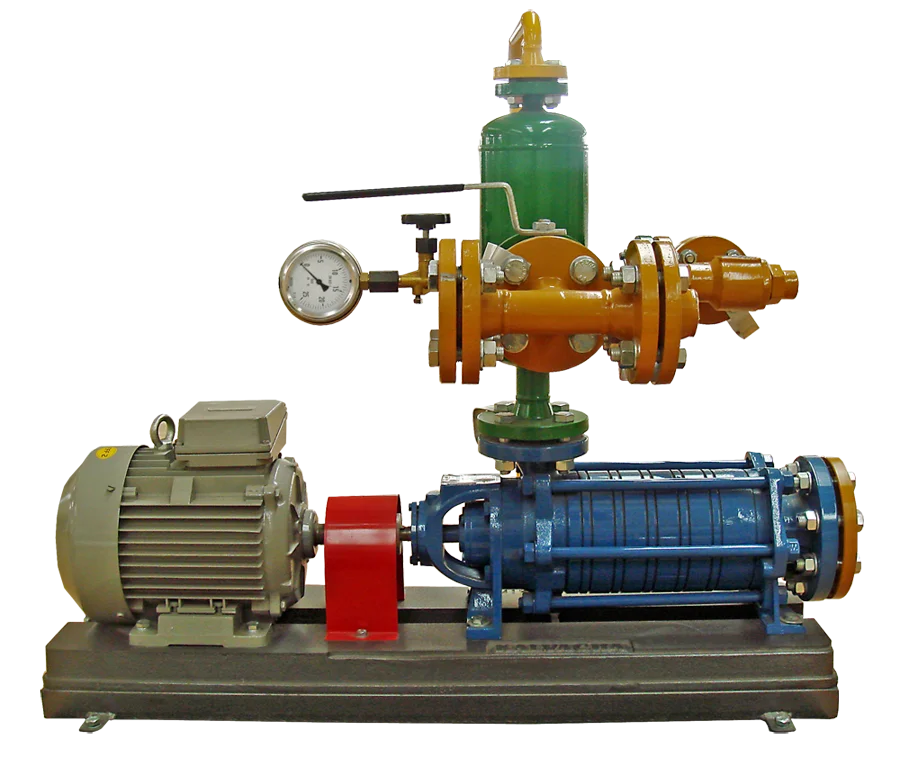

European LPG pump AR 2 1/4 2,2 kW

Original: Bulgaria

echnical data of pump:
- Pump Capacity: up to 7,2m3/h
- Work pressure up to 25 Bar
- Differential pressure up to 18 Bar
- Maximal pressure 40 Bar
- Work temperature -20° до 90° С
- Motor speed 1450 rpm

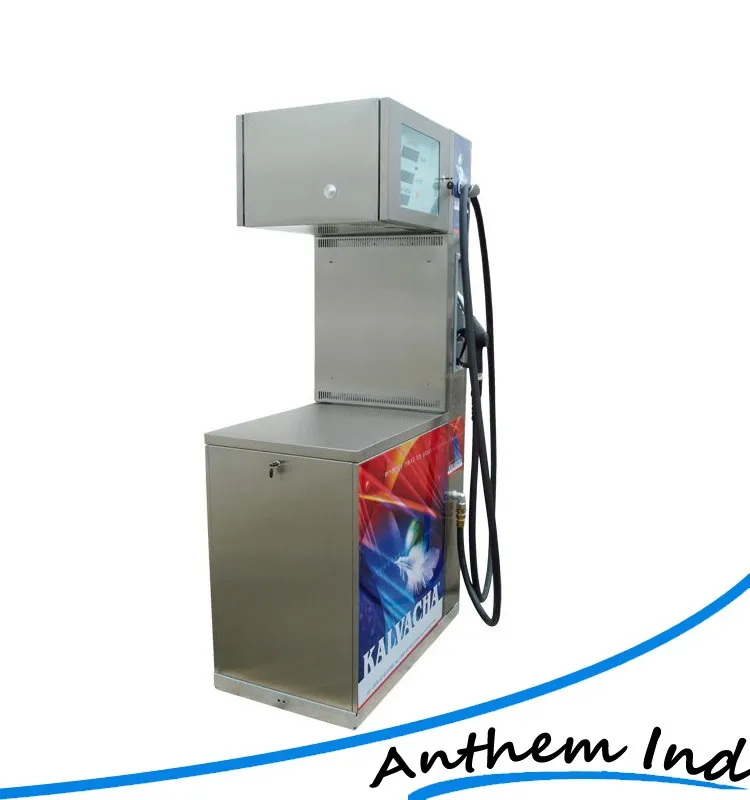

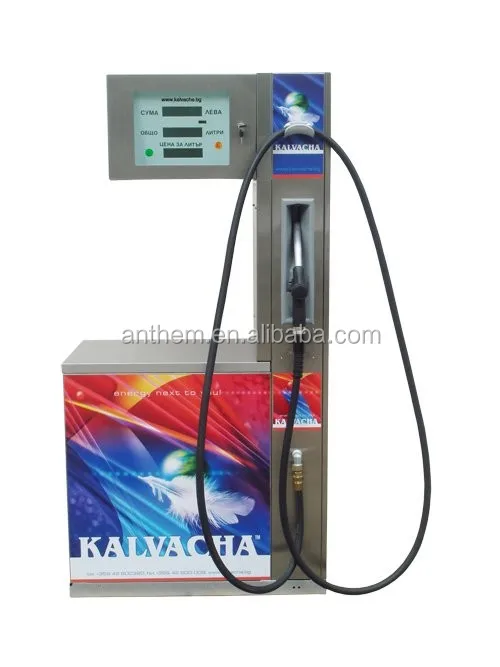

LPG dispensers

Original:Bulgaria
The basic model includes:
 Body: cold bended stainless steel sheet;
 Flow meter: two piston, type SCHWELM KALVACHA;
 Smart hose: L =4 m., DN 19x6, PN 25;
 Nozzle: Kalvacha;
 Pulser: GILBARCO 25/50 imp per turnover
 Display: 3 pcs LCD;
 Electronic block: Kalvacha EI4/2KL
 Packing: standard

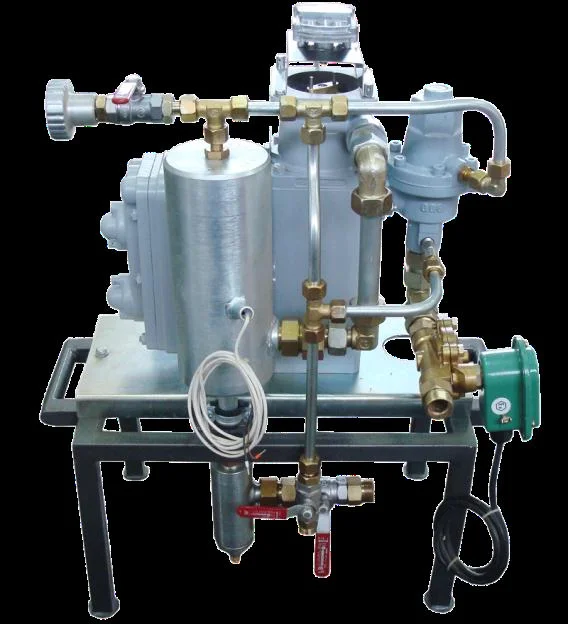

Hydraulics Unit for single hose LPG dispenser

Original: Bulgaria
 Two-piston Flowmeter „Schwelm-Kalvacha”
 Differential valve „Kalvacha”
 Excess flow valve „Kalvacha”
 Vapour eliminator (gas separator) „Kalvacha”
 Pressure relief Valve
 Inlet Filter „Kalvacha” COLO 1”
 Selenoid Valve.

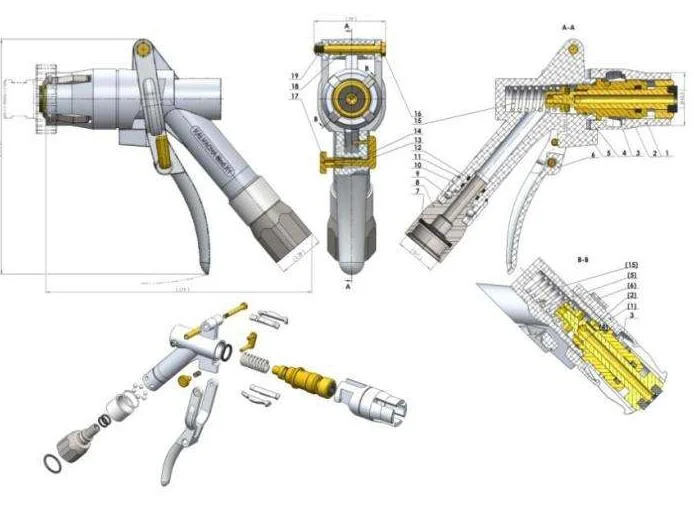

Filling Nozzle

Technical data:
- Work pressure up to 24 Bar
- Gas losses when disconnected up to 4.3 cc
- Weight 1.4 kg
- Work temperature -40° до 85° С
- Type of connection “Italian type”
