Product Application
Main Features
Work parameters of the station:
- Maximum work pressure 1.7 MРа;
- Working temperature from -40° to +80°С
- Geometrical volume of the tank from 5 m³ to 30 m³
Tank specifications:
A full range of LPG tank equipment (safety valves, level gauges, multivalve, angular valves, filling valves) is
included.
Working pressure – from 15,6 to 17,65 bar, depending on the local normative requirements of the country;
Working fluid: propane-butane (group 1 - dangerous fluids)
Working temperature: -20 to +50 C;
Tank's category: IV, according to PED 97/23
European LPG pump AR 2 1/4 2,2 kW
Original: Bulgaria
echnical data of pump:
- Pump Capacity: up to 7,2m3/h
- Work pressure up to 25 Bar
- Differential pressure up to 18 Bar
- Maximal pressure 40 Bar
- Work temperature -20° до 90° С
- Motor speed 1450 rpm
LPG dispensers
Original:Bulgaria
The basic model includes:
Body: cold bended stainless steel sheet;
Flow meter: two piston, type SCHWELM KALVACHA;
Smart hose: L =4 m., DN 19x6, PN 25;
Nozzle: Kalvacha;
Pulser: GILBARCO 25/50 imp per turnover
Display: 3 pcs LCD;
Electronic block: Kalvacha EI4/2KL
Packing: standard
Hydraulics Unit for single hose LPG dispenser
Original: Bulgaria
Two-piston Flowmeter „Schwelm-Kalvacha”
Differential valve „Kalvacha”
Excess flow valve „Kalvacha”
Vapour eliminator (gas separator) „Kalvacha”
Pressure relief Valve
Inlet Filter „Kalvacha” COLO 1”
Selenoid Valve.
Filling Nozzle
Technical data:
- Work pressure up to 24 Bar
- Gas losses when disconnected up to 4.3 cc
- Weight 1.4 kg
- Work temperature -40° до 85° С
- Type of connection “Italian type”

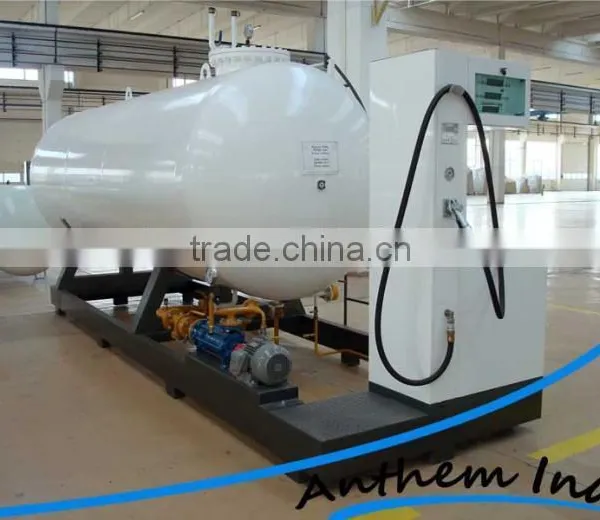

LPG Filling Station

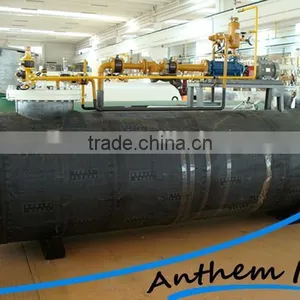

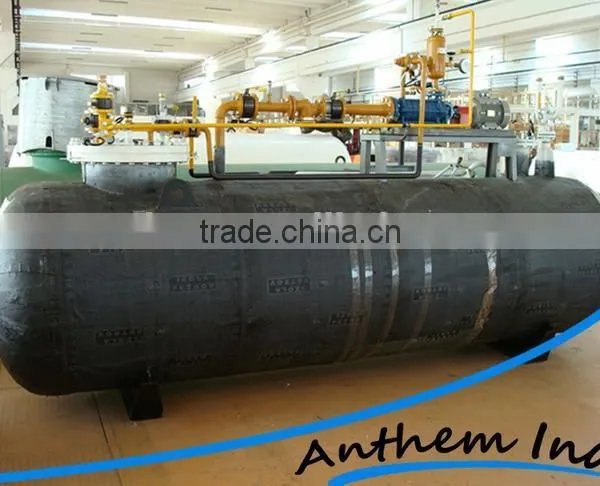

* Underground, and Above groud tank for filling station.
* European Quality.
* ISO standard, and test for each product.
After-Sales Service
* We are a factory professional in LPG gas station and turn key project service.
* Engineers available to service machinery overseas.
