Introduction

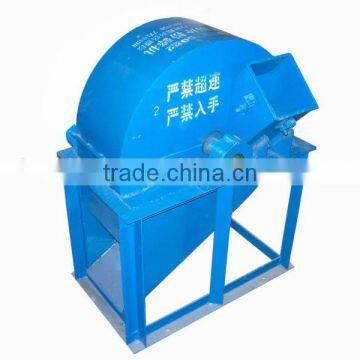

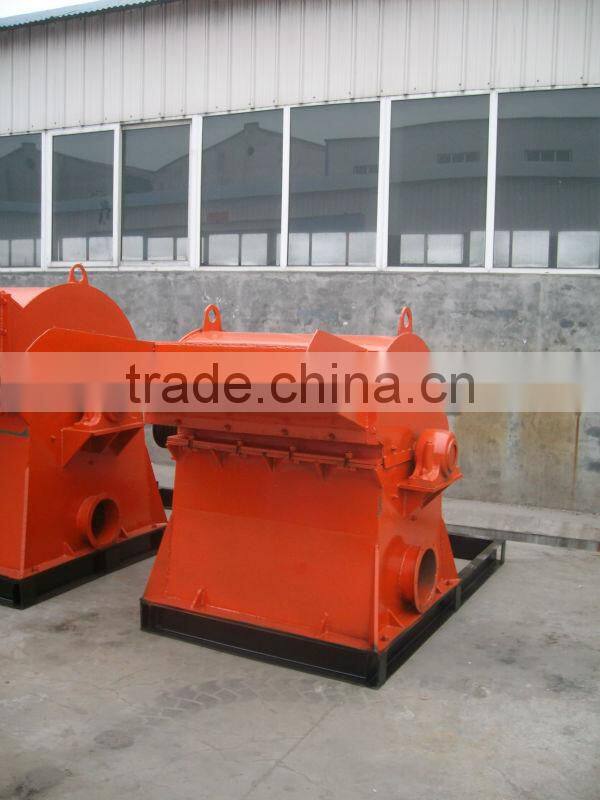

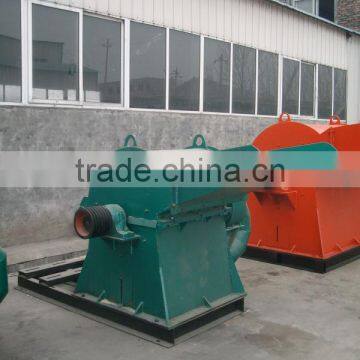

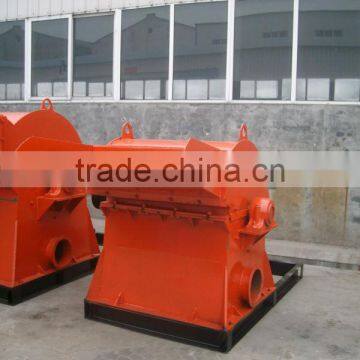

The New type good quality wood sawdust crusher in Tongli machinery Henan is driven by the motor and pulley, and the main spindle rotates rapidly with hammerheads on the shaft impacting the materials and get material crushed. It is an advanced grinding equipment, the products in the absorption of a variety of mill basis of merit, full use of impact, shear, impact each other, grinding and other theories of well-developed.
Raw materials
The raw materials for New type good quality wood sawdust crusher in Tongli machinery Henan are: Pine, hardwood, poplar, pine, bamboo, branches, leaves, tobacco stems, shells, calcium and other materials, more suitable for mushroom culture medium wood machining. Meanwhile, the device can also be used bamboo, grass, corn stalks, corn cobs, sorghum stalks, newspaper, cardboard boxes, cardboard-like material such as fibrous stalk and particleboard chips, sawdust board high-density material production.
Features of New type good quality wood sawdust crusher in Tongli machinery Henan
1. Fine crush: 85% of the particle size can be controlled within 3mm .
2. High-efficient and energy-saving: power saving 40% of equivalent output.
3. Long service life: The hammer heads are made of high-strength alloy materials with multiple metal elements thus to prolong the service life by 4 times.
4. Good crushing ratio: The biomass wood crusher can be used as both primary & secondary crushing for clinkers and secondary & tertiary crushing for limestone.
5. Easy maintenance: The rear cover of the upper machine frame can be hydraulically (hand)-opened to make the maintenance much easier.
Working Principle of the Wood Crusher:
1. The hammers are cross designed and non-overlapping arranged, and their width is greater than hammer frame and contour, they are ensured to participate in crushing by the full length of the rotor. And due to the hammerheads being designed inactively, the energy consumption will reduce when the hammerheads crush materials improving the crushing efficiency.
2. There are coarse-crushing chamber, fine crushing chamber, impact chamber(composed of wedge adjustable impact plate and circular plate), and three discharging channels.
3. In the coarse crushing chamber, the "stone-stone" crushing will greatly reduce the hammer wearing. Besides, the materials in all chambers can be discharged in timely. That can greatly improve production capacity and reduce energy consumption.
Application fields
The series of New type good quality wood sawdust crusher in Tongli machinery Henan suitable for mobile operation, widely used in particleboard and fiberboard production of small and medium enterprises preparation steps can also be used for the self-employed for production of wood products.
Packing details: In wooden cases.
Payment
50% pre-payment, we will commence production of the machines upon recieving the first payment. The outstanding balance should be paid in full before the goods can be shipped.
Delivery: within 15 days
Technical Data
|
Model
|
Power (kw) |
Output (kg/h) |
Covering Area (m³) |
Size (m) |
400 |
18.5 |
500-700 |
5 |
1.85*1.2*0.92 |
600 |
37 |
1000-2000 |
7 |
2.3*1.6*1.25 |
800 |
45 |
2000-3000 |
9 |
2.56*2.1*1.55 |
1000 |
55 |
4000-5000 |
13 |
2.8*2.5*1.7 |
1200 |
75 |
6000-7500 |
18 |
2.8*2.9*1.7 |
1500 |
90 |
8000-9000 |
25 |
2.9*1.8*1.6 |
