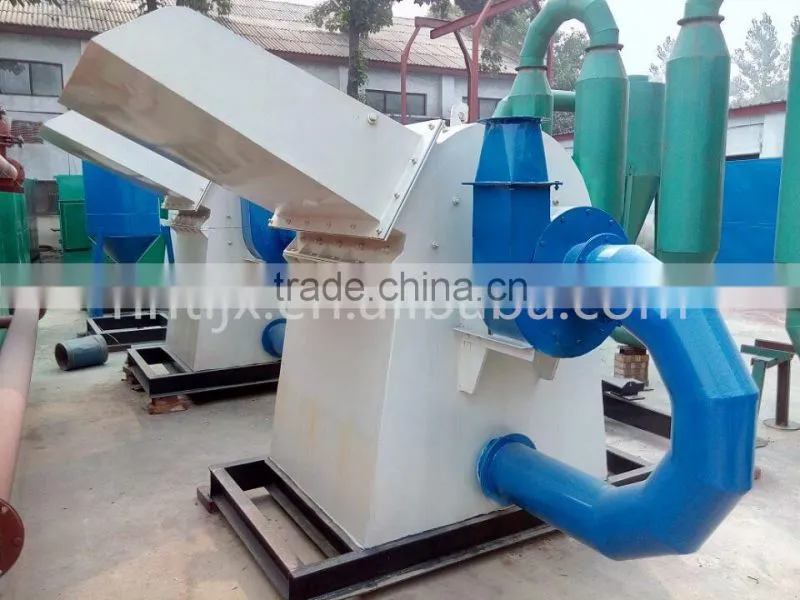

China low price wood sawdust crusher machine for making sawdust
Sawdust crusher machine Specification
Model |
Power (kw) |
Capacity (kg/h) |
Net/Gross Weight(kg) |
Packing dimension(m³) |
HM-I |
4 |
100-300 |
250/300 |
1.5*1*0.8=1.2 |
HM-II |
7.5 |
400-500 |
350/400 |
1.7*1.2*1=2.04 |
HM-III |
11 |
500-600 |
400/450 |
1.7*1.2*1=2.04 |
HM-IV |
18.5 |
700-800 |
490/560 |
1.66*1.2*1.77=3.53 |
HM-V |
22 |
1000 |
490/560 |
1.66*1.2*1.77=3.53 |
Name |
Crusher |
Packing |
Wooden case |
Port |
Qingdao,Tianjin |
Delivery time |
Within 15 days |
Install |
Our technical workers to your country install |
FOB price(USD) |
1500-15000 |
Payment |
30% T/T in advance and balance by the copy of B/L
|
Sawdust crusher machine Features
1). Super-fineness crushing capability: The new particle size adjusting mechanism guarantees 85% of the particles controlled within 3mm;
2). High-efficient and energy-saving: 40% power consumption reduced at equivalent output;
3). Extra long life: hammer heads are made of new type of high quality alloy materials with multiple elements and can be turned for use thus to prolong the service life by 4 times.
4). Great crushing ratio: incorporating primary & secondary crushing for clinkers and secondary & teritary crushing for limestone into one step.
5). Easy Maintenance: The rear cover of the upper machine frame can be hydraulically (hand)-opened to make the maintenance much easier.
Sawdust wood crusher machine Working Principle:
Drived by the motor and pulley, the main spindle rotates rapidly, and then hammerheads on the shaft collide with materials and crush them.
1). Since hammers are cross and non-overlapping arrangement, and their width is greater than hammer frame and contour, they are ensured to participate in crushing by the full length of the rotor. And due to the hammerheads being arranged inactively, the energy consumption will reduce when the hammerheads crush materials, to improve the crushing efficiency.
2) structure designing principle of this device is “stone to stone” coarse-crushing chamber, fine crushing chamber, impact chamber(composed of wedge adjustable impact plate and circular plate), and three discharging channels.
3) In the coarse crushing chamber, this crusher adopts the designing principle of “stone to stone”. That greatly reduces the hammer wearing. Besides, whether newly entering materials or ones in coarse and fine crushing chambers, they both can be discharged in time. That can greatly improve production capacity and reduce energy consumption.
Company introduction
Tongli Mechanical Equipment Manufacturing Factory is the 20th built in the 1980s-branch, the trade and industry as one of the heavy machinery manufacturing enterprises. Specialized in modern building materials equipment R&D, design, manufacturing and engineering technology services, we have accumulated a wealth of economic strength and human resources. Senior technical of the technology management team in the country was more than 40percent.
Sawdust wood crusher machine Service
1. Before Sale: help you to set a purchase plan according to your requirment
2. During Sale: accompany you to check the performance of the machine; train technical stuff for you
3. After Sale: Sent artisan to your place and help you with the installation
Sawdust wood crusher machine Raw material
Sawdust wood crusher machine Finished product
Sawdust wood crusher machine Advantage:
1. various kinds of types, there always be a suitable for you.
2. factory direct sell, competitive price and thoughtful after service.
3.with our self researched formula, the charcoal is smokeless and easy to be ignited.
contact way:
WhatsApp:008613937134928
Wechat ID:TongLiMachine
Skype:tonglimachine2
Website:
Gongyi Tongli Mechanical Equipment Manufacturing Factory from China .thankes for your support.
