Camda 250KW biogas / natural gas generator with CE and ISO certificate
Specification of genset:
Gas genset data | |
Genset model |
KDGH250-G |
Prime power (kW/KVA) |
250/312.5 |
Continuous power (KW/KVA) |
250/312.5 |
Connection (V) |
3 Phases 4 Lines |
Power factor cosfi |
0.8 lagging |
Frequency (Hz) |
50 |
Rated speed (RPM) |
1500 |
Open type Genset Overall Dimension (mm) |
3500x1250x2020 |
Soundproof type Genset Dimension (mm) |
20 feet container |
Net weight without canopy(kg) |
3225 |
Specification of engine:
Gas Engine Data | |
Model |
HGNT14 |
Brand |
CAMDA |
Type |
4 stroke, water-cooling, dry cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning |
Cylinders& Arrangement |
6L |
BoreXStroke(mm) |
159X159 |
Displacement(L) |
18.9 |
Compression ratio |
11:1 |
Aspiration |
Natural |
Cooling Method |
Radiator fan water cooling |
Governor type(speed regulating type) |
Electronic governing |
Starting method |
Electric, 24 V motor |
The lowest gas consumption(m3/kw.h) |
0.3 for natural gas/0.6 for biogas |
Idling speed(r/min) |
700 |
Oil recommended |
SAE 15W-40 CF4 or above |
Oil consumption |
≤1.0g/kW.h |
Standard Scope of Supply:
1.Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by DCEC (Cummins Joint Venture in China) with best quality
2. Brand new brushless France Leroy Somer alternator
3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H
4. Radiator for 40°C/50°C ambient temperature

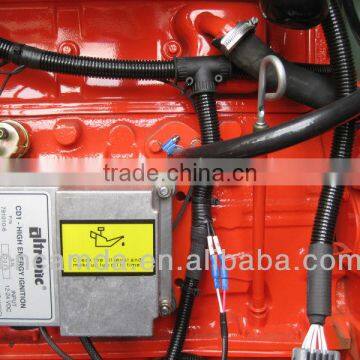

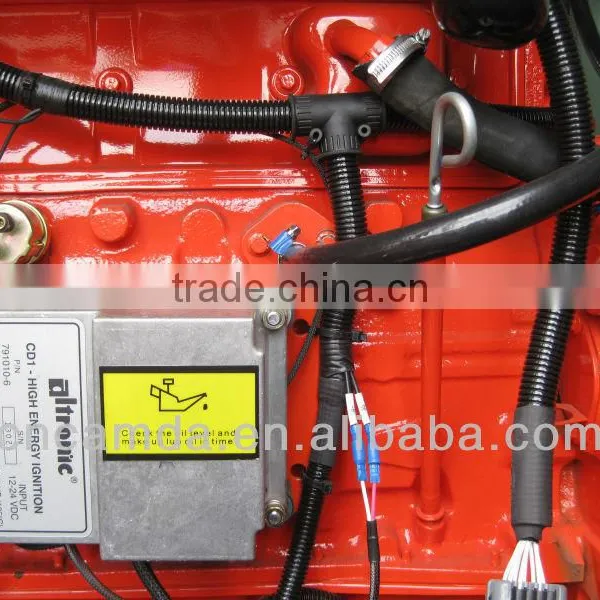

5. Ignition system adopted USA ALTRONIC
6. Emergency stop mounted
7. Battery,Battery cable and Battery charger
8. Standard tool box
9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )
10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)
Details:
Plastic packaging or wooden case package.
Delivery port: Shenzhen or Guangzhou port in China
Destination port: Any port in the world
