Home > Products > Diesel Generator Sets > 550kW Diesel Generator Set/genset with ISO&CE identification

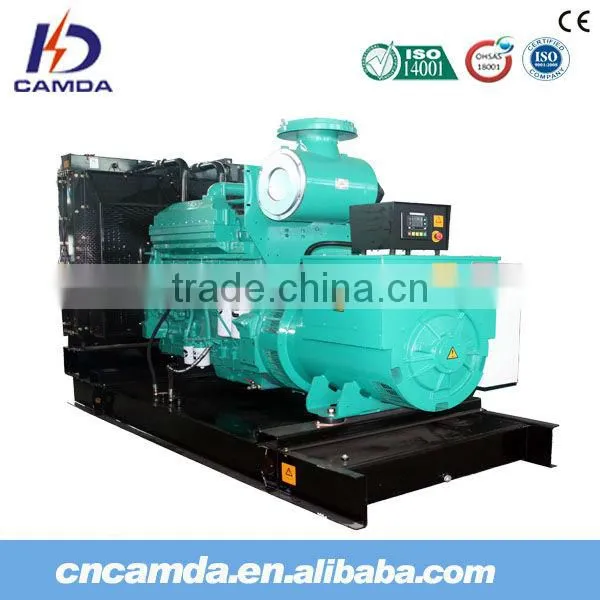

550kW Diesel Generator Set/genset with ISO&CE identification
- 5000 Unit / Units per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CAMDA | Model Number: | KDGC550S |
Output Type: | AC Three Phase | Speed: | 1500 OR 1800RPM | Frequency: | 50hz or 60hz |
Rated Power: | 550kW | Rated Voltage: | 50Hz,380/220V or 230/400V or 240/415V | Rated Current: | 900A |
Product Description
550kW Diesel Generator Set supplied with
engine KTAA19-G6A, France Leroy Somer alternator LSA49.1S4A + Deepsea controller DSE6020.
Ratings
Standby Power | kVA | 687 |
kW | 550 | |
Prime Power | kVA | 625 |
kW | 500 | |
Voltage type | 50Hz,380/220V or 230/400V or 240/415V, 3 phases and 4 wires |
Ratings at 0.8 power factor
1)Standby Power - Power available at a variable load when a main power network fails, running up to a maximum of 500 hours per year. Over load is not allowed.
2)Prime Power - Power available at variable load in lieu of main power network. An overload of 10% is allowed for one hour in every twelve hours of operation.
Performance Data
Engine Brand & Model | CCEC KTAA19-G6A |
Alternator Brand & Model | Leroy Somer LSA49.1S4A |
Control System | Deepsea DSE6020 |
Standard Noise Level@7m (Soundproof Sets) | 85 dBA |
Circuit Breaker Type | 3 Poles MCCB |
Frequency & Phase | 50Hz, 3Phases + 4Wires |
Engine Speed (RPM) | 1500 |

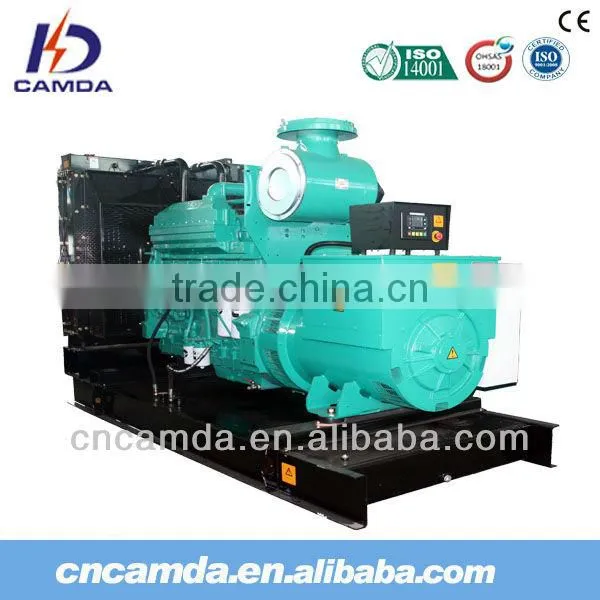

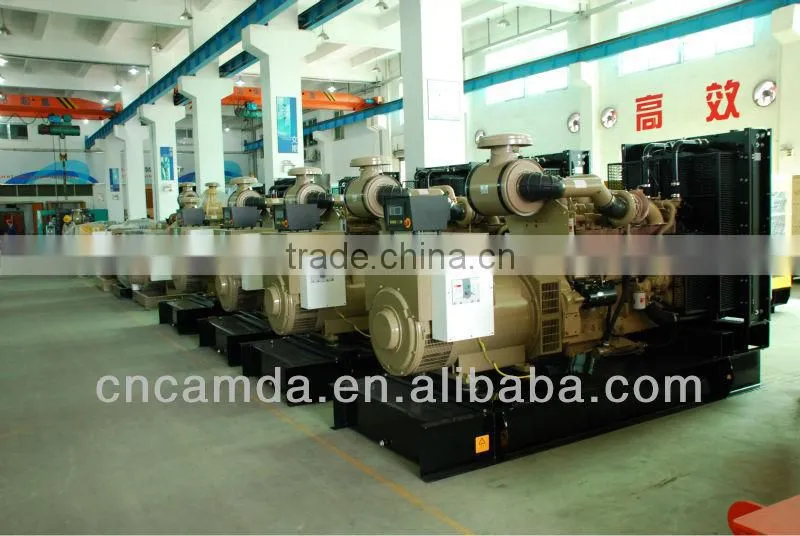

More specific photos about the diesel generator:

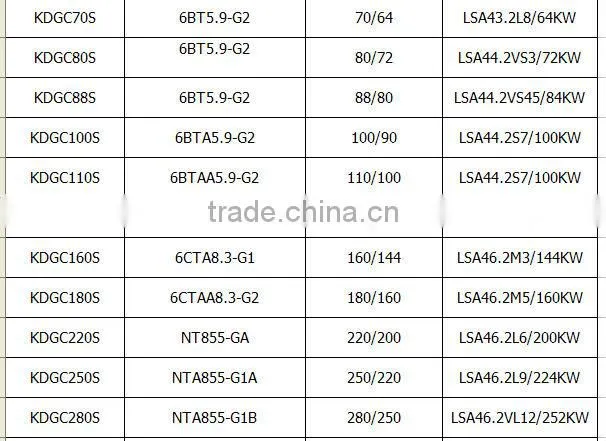

More diesel generators with different power:
Genset model Engine Model Standby /Prime(KW) Alternator model
♣ Please contact with us for more information if you are interested.
1. Pre-sale service:
Select proper gen-set, Installation recommendation and
Tech support,Special equipping design
2. In-sale service:
Application tech support, Installation test Installation recommendation
3.After-sale service:
Tech training,Outstanding maintenance,Operator training
4 Lifetime service:
Maintenance service,Tech consultancy,Components supply
Soundproof / weatherproof canopy photos
CE and ISO2008 Certificates
