200kVA diesel generator set/diesel genset/electric power generator
1. Specification of CAMDA Diesel Generator Set
Gen-set Details | ||
Genset Model |
KDGC135S |
|
Prime Power |
KVA |
180 |
KW |
144 |
|
Standby Power |
KVA |
200 |
KW |
160 |
|
Engine Model |
6CTA8.3-G2 |
|
Alternator Model |
LSA46.2M3 |
|
Controller Model |
Deepsea DSE6020 |
|
Rated Frequency (Hz) |
50 |
|
Rated voltage (V) |
400/230 |
|
The output mode |
3 phases , 4 wires |
|
2. Specification of Diesel Engine
ENGINE DETAILS | |
Engine Model |
6CTA8.3-G2 |
Rated Power |
163kW |
Standby Power |
180kW |
Rated Speed |
1500r/min |
Engine Type |
In-line, 6 Cylinder, 4 Cycle, Turbo Intercooler Diesel Engine |
Bore×Stroke |
114mm×135mm |
Displacement |
8.3 Liters |
Compression Ration |
16.5:1 |
Fuel Injection Pump |
PB Injection Pump |
Governor |
Electrical Governor |
Steady Speed Droop |
≤1%(Electrical Governor)) |
Lubricant Capacity |
24 Liters |
Coolant Capacity |
12.3 Liters(Engine Only) |
Coolant Intake Size |
Φ50mm |
Coolant Outlet Size |
Φ57mm |
Fuel Intake Temperature |
40°C |
Air Intake Restriction |
251mmHg |
Exhaust Back Pressure |
76mmHg |
Lubricant Oil |
15W40-CF4 Upgrade |
Net Weight |
629 kg |
Overall Dimension(L×W×H) |
1128mm×740mm×1084mm |
3. Specification of LEROY SOMER Alternator
Leroy Somer Alternator Details | |
Brand |
Leroy Somer |
Model |
LSA46.2M3 |
Continuous Power (KVA) |
180 |
Voltage (V) |
380 |
Speed (RPM) |
1500 |
Frequency (Hz) |
50 |
Power factor Lagging |
0.8 |
Connecting Type |
3phase,4wire |
Voltage Regulation |
±0.5% |
Insulation Class |
H |
Protection class |
IP23 |

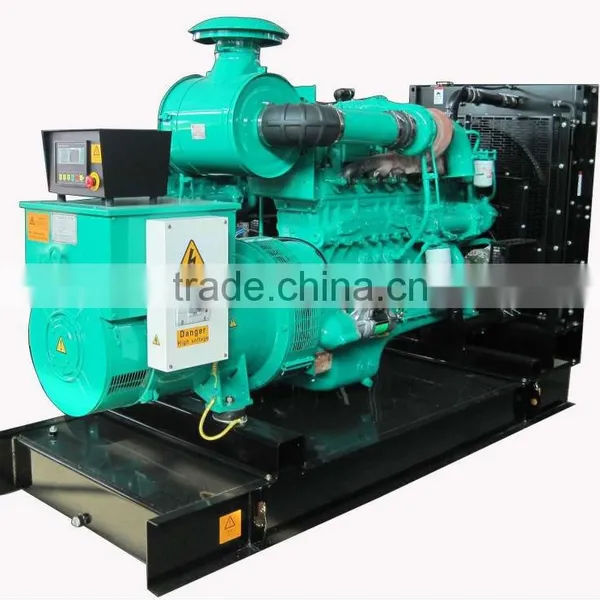

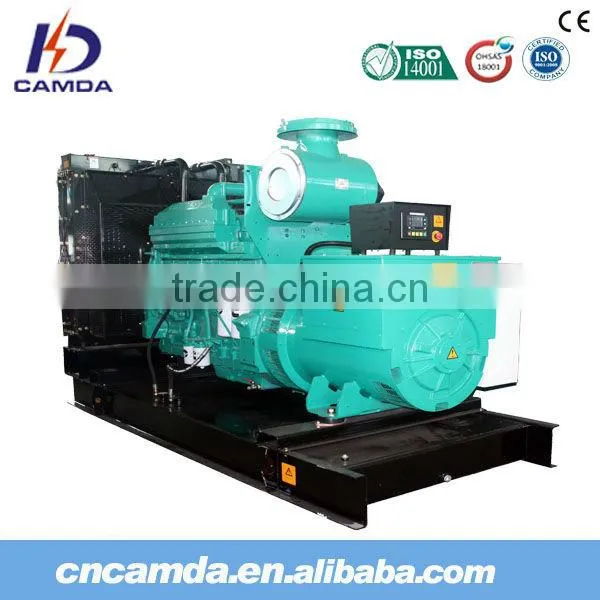

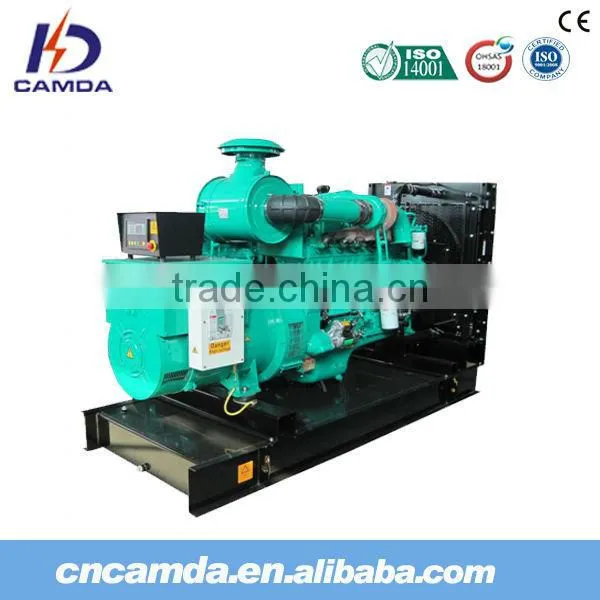

Diesel gensets photos:
Overseas Market and Service for Customers:
1. Presale service: Select proper genset, Installation recommendation and Technical support,Special equipping design
2. In-sale service: Application tech support, Installation test Installation recommendation
3.After-sale service: Tech training,Outstanding maintenance,Operator training
4. Lifetime service: Maintenance service,Tech consultancy,Components supply
Our Advantages for Diesel Generator:
1. As OEM distributor of world facmous brand, Camda supplies good quality engine, alternator and controller.
2. Set up in 1998, Camda has more than 18 years experience to provide aftersale service and engineering.
3. Camda has more than 200 experienced and well trained technical engineers.
5, Camda holds free trainning programs twice a year. Moreover, we provide customers with technical support to update technology and control system.
6. Camda offers free technical support during installation.
7. Camda equips with standard test platform and maintenance center to ensure quality control for diesel generator before every shipment.
8.Any failure or breakdown caused by bad quality during maintenance period will be resolved by our factory free of charge.
Camda Production Process for Generator Set:
