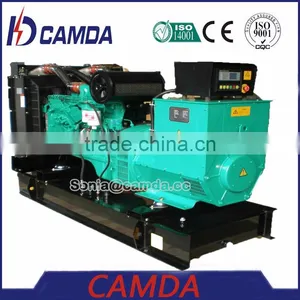

23kw/28kva Motor Engine Cheap Price Mini Generator Low Rpm Generator

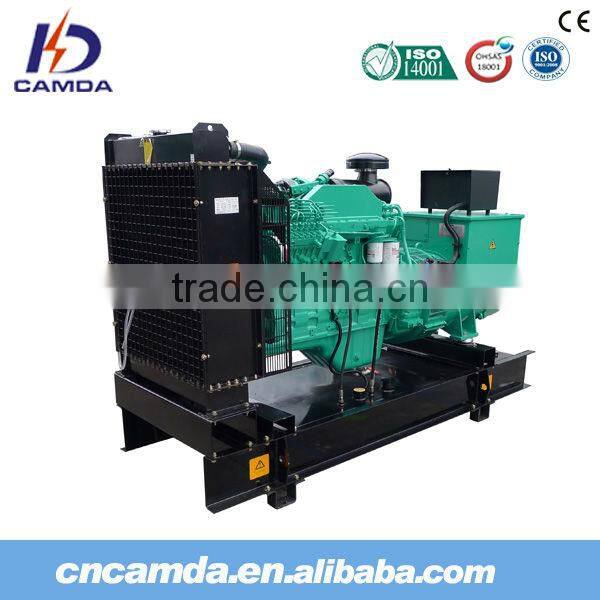

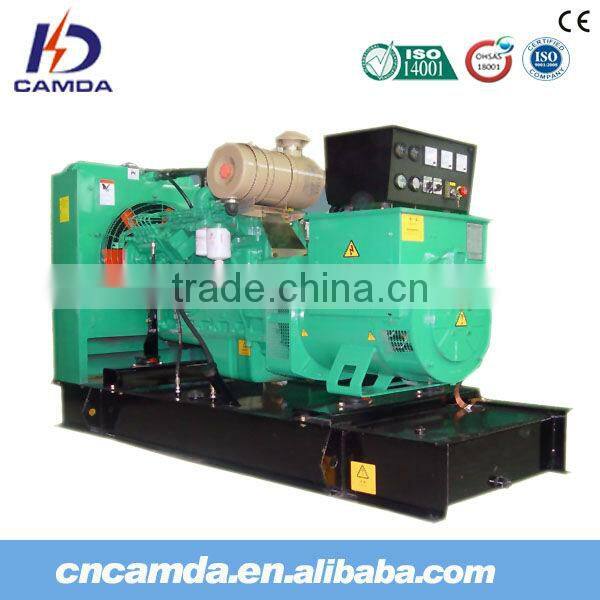

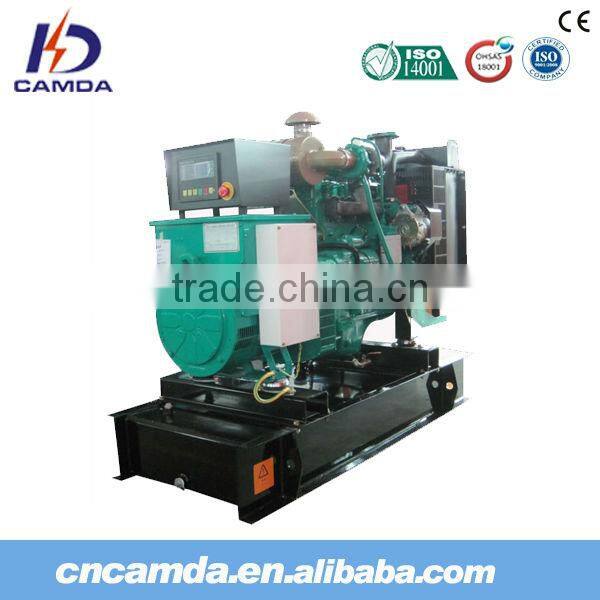

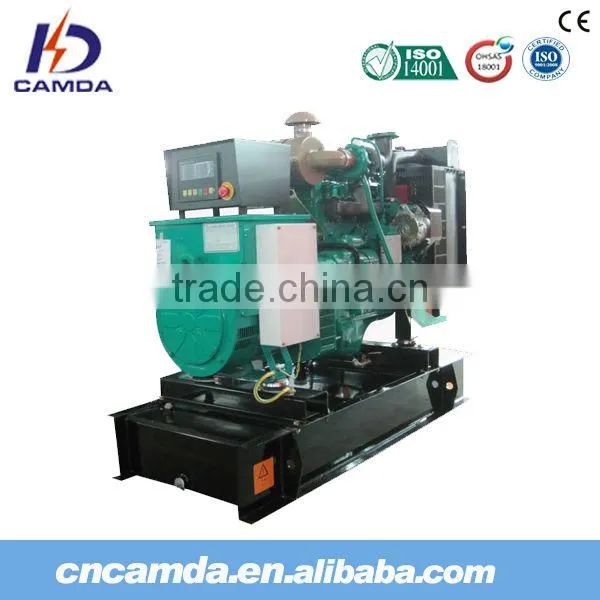

23kw/28kva Motor Engine Cheap Price Mini Generator Low Rpm Generator photo-1

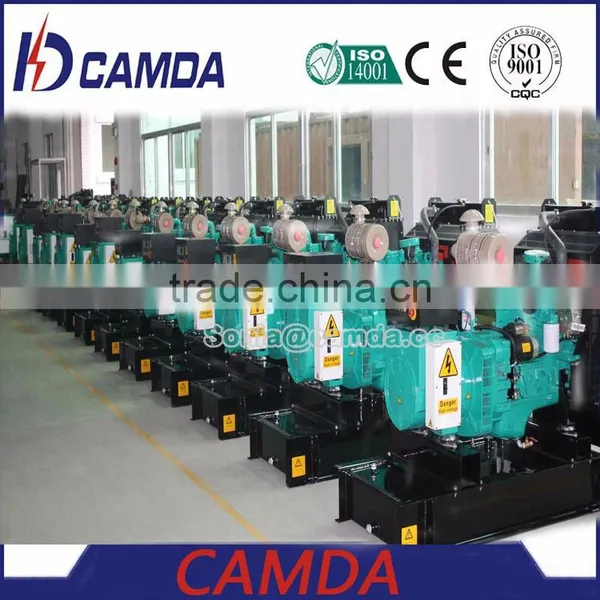

23kw/28kva Motor Engine Cheap Price Mini Generator Low Rpm Generator photo-2

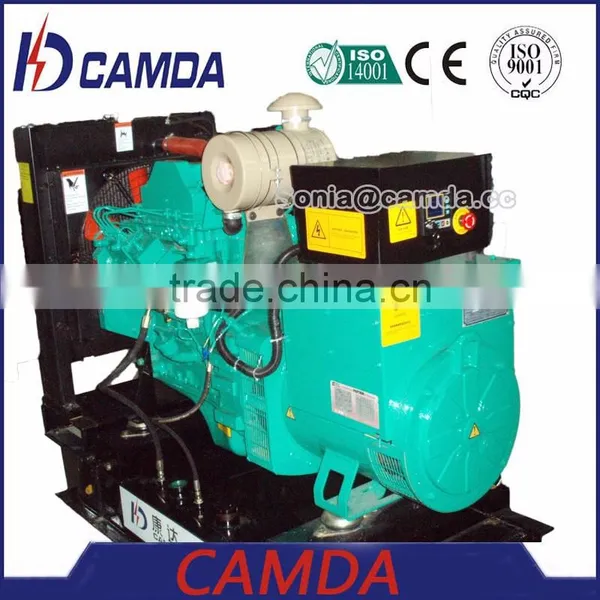

23kw/28kva Motor Engine Cheap Price Mini Generator Low Rpm Generator photo-3
23kw/28kva Motor Engine Cheap Price Mini Generator Low Rpm Generator photo-4
23kw/28kva Motor Engine Cheap Price Mini Generator Low Rpm Generator photo-5
23kw/28kva Motor Engine Cheap Price Mini Generator Low Rpm Generator photo-6
US$ 5,626 - 7,238 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DCEC
Model Number:
KDGC23S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name DCEC
Model Number KDGC23S
Output Type AC Three Phase
Speed 1500/1800rpm
Frequency 50HZ
Rated Power 25KW
Rated Voltage 400/230V
Rated Current Depend
Product Description

Why choose us?

We are the distributor of GE in China.
Also We have more than 18 years in
this generator area.  Camda New Energy Equipment co.,ltd  established in 1998.

 Buyers Attention:

After-sales service, price and quality.
After-sales is the most important, if there is no good after-sales service, do not buy. because you not only buy the diesel generator but also the service.

Construction of  generator set.

Including 4 parts:  engine, alternator. underframe and control system

About Diesel Genset: 23kw/28kva motor engine cheap price mini generator low rpm generator

Model: KDGC23S
Standby Power:  29kVA  23kW
Prime Power: 26kVA    21kW
Engine Model: 4B3.9-G1
Alternator Model: BCA 164F
Controller Model: DSE6020
Rated Frequency (Hz): 50/60HZ
Rated Voltage (V): 400/230
Rated Current (A): 41
Output Type: 3 phase , 4 wire
Fuel Consumption (L/h): 6
Lube Oil Consumption (L/h): 0.04

About Engine:

Brand: DCEC
Model: 4B3.9-G1
Rated Power (kW): 24
Standby Power (kW): 27
Rated Speed ( r/min): 1500
Bore×Stroke (mm×mm): 102×120
Displacement (L): 3.9
Compression Ratio: 16.5:1
Fuel Injection Pump BYC A Injection Pump
Governor Mechanical
Steady Speed Droop ≤5%(Mechanical Governor)
Lubricant Capacity(L): 10.9
Coolant Capacity(L): 7.2(Engine only)
Aspiration: Natural

About Alternator:

Brand: Stamford
Model: BCA 164F
Ambient Temperature (°C): 40
Insulation Class: H
Power (kW): 21
Voltage (V): 400/230
Frequency (Hz): 50
Protection Class: IP 23
Power Factor (Lagging): 0.8
Excitation System: Shunt
A.V.R.: Model AS440
Connecting Type: 3 phase, 4 wire
Voltage Regulation (%): ±1.0

Detailed Image
Our Service

Before sales service:

Free charge on load capacity analysis,complete-set forming,technology consultation as well as assisting user to fix up machinery room and lay out equipment installation plan.

Under sales service:

For the purpose of helping user to master all type of gensets' operation,use and maintenance better,
we specially offer the cost-free full set on-site training session in our company.

After sales service:
We attach great importance of after sale service,we establish the computer backup for follow up service and periodic inspection.
Our maintenance center has the quick reaction management system,
we'll indicate user eliminate fault in an hour via phone or arrange the service people doing on-site maintenance for more complicated condition.
About the complain,we always strictly follow the principle of seeking truth,and appoint the responsible person to solve trouble.

Packing & Delivery
Packaging for open type
Size
1700*710*1270(This is for 21KW open type
2300*1050*1700(This is for 21KW silent type)
Weight
Depends on different machine you choose



Packaging Details
1. Wooden case or plastic according to your genset.
2. In 20'' or 40'' container.
3. With tool case, battery,rust-preventive liquid,silencer,asbesto pad,screw,shockproof pad and so on.
4.According to your request if you have any questions.

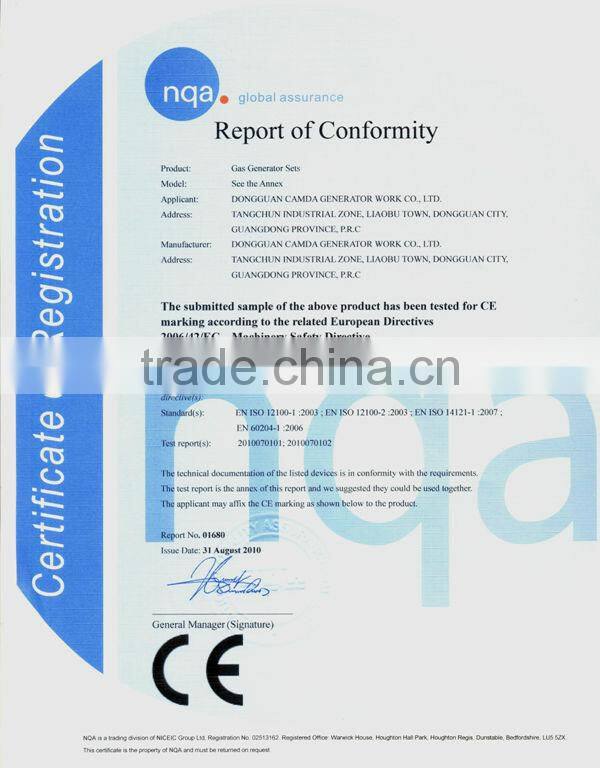

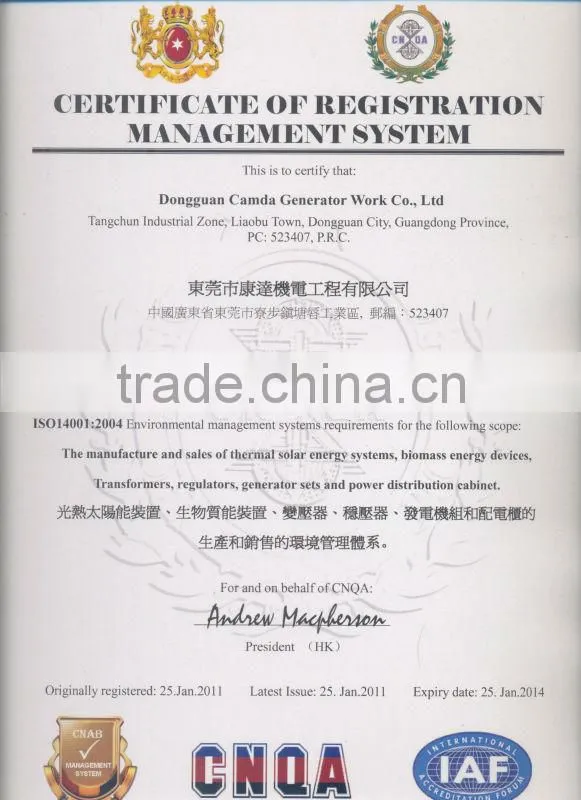

Certifications
