CM550-51H Automatic Meter Reading Upto 32 Modbus Rtu 3G HSPA+ NETWORK

Name: CM550-51H Automatic Meter Reading Upto 32 Modbus Rtu 3G HSPA+ NETWORK
Brand: CAIMORE
SKU: 138276965
Availability: InStock

Xiamen Caimore Communication Technology Co., Ltd.

US$ 132 - 163 MOQ: 2 Sets

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

CAIMORE

Model Number:

CM550-51H

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name CAIMORE

Model Number CM550-51H

Usage Auto

Product Description

1,Support APN/VPDN
2,Support double data center backup and multiple data center ( 8 data center) receiving data, the biggest number of sending center is up to 256
3,Remote wakeup: support short message,voice,data etc wakeup method and overtime disconnect network
4,Support center server fixed IP, when center adopts dynamic IP, it can support DDNS dynamic domain communication mode.
5,Support 6 CH counter input,8 CH switch input,8 CH analog input,4 CH digital output,2 CH PMW output,4 CH relay output
6,Support 1 RS232/RS485
7,Support 1 Ethernet port,and USB(optional)
8,Support extendable wireless RTU managment platform protocol
9,Support remote configure,remote control and remote upgrade
10,Support WEB configure
11,Support telnet
12,Support serial port software upgrade
13,Support GPS/Compass(optional)
14,Support Zigbee mesh network(optional)
15,Support LINUX, UNIX and WINDOWS operating systems

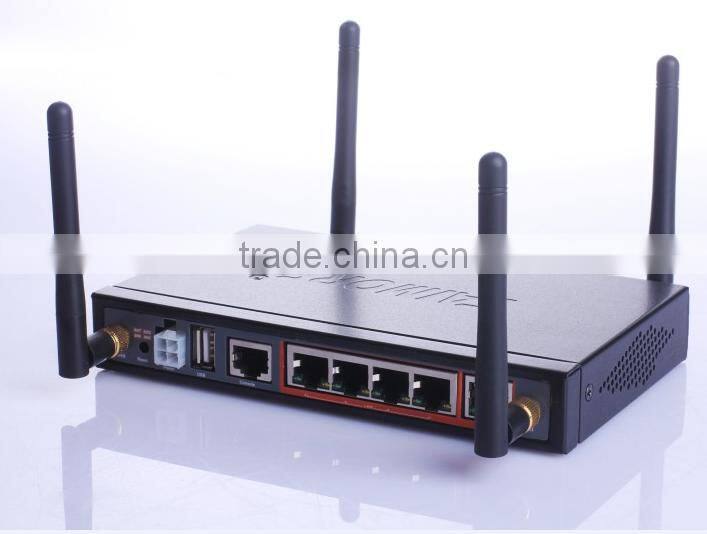

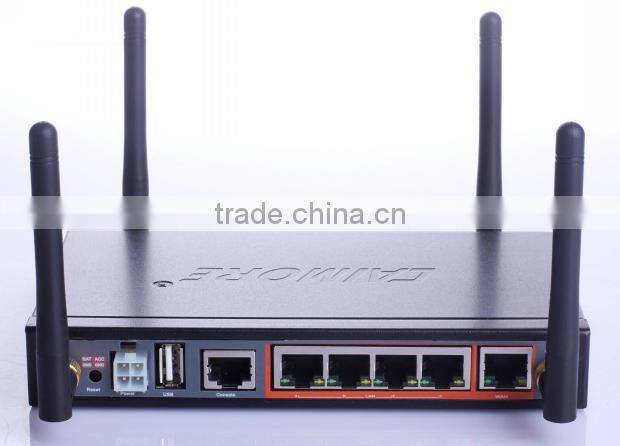

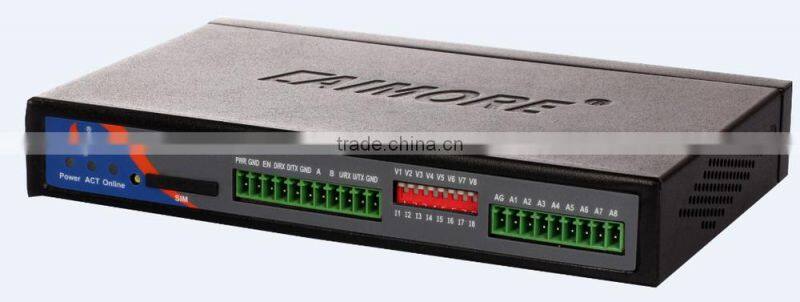

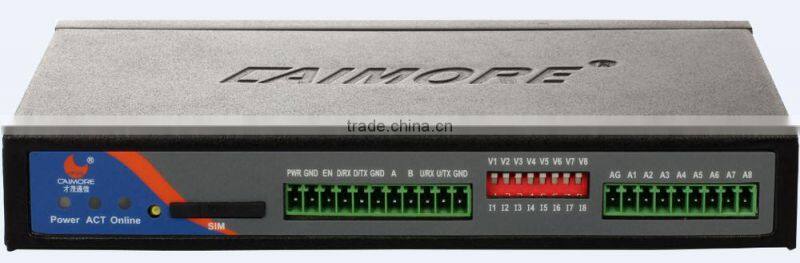

Product View

Specification Information:

Cellular Parameters:
Item	Content
Cellular	HSPA+/UMTS/HSDPA/HSUPA/WCDMA/EDGE/GPRS/GSM
Standards and frequency bands (HSPA+)	Support HSPA+/UMTS/HSDPA/WCDMA 850/900/1900/2100MHz
	Dual-band EGSM 850/900/1800/1900MHz
	Support GPRS/EDGE CLASS 12
Communication bandwidth(HSPA+)	HAPA+ mode: download speed 21Mbps,upload speed 5.76Mpbs
	HSDPA/HSUPA mode:Downlink up to 7.2Mbps,Uplink up to 5.76Mbps
	WCDMA mode:Downlink/Uplink up to 384Kbps
Transmit power	<24dBm
Receiver sensitivity	<-109dBm
Function support	Support data, voice, SMS and fax

Interface Type:
Item	Content
Serial port	1 RS232 serial port (supports RS422/TTL)
	Data bits: 5,6,7,8 bit
	Stop bits: 1, 1.5,2 bit
	Parity: none, odd , even , space and mark
	Baudrate: 110bps ~ 115200bps
Indicator	“POWER”, “Link / ACT”,“COMM” and “ONLINE”
Antenna Interface	Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers.
UIM interface	1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection
Power Interface	Block interface,power supply over-voltage protection and reverse current protection.
Analog input	Resolution:16 bit,input voltage(-10V-+10V),input current(0-20mA),sampling rate(1.365kSPS),Accuracy±0.5% or better
Switch input	Input range(0-3.3V low level,5-30V high level)conatins all the way count function(1KHz)
Relay output(dry contact)	Drive ability 5A/30VDC,5A/250VAC
Optocoupler digital output	Open collector output,Max 30V,max current 40mA,Max power 125mW
Optocoupler PWM output	Open collector output,Max 30V,max current 40mA,Max power 125mW,output frequency 0-1KHz,adjustable duty cycle

Hardware system:
Item	Content
CPU	Industrial CPU,stable and reliable performance
MMU	CPU with MMU memory management unit, can prevent memory overflow exception
Flash	64Mbits, a large enough memory to store programs and data
SDRAM	256Mbits, a large enough cache to improve system operation speed

Operating System:
Item	Content
Operating System	Using LINUX2.6 operating system with memory management unit and real-time feature, upgrades is very fast and system is stable;

Power supply:
Item	Content
Supply voltage	Wide voltage design, DC 7V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection
Standard power supply	DC9V/1.5A
Current while Communicating	Average communication current :200mA @ +9 VDC;
Current while Communicating	Communicating instantaneous peak current: 1.0A @ +9 VDC
Standby current	Standby average current:0.15A@+9VDC

Physical features:
Item	Content
Shell	Metal shell: metal case, anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP30; particularly suit for harsh industrial control environments.
Product Dimensions	16710426mm(not including the antenna and the fixed parts)
Packing Size	35021588mm
Weight	0.52Kg
