Home > Products > Flow meter > plastic portable oxygen flow meter Rotameter

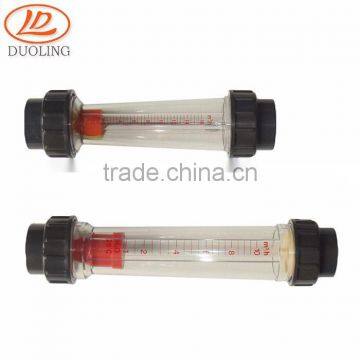

plastic portable oxygen flow meter Rotameter

FOB Price

USD $5 - $190 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Duoling
Model Number	LZS

Place of Origin	Jiangsu, China (Mainland)
Model Number	LZB-S (LZS)
Material of Tube	AS or PC
Material of Other Parts	ABS
Color	Gray or White Milk
Media	Liquid
Connection	BSP Thread, socket-end(PVC) or Flange

Long Tube Type (Without Guide Rod)
Model	Measure Range	Length (mm)	Connection Type		Accuracy: ±4% Pressure: ≤1Mpa Temperature :0~60 °C
			Socket-end Connection Size (mm)	BSP Thread Connection Size
LZB-15S	2-20 L/h 3-30 L/h 4-40 L/h 5-50 L/h 6-60 L/h 10-100 L/h 16-160 L/h 25-250 L/h 40-400 L/h 50-500 L/h 60-600 L/h 100-1000 L/h	280	Φ20	G½"
LZB-25S	100-1000 L/h 160-1600 L/h 250-2500 L/h 300-3000 L/h	380	Φ32	G¾"
LZB-40S (with guide rod)	0.4-4 m³/h 0.6-6 m³/h 1-10 m³/h	420	Φ50	G1¼"
LZB-50S	0.4-4 m³/h 0.6-6 m³/h 1-10 m³/h	435	Φ63	G1½"
	1.6-16 m³/h (with guide rod)

Short Tube Type (with guide rod)
Model	Measure Range	Length (mm)	Connection Type		Accuracy: ±4% Pressure: ≤1Mpa Temperature :0~60 °C
Model	Measure Range	Length (mm)	Socket-end Connection Size (mm)	BSP Thread Connection Size
LZB-15S (with guide rod)	5-50 L/h 6-60 L/h 10-100 L/h 16-160 L/h 25-250 L/h 40-400 L/h 50-500 L/h 60-600 L/h 100-1000 L/h	200	Φ20	G½"
LZB-25S (with guide rod)	100-1000 L/h 160-1600 L/h 250-2500 L/h 300-3000 L/h	230	Φ32	G¾"
LZB-32S (with guide rod)	400-4000 L/h 600-6000 L/h	288	Φ40	G1"
LZB-50S (with guide rod)	0.4-4 m3/h 0.6-6 m3/h 1-10 m3/h 1.6-16 m3/h	341	Φ63	G1½"
LZB-65S (with guide rod)	3-16 m3/h 5-25 m3/h 8-40 m3/h 10-50 m3/h 12-60 m3/h	430	Φ75	G2"

Large Flowrate Flange Type (with guide rod)
Model	Measure Range	Length (mm)	Connection Type	Accuracy: ±4% Pressure: ≤1Mpa Temperature :0~60 °C
LZB-80S (with guide rod)	3-16 m3/h 5-25 m3/h 8-40 m3/h 10-50 m3/h 12-60 m3/h	533	3” Flange
LZB-100S (with guide rod)	8-50 m³/h 10-60 m³/h 14-90 m³/h 18-120 m³/h 18-150 m³/h 20-180 m³/h 20-200 m³/h 20-220 m³/h	555	4” Flange
LZB-125S (with guide rod)			5” Flange
LZB-150S (with guide rod)			6” Flange
LZB-200S (with guide rod)	20-200 m³/h 25-250 m³/h 30-300 m³/h 35-350 m³/h 40-400 m³/h	830	8” Flange
LZB-250S (with guide rod)			10” Flange
LZB-300S (with guide rod)			12” Flange

1. Shipping Ways:
1. By express: DHL, TNT, UPS, FEDEX, EMS etc, usually for small or regular and urgent orders;
2. By sea transportation for bulk quantity;
3. By air transportation.

3. Payment:
We accept TT payment(Bank Transfer), L/C, Western Union & Cash, etc..
Please remember to send us scaned recipt of T/T or other payment copy by Email, this will speed up the processing of your order.

4. Warranty
All our products have at least 1 year warranty. If there’s any quality problems during the warranty period, we ship new spare parts for replacement free for you, or we accept return policy.
