Specifications
automatic water camlock quick coupling filterwater camlock quick coupling
Constant filtering
High efficiency backwash
Cor
automatic water camlock quick coupling filter
Advantage of Filtering SystemAdvantage |
Characteristic |
| Constant filtering efficiency | As core element of filter, the uniformity of groove style filtering superposition piece reaches to international first rate standard. The filter is in effect for all kinds of suspension impurity including inorganic and organic impurity. |
| High efficiency backwash, energy and water saving | The unit of backwash will be finished for 7-20 sec only. In general the amount of consumed water in backwash is less than 0.5% of amount of filtering water. For viscosity impurity, high effective washing also be reached. The suitable scope is wider. |

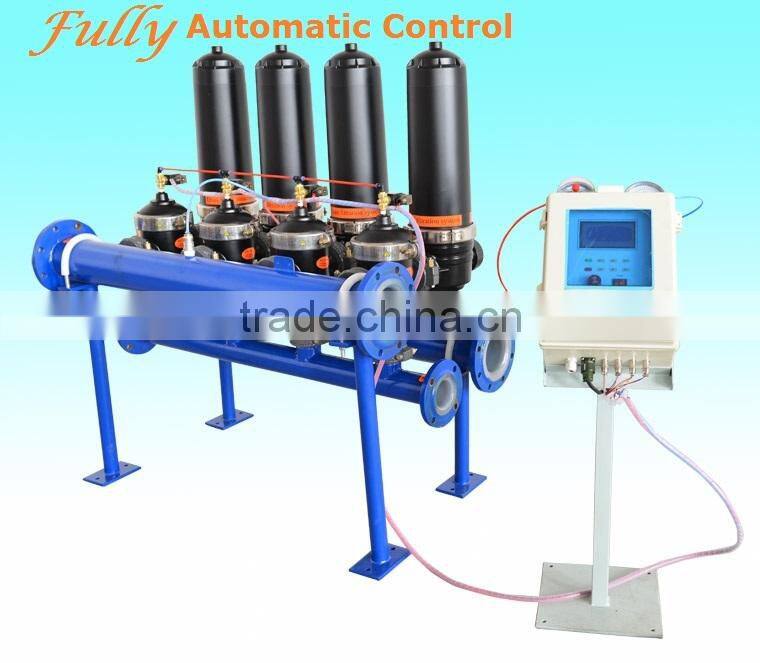

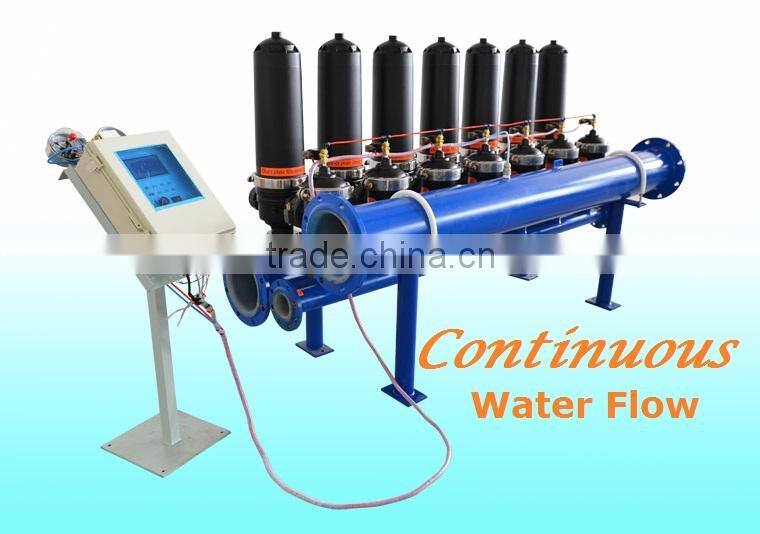

| Full automatic control, flow continuously | The filtering and backwash may be carried out at the same time. The loss of pressure and flow rate produced by automatic maintenance of water camlock quick coupling is less. The backwash is carried out in turn one by one and the others work normally. |
| Low cost, reliable and long service life System | The water camlock quick coupling has been identified through IS9002 international quality water camlock quick coupling. And all the products are tested overall before sold. It's almost without daily maintenance, installation and convenient operation, reliability transportation. |
Application |
Description |
Function |
Industry |

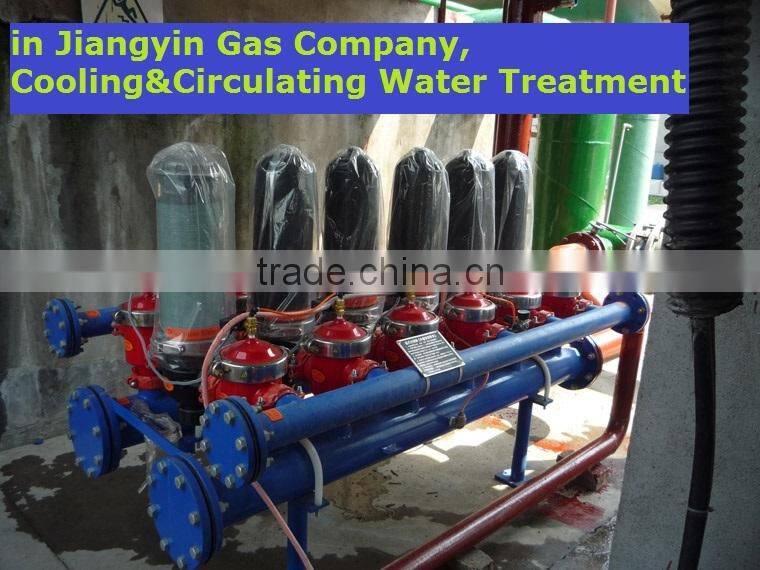

Cooling circulating water treatment |
Cooling water equipment, instruments and products cooling water |
It can solve the block problem effectively and reduces energy consumption and dosing amount too and prevent from stopping caused by trouble and reduce the expense of water camlock quick coupling maintenance. | Steel and iron, power plant, petrochemical, plastic, running water primary filtration, machinery, etc |
| Membrane water treatment | Membrane water camlock quick coupling protection |
The purpose of protecting precision element of filter and prolonging its life can be reached. | Water treatment |
Water treatment |
Spraying water treatment, protection granulated substance ponders, filter element, filter pocket, ion-exchange reactor, etc. |
Save total amount of water to be used and improve the quality of water and reduce or avoid sewage discharging directly to lead environmental pollution. | Electric power, chemical, automotive, paper-making and other industries |
Seawater filtration |
Pre-treatment of seawater desalt |
Remove impurity and ocean microorganism in seawater. The property of salt resistant and anticorrosion of plastic filter is better than metallic filter with expensive cost. And prolong its lift. | Water treatment |
| Other chemical fluid | Solvent, emulsion, etc. |
Meet the production requirements. Protect equipments. | All industries |
Drip irrigation filtration |
Cotton, fruit trees drip irrigation filter |
Protect drip outlet |
Large areas of crops land |
Main Use of Product and Solution:
1. Full flow or bypass filtering of circulating water for cooling tower:
It can solve the block problem effectively and reduces engergy consumption and dosing amount too and prevent from stopping caused by trouble and reduce the expense of water camlock quick coupling maintenance.
2. Intermediate water reuse, sewage pre-treatment:
Save tolal amount of water to be used and improve the quality of water and reduce or avoid sewage discharging directly to lead environmental pollution.
3. Pre-treatment of seawater desalt:
Remove impurity and ocean microorganism in seawater. The property of salt resistant and anticorrosion of plastic filter is better than metallic filter with expensive cost.
4. Primary filtering before super filtering and reverse osmosis membrane:
The purpose of protecting precision element of filter and prolonging its life can be reached.
5. Main applied industries:
Chemical industry, electric power, mechine building, processing of foodstuff and drinking, plastic, paper-making, mining, metallurgy, textile, petrochemical, environment, golf course, agricultural water saving, automobile, tap water, etc.

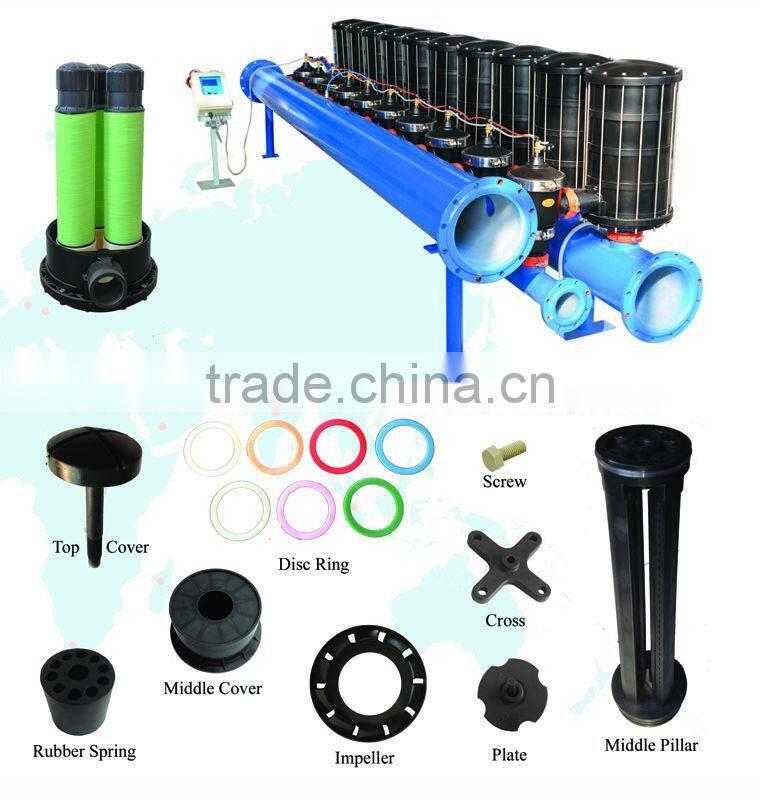

Working Principle for Superposition Piece Disk Style Filter
The filtering superposition piece is a carrier for the mixture treatment. It superimposes by a group of a double-sided belt different direction trench's plastic disk sheet. While water passes through filtering superposition piece, under the action of spring and hydraulic the filtering superposition piece will be pressed closely, then they'll form numerous crossing of superposition piece. And impurity granule will be withheld at those crossing. The width of lamination is 12-14mm. It's made of high-quality engineering plastic, high wear resistance. Filtration accuracy depends on the depth and number of grooves.

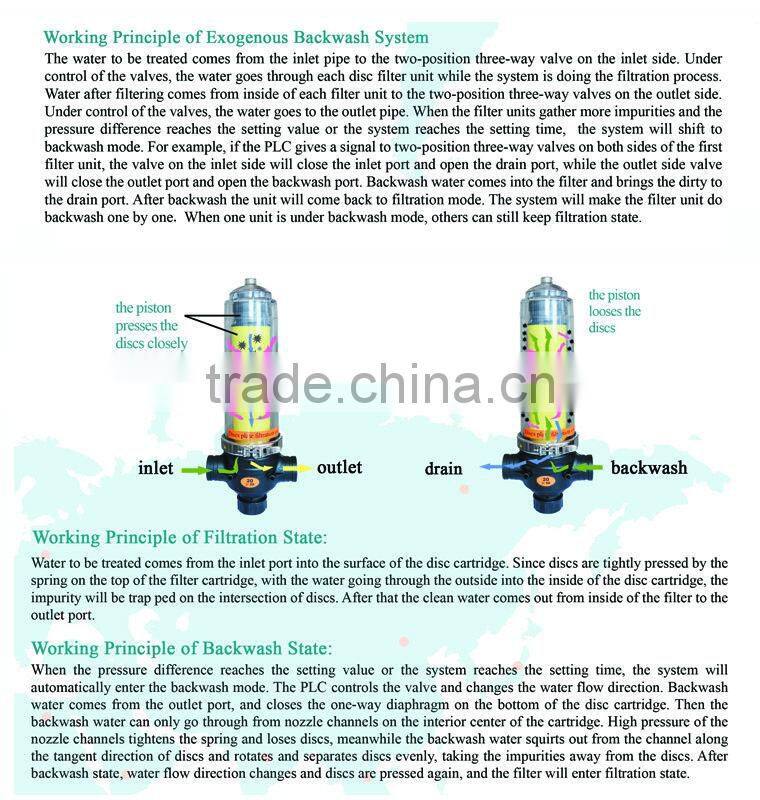

Principle at Filtering Phase
Stream will enter into the inner of filter through water inlet of filter. While water passes through filtering superposition piece, under the action of spring and hydraulic the filtering superposition piece will be pressed closely and impurity granule will be withheld at crossing of filtering superposition piece. The filtered water will flow out through main canal. At this time one-way diaphragm valve is at open state.
Duoling Water Treatment Factory will be based on the spirit of "innovation, practical, win-win", carry forward the spirit of "unity and hard work" and develop with colleagues in the water industry.
