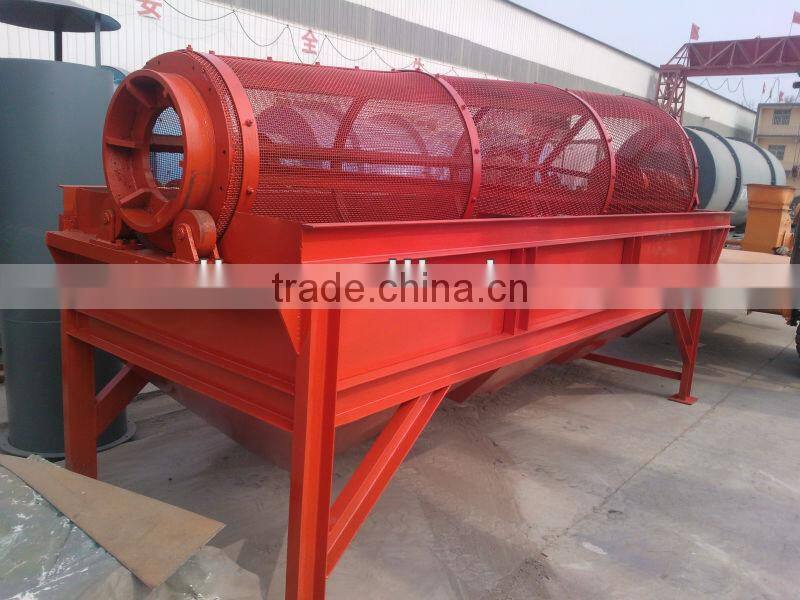

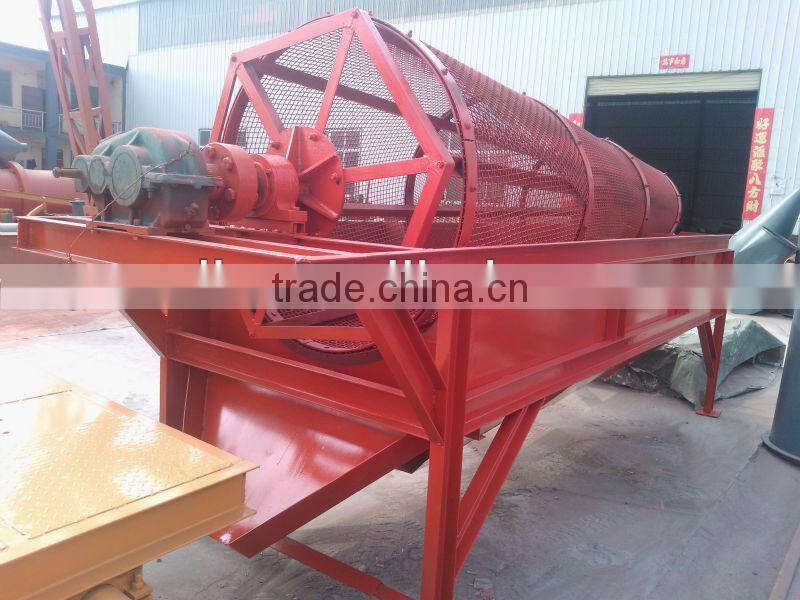

Heavy Duty Trommel Sieve for Nonferrous Ore

Heavy Duty Trommel Sieve for Nonferrous Ore thumbnail-1
Heavy Duty Trommel Sieve for Nonferrous Ore photo-1
US$ 3,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Linear
Application:
Ore
Contact Supplier Request Quote Chat Now
Zhengzhou Dahua Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Linear
Application Ore
Place of Origin Henan, China
Brand Name DH

Specifications

1. Simple and dependable Eccentric type system.
2. High screening capacity.
3. High durability.

Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.

♦Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.

♦Chemical, Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.

♦Metallurgy, construction and other industries

Working Principle of Cylinder Screen:

GS Series drum screen equipment   is consisting of five parts as drum, frame, hopper, reducer and motor. After the material into the drum, on one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes. The different materials fall into different hoppers and then are sent to different finished product stacks by manpower or belt conveyor.



Heavy Duty Trommel sieve for nonferrous ore

Ore cylinder screen Main technical parameters:

Model
Gs01
Gs02
Gs03
Gs04
Length
3m
4m
5m
6m
Input  diameter (mm)
φ660
φ660
φ880
φ880
Discharging opening diameter
(mm)
φ1300
φ1300
φ1700
φ1700
Drum rotation r / min
20
20
18
18
Capacity  m3 / hr
10-15
25-40
35-45
40-60
Motor
Y112M-4
Y132S-4
Y132M-4
Y160-4
 power   (KW)
4
5.5
7.5
11
Reducer
ZQ25-31.5-I
ZQ25-31.5-I
ZQ35-40.17-I
ZQ40-40.17-I

Heavy Duty Trommel sieve for nonferrous ore
