Specifications
stone/sand production line1. China famous Brand
2. Professional with 20year exprience
3. Offer technicial suppport
100t/h New Sand Making Production Line/Sand Making Plant (whole set)
Sand Making Production Line (whole set) - Introduction
This production line is composed of feeder machine, jaw crusher, counter-attack crusher, "Stone strike stone" sand making machine, vibrating screen, sand washer, belt conveyor, centralized electric control and so on. In order to meet the different needs of customer, it can be equipped with a complete set of cone crusher, the dust removal equipment and so on. The production line can be used in many kinds of materials like limestone, granite, basalt, river stone, cobblestone, the gangue and manual sand making work. It is applied to the water and electricity, building, building materials, highway, urban construction.
Sand Making Production Line - Working principle
The material (limestone, granite, basalt, gneiss, river stone, cobblestone) will be fed into the jaw crusher to be crushed preliminarily. The material after be thickly crushed preliminarily will be transported to the counter-attack crusher to be crushed further by the belt conveyor. The stone material after be crushed twice will be transported to "Stone strike stone" sand making machine to be crushed once more. The crushed stone material will be screened out the different specification by the vibrating screen through the belt conveyor. The qualified finished product will be transported to the finished product storehouse by the belt conveyor and the unqualified stone returns to the "Stone strike stone" sand making machine through the belt conveyer to be crushed once more. It can form the close circulated crushing.
Sand Making Production Line - Performance Features
1.High automatic
2.Low consumption 3.Fine and even
4.Low cost 5.Low pollution
This production line has the high automatization, high efficiency production, low cost, energy conservation, low pollution, the finished product granularity even, good grain size which conform to the National high speed materials requirement. This selection of equipment of the production line is mainly decided by the specification, output and the customer request. We can provide the customer with the comprehensive technical process and technical support also may design the non-standard parts and so on according to the installment condition of the site.
If you want to get the price, please send us the detailed materials information, such as the hardness of raw materials,feeding size, you required output size,capacity and other special requirement.Our engineer will choose the optimum type and our saleman will send you the resonable price.
Technical parameters of movable mobile stone crusher for sale
| Model | HX938E69 | HX1149E710 | HX1349E912 | HX1349EW86 | HX1349EW110 |
| Transportion(without and with length diesel generator)(mm) | 12600 | 13500 | 15500 | 14600 | 15500 |
| Transportation Width (mm) | 2550 | 2550 | 2950 | 2550 | 2950 |
| Transportation Height (mm) | 3870 | 4500 | 4500 | 4500 | 4500 |
| Maximum Length (mm) | 12500 | 14000 | 14600 | 14600 | 15500 |
| Maximum Width (mm) | 2900 | 2950 | 3300 | 3300 | 3300 |
| Maximum Height (mm) | 4100 | 4900 | 5300 | 5300 | 5700 |
| Weight (t) | 39 | 57 | 83 | 65 | 92 |
| Tire Configuration | Dualaxial | Dualaxial | Dualaxial | Dualaxial | Dualaxial |
| Jaw Crusher | Pe600×900 | Pe750×1060 | Pe900×1200 | PEW860 | PEW1100 |
| Maximum Feeding Size (mm) | 480 | 630 | 750 | 730 | 940 |
| Discharge Opening Size (mm) | 65-160 | 80-140 | 100-200 | 75-225 | 150-275 |
| Capacity (t/h) | 90-180 | 110-320 | 220-450 | 150-500 | 300-650 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 | ZSW490×130 |
| Main Belt Converyor | B800×835M | B1000×9.5M | B1200×10.5M | B1200×9.5M | B1200×9.5M |
| Side-opening Belt conveyor(Optional) | B500×3M | B650×4.5M | B650×4.5M | B650×4M | B650×4M |
| Genset(Optional) (kw) | 200 | 250 | 270 | 320 | 400 |
| Iron Separator (Optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 | RCYD(C)-12 | RCYD(C)-12 |

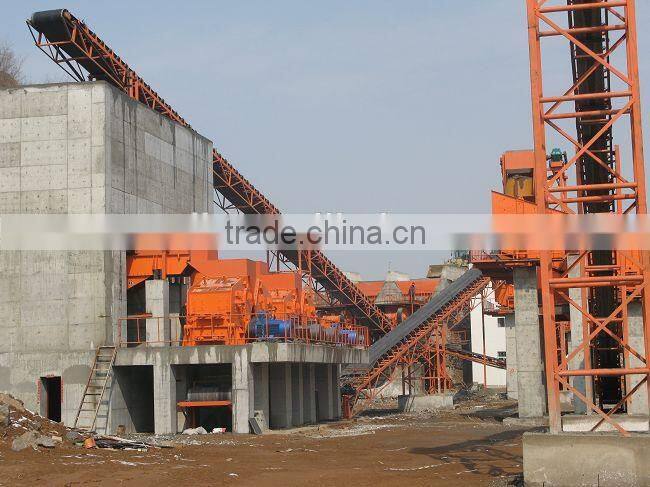

The picture of Sand Making Production Line
Please pay attention the below if you want to purchase our stone crusher:
1)What materials do you want to crush,is it soft stone (like limestone ,dolomite) or hard stone (like granite ,basalt ,river stone ,etc)?
2)What’s the maximum and minimum feed size of the raw material ? 3)What’s your expect granularity of the final products ? Normally road construction ,it is 0-40mm,while for aggregate ,it is 0-20m. 4)What’s your expected capacity (ton per hour )?) 5)If you are a distributor,please tell us your target market or your customers’ demand . Are you looking for a complete production line or just sets of impact crushers?
Full and perfect service
1. Pre-sale services: enthusiasmWe provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2. Sale services: servantSend technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3. After-sale services: faithfulnessTo establish long term friendship, we will regularly pay return visit to customers.
Our Service and Payment Terms:
1. We usually accept T/T, L/C;
2. T/T: 30% in advance as down payment, the balance before delivery;
3. We take pictures of finished products before delivery.
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
If you are new for this business, we will help you
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
WHAT WE CAN DO FOR YOU
We are dedicated to helping clients to achieve the following targets:
- Lower cost per ton
- Higher operational security and efficiency
- Higher capacity utilization and productivity
- Lower noise, lower consumption
- Longer service life of the assembly
- Meet the latest environmental standards
- Promote the sustainable development of mining business
- Optimize the utilization of outfit and personnel
- Increase profitability

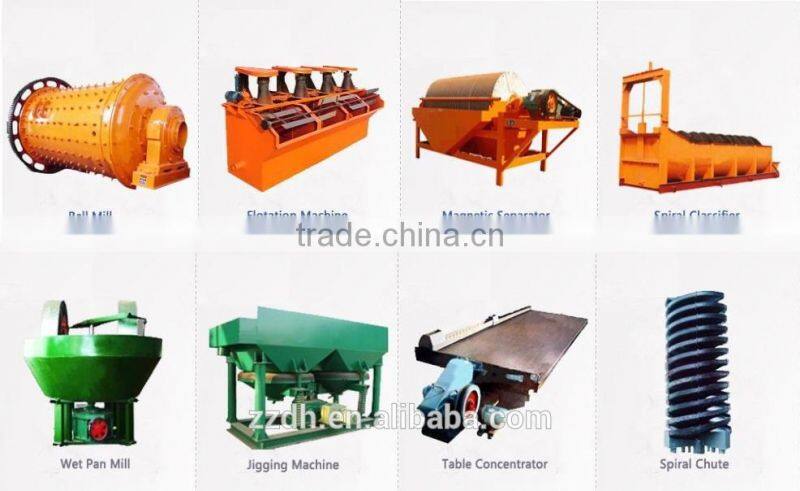

More product from our company!
Superiority of Dahua company
- World's leading service capability
- Most complete production line
- The best device management and practice guidances
- Fast, easy and convenient routine maintenance can reduce the downtime
- World's most advanced technology can customize high quality equipment for you
- Hongxing mobile crusher machine can be equipped with various working devices to achieve the multiple purposes of one unit, truly saving investment costs for you
More information, you can contact us by email:
