1. The application of good quality vibration table in Zhengzhou factory
Shaking table is one of the mineral separation equipment of gravity concentrator. It is easy to be operated and can produce high grade concentrated ore, secondary concentrated ore, middling’s and gangue, etc. at the same time. It is widely used to separate tungsten, stannum, niobium, other rara metal and noble metal ores; it can also be used to separator iron, manganese minerals, coal, and so on.
2. The construction of good quality vibration table in Zhengzhou factory

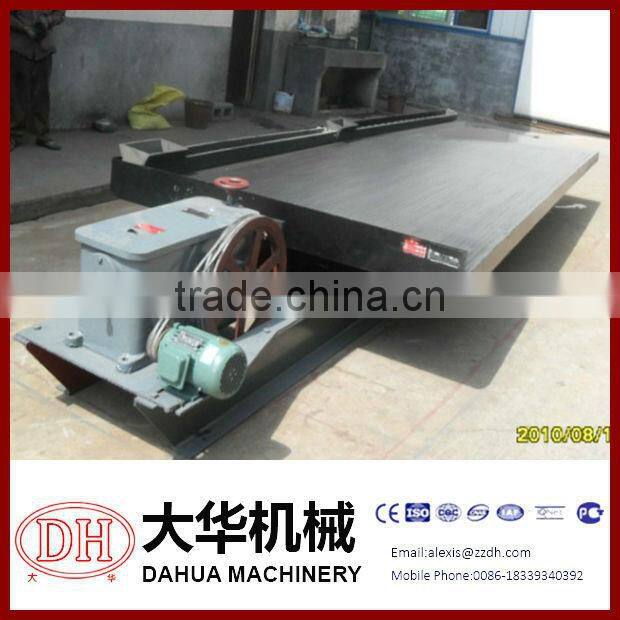

Shaking table is made of machine head, motor, adjusting gradient device, bed, bunker, water tank, rifle bar and lubrication system.
3. The working principle of good quality vibration table in Zhengzhou factory

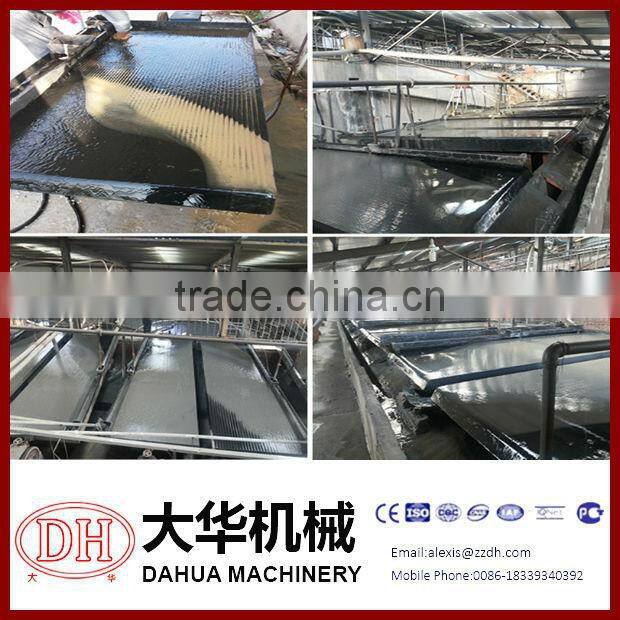

During the beneficiation process, the mineral particles from the angle above the bed surface go to the slot, meanwhile by feedthrough fishing water transversely. In this way, under the effect of gravity, the transverse direction running water impulsive force, and the inertia and friction created by the reciprocation symmetry of movement of the bed surface, the ore grains are separated according to the proportion and the granularity, and makes the transversal motion along the inclined surface of bed. Therefore there grains with different proportion and different granularity fly heading different direction, and dischare separately from the ore concentrate end and the debris side’s two different areas, finally divided into the ore concentrate, the middling and the debris.
4. Technical Specifications of good quality vibration table in Zhengzhou factory
Specification |
L-S (6-S) |
Water quantity t/h |
0.4-0.8 |
Stroke mm |
10-30 |
Surface size of table mm |
152×1825×4500 |
Times/min |
240-360 |
Motor kw |
1.1 |
Landscape angle |
0-8 |
Capacity t/h |
0.5-1.2 |
Feed particle mm |
2-0.074 |
Weight (kg) |
1012 |
Feed ore density % |
15-30 |
Overall dimensions mm |
5454×1825×1242 |
The certification of shaking talbe
Other hot selling machines:
