Specifications
steel bar cutting machineBrand:HengYuan
power:3kw
Speed:28times/min
cutting dia:6-50mm

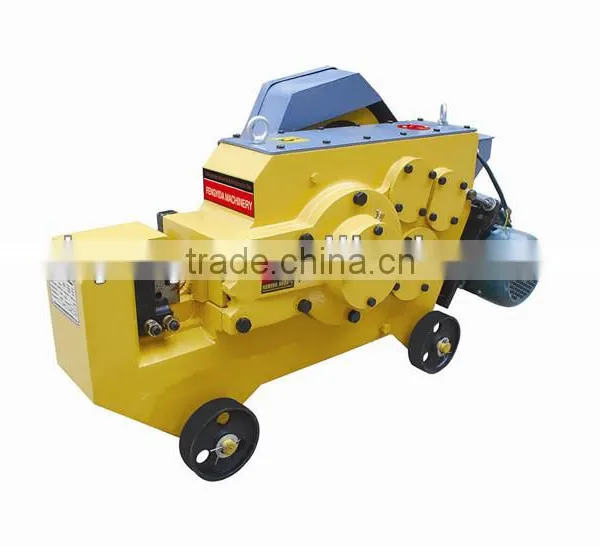

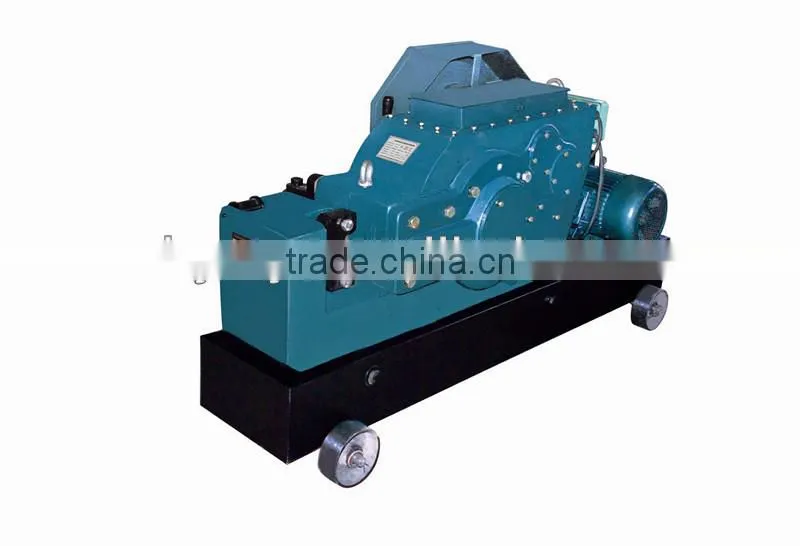

steel bar cutting machine
Steel cutting machine fit to cut a lot of steels used in various concrete structures of construction projects, such as common carbon steel, hot and cold-rolled round steel, deformed steel bar, as well as flat steel, square steel and angle steel (special cutting tool is needed). It is capable of cutting the steels with a diameter of 6-50mm, and has a lot of advantages such as perfect lubricating performance, low power waste, simple operation process, high efficiency and convenient moving property.
Technical date of this machine
flat/square/ steel bar cutting machine | ||||||
No. | Item | Model | ||||
GQ40B | GQ40A | GQ50 | RC-25 | CYQ50A? | ||
1 | cutting size | Φ4-40mm | Φ4-40mm | Φ4-50mm | Φ4-32mm | Φ4-50mm |
2 | Φ4-32mm | Φ4-32mm | Φ4-42mm | Φ4-28mm | Φ4-42mm | |
4 | 50mm * 18mm | 50mm * 18mm | 50mm * 18mm | * | 50mm * 18mm | |
| speed | 28times/min | 28times/min | 28times/min | 15times/min | 28times/min |
5 | stroke | 34mm | 34mm | 40mm |
| 40mm |
6 | power supply | 3KW | 3KW | 4KW | 1.3KW | 7.7KW |
Shipping :wooden case
We can use CIF TERMS
Main spare parts
A: Cut all steel material, like ordinary carbon steel, cold & hot round steel, screwed thread steel, flat/angle/square/scrap/deformed steel.
Q:What is the control mode?
A:hand clutch / foot pedal
Q:What is the application scope?
A:hot rolled steel,cold rooled steel,carbon steel.
Q: What is the mainy appled?
A: Steel bar cutting off machine mainly applied to buildings, Bridges, tunnels, power stations
large-scale water conservancy projects for steel fixed length cut off
GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China
We will send our engineer to your country install the machine ,good after sale service.Welome to visit our factory.
