Specifications
1.Raw material:wire rod, steel rebar, round bar2.Straightening diam:6-14mm
3.Cutting length:800-8000mm
4.Speed:55m/min

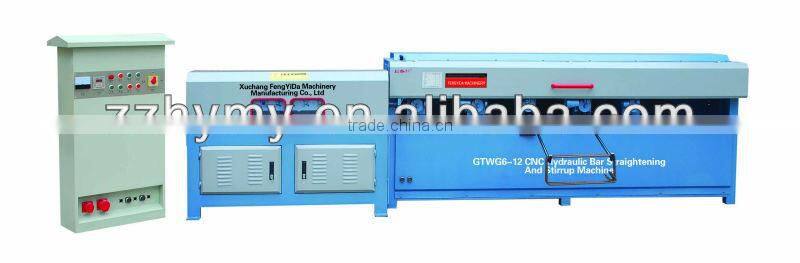

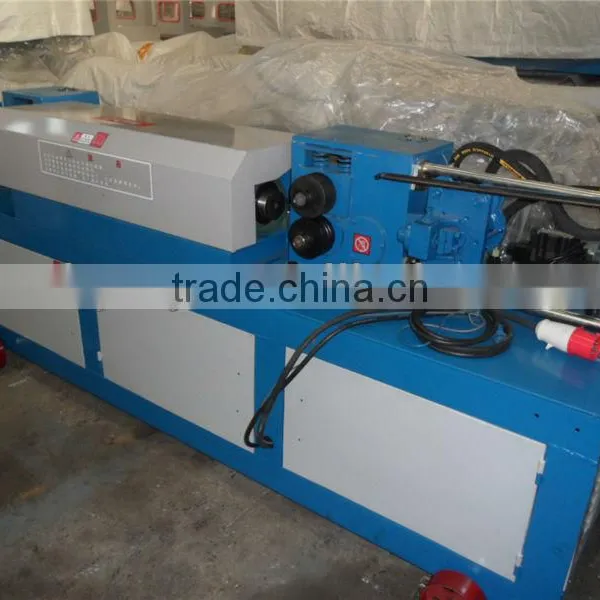

Straightening and cutting machine
---Introduction---
Straightening and cutting machine
Bar wire straightener and cutter for bar is used to straightening galvanized wire or rebar with 4mm-16mm, and then cut it into the needed length. It can do a prepare work for the wire mesh welding machine. So it is widely accepted to the factory who is dealing wire wires and wire mesh. Also widely used in construction area.
---Main parameter---
Straightening and cutting machine
Type |
GT6-14 |
GT-4-12 |
Straightening Dimension |
Φ6-Φ14 |
Φ4-Φ12 |
Wire Traction Speed |
55m/min |
55m/min |
Wire Cut Lengths |
800-8000mm(can add) |
800-8000mm(can add) |
Cutting Length Error |
±15mm |
±15mm |
Wire Straightening Degrees |
±2mm/m |
±2mm/m |
Traction Motor |
3KW-6p |
2.2KW-6p |
Straightening Motor |
11KW-4P |
7.5KW-4P |
Cutting Motor |
5.5KW-4p |
4KW-4p |
Whole Weight |
1500kg |
1000kg |
Overall Dimension |
2700×800×1200mm |
2500×800×1100mm |
---Picture showcase---
Straightening and cutting machine

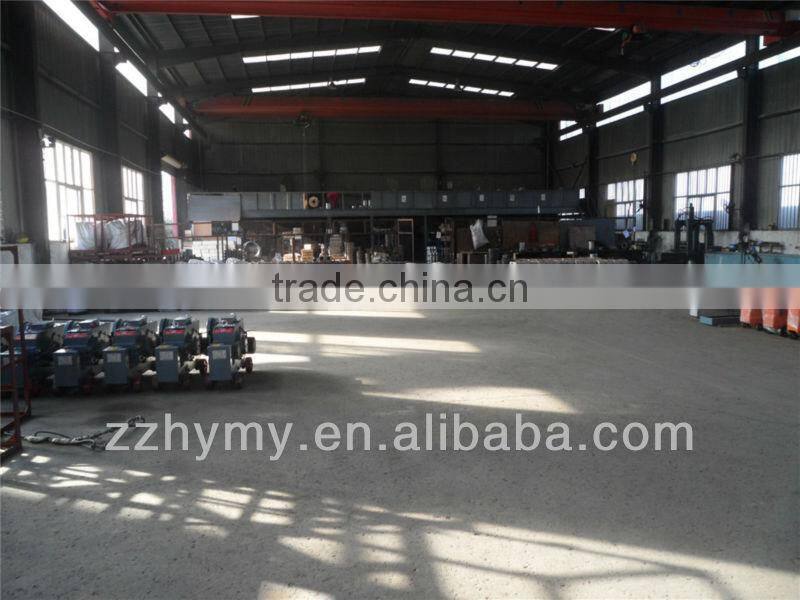

GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China
Straightening and cutting machine
1. 12 months guarantee
2. patiently response and enthusiastic service
Straightening and cutting machine
Outer packing: wooden case
Inner packing: iron shelf
Delievery details: within 15 days after reveiving prepayment
1. What is raw material?
Wire rod, round steel, screwed steel, steel rebar
2. What is machine usage?
Straightening and cutting
If you have any questions, welcome to contact me
