competive price aluminum foil food container making machine

Specifications

aluminum foil food container making machine
1.Air output equipment
2..45 ton pneumatic press
3.different shapes of container

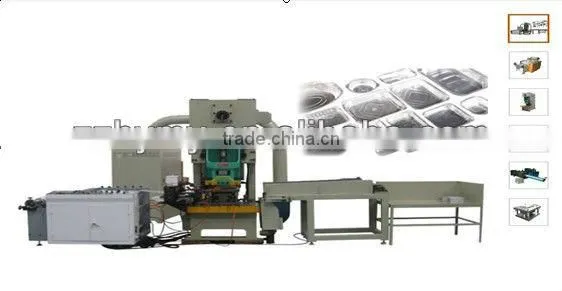

aluminum foil food container making machine

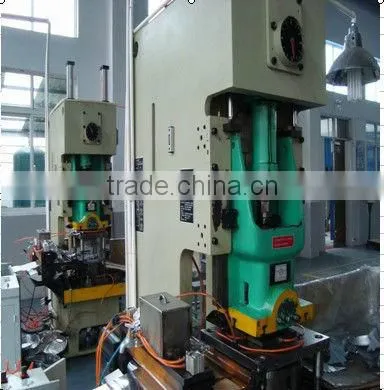

(1).High Accuracy Press



Item Numer :JF21-45T
Nominal pressure :  400KN
Slide Block Stroke:100-260mm
slide Stroke per minutes :70-50 times
Maximum Die Set Height :270-400mm
Die Set Height Adjustment:60mm
Slide Bottom Size:410X340mm
Stemhole Size:60mm* 60mm
Bolster  Surface Size:810*440mm/990*750mm
Total power:5.5KW
Weight:3800-4500 kg
Overall Dimension Before Changed :1440*1080*2300mm
Overall Dimension after Changed :1550*1150*2500mm

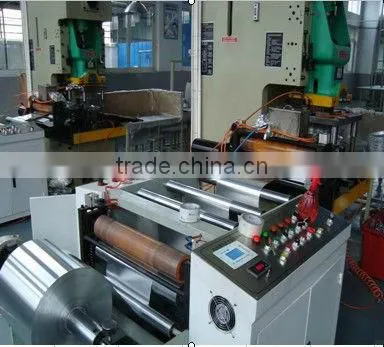

(2).Aluminum Foil Feeding Machine



Item number :XWSL-55
Max.width of ROLL:  550MM
Max.unwind roll diameter   600mm
feeding speed:0-35m/min
feeding length:20-999mm
feeding Accuracy:+-0.3mm
Working voltage:380/220v
Total power:1kw
Weight of machine: 850kg
Dimension:2000*1300*900mm

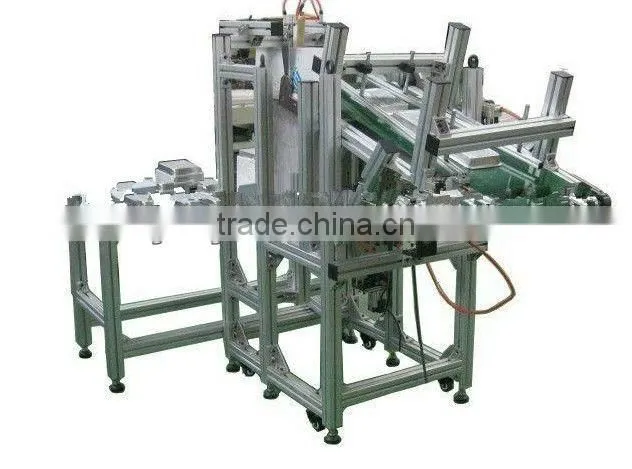

(1). Aluminum foil container stacker

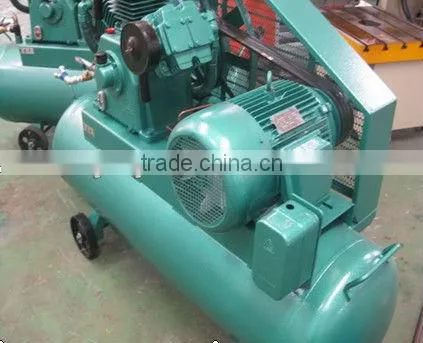

(2) air compressor





(3).Aluminum Scrap  Collecting device







(4) forklift

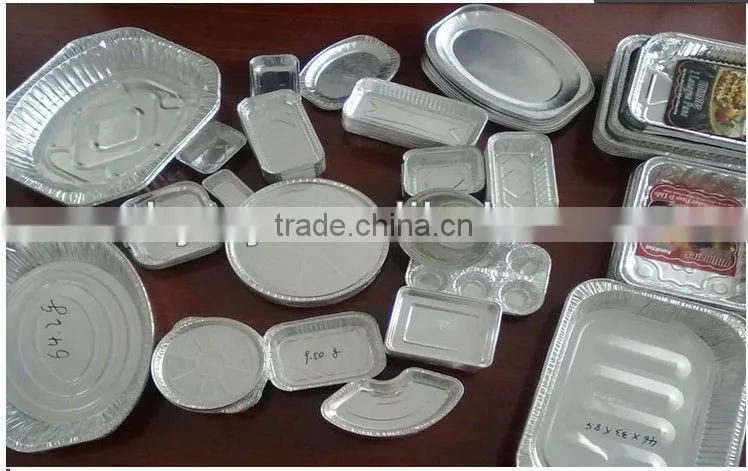

Final products shape





How can I get price ?

we often offer price list with 24hours after getting your inquiry

. If you are very urgent to get the price,

please call us by +86 15890664277 or office:+86 371 85616977 or tell us by Email at catewan at



How can I get a sample to check your quality?

Welcome to our factory for check the machine operating and quality



Can you do the machines' appearance design for us?

Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.





Could you also supply aluminium foil jumbo roll(material)?

Yes, we surely can.





What's your after-sale service?

-Our machine Warranty:

Our warranty is one year.



-Fixing or Debug service:

Our own engineers could be asked by you overseas for your requests. You can also ask your workers or yourself to our factory to learn.



-Machine parts change or fix service:

If any parts of machine are damaged not by human and under the warranty, we will send your new machine parts or fix for you for free.



The following is my contact way
