Electric Rotary Kiln Wood Drying Kiln Rotary Drying Kiln For Sale
- 15 Set / Sets per Month
- Qingdao Port
- Credit Card
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Shandong, China |
Brand Name: | Sawmill-World | Model Number: | 1T , 2T | Voltage: | 380V or as customer needs |
Power(W): | 12KW | Dimension(L*W*H): | 1.6*1.6*12m | Weight: | 20 Ton |
Certification: | ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Rotary Drying Kiln
1. Usage : Drying wood shavings or wood sawdust
2. Drying Processing :
The heat generate by hot air stove into roller , the material turn over by the lifting plate inside the roller , material evenly dispersed and sufficient contact with hot air , soon the material will arrive the effect of drying . The dried material from feed inlet move out discharge hole under the action of lifting plate and hot air . Heat discharging through above air duct by shaq dragon .
Technical Parameter
3. Technical Parameter
Technical Parameter | 2 Ton |
Production Capacity | 2Ton/Hour |
Moisture After Drying | ≤15% |
Roller Model | Φ1600mm×(L)12000mm |
Cyclone Collector | 1 Set |
Shaq Dragon | 1 Set |
Variable Frequency Motor | 1 Set (Speed :2-8y/min) |
Power | 12KW |
Belt Conveyor | 2 PCS |
Hot Air Duct | 3-5 PCS |
Support | 1 PCS |
Control Cabinet | 1 Set |
Hot Air Stove | 1 Set |
Air Inlet Temperature | 800≤ |
Weight | 20000 KG |

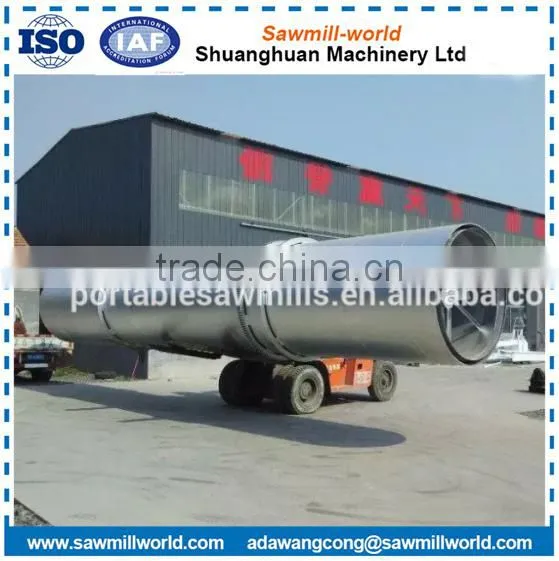

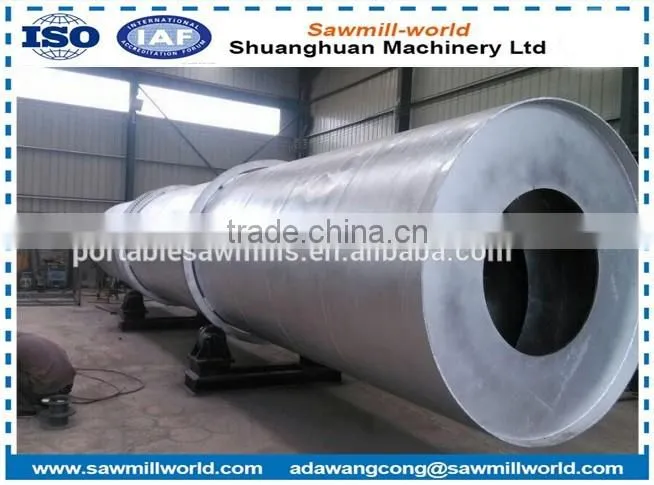

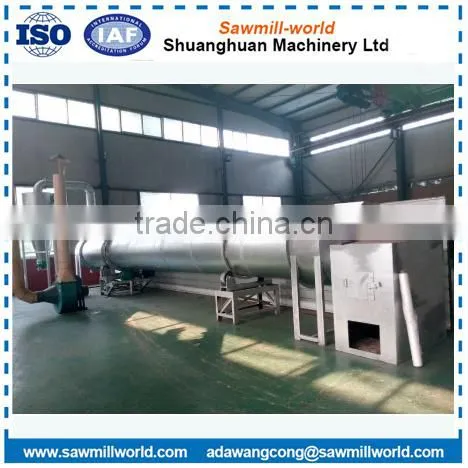

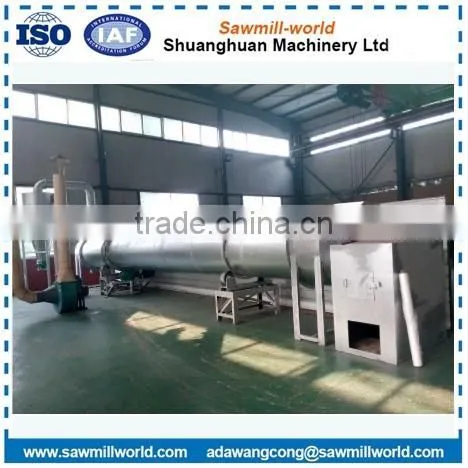

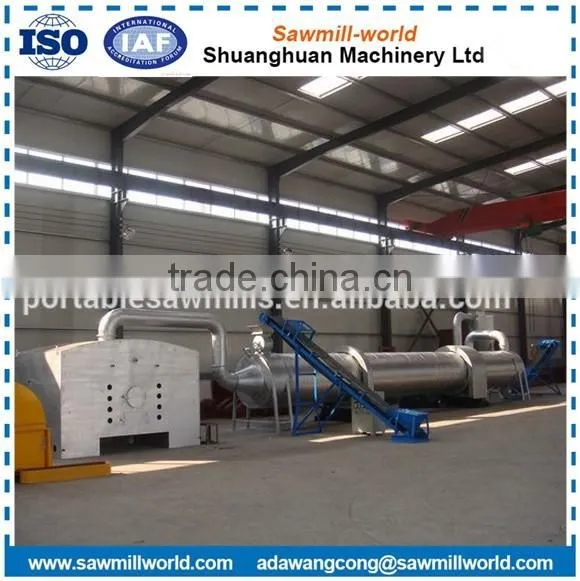

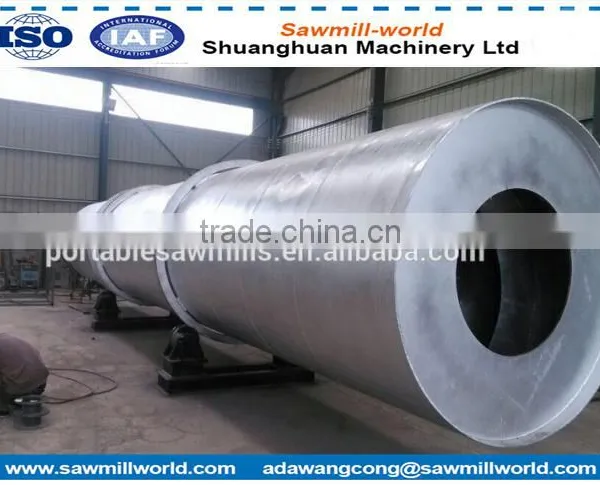

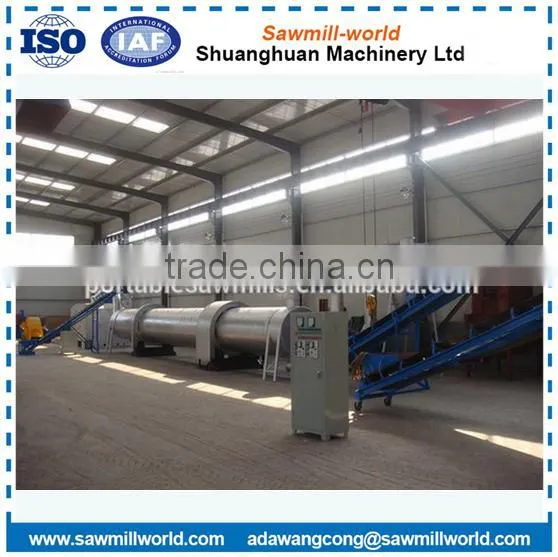

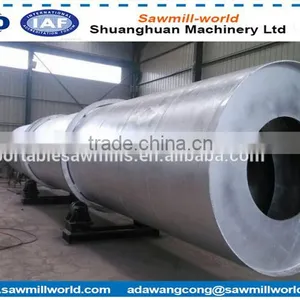

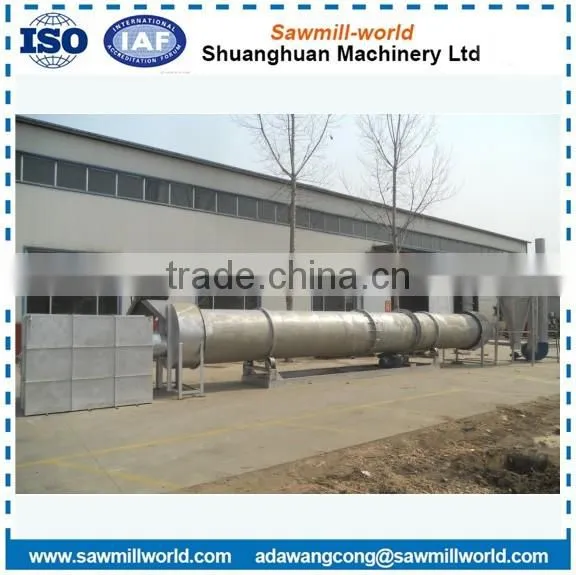

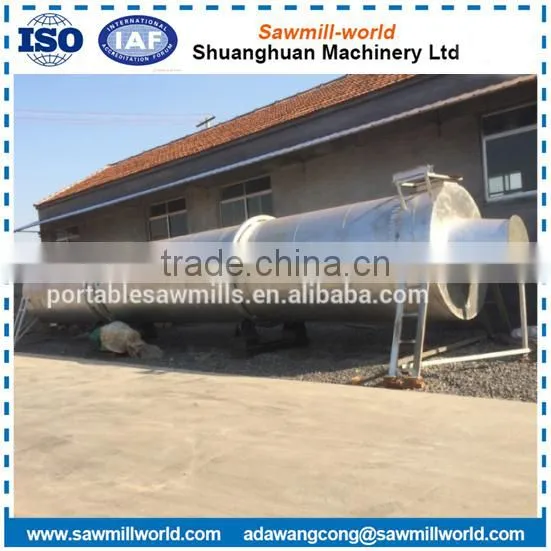

4. Rotary Drying Kiln Pictures

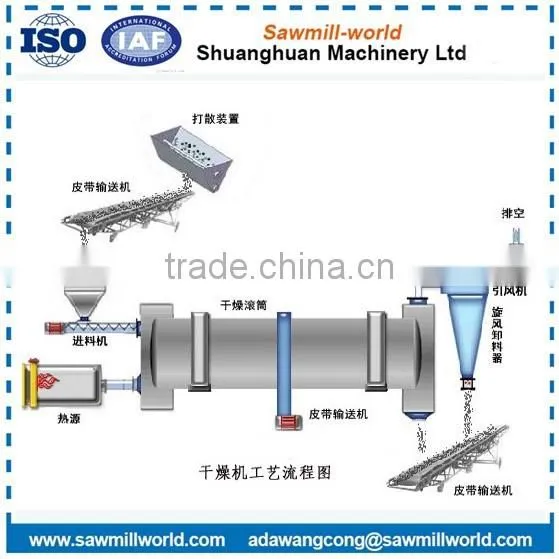

5. Rotary Drying Kiln Draft

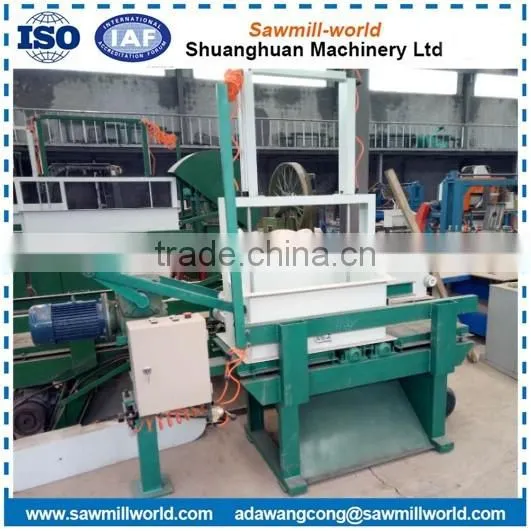

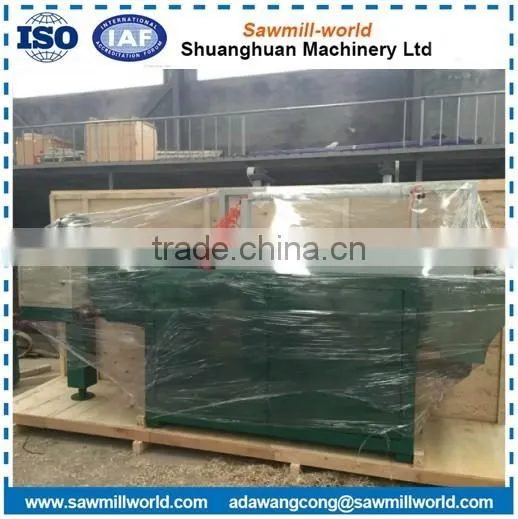

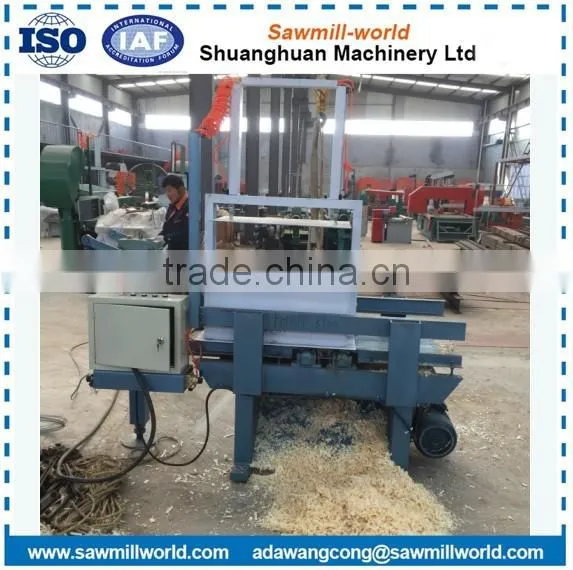

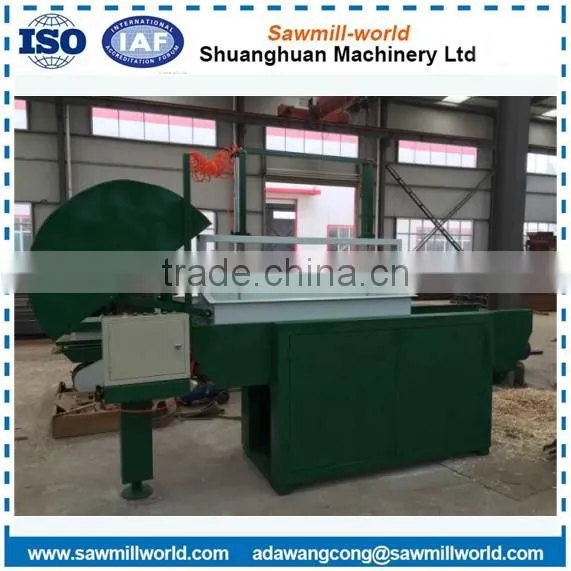

6. Related Product --Wood Shaving Machine
Wood Shaving Machine | ||||
Process wood sticks,twigs,branches,wood scraps into shaving. Adjust the size and thickness of the wood shaving. It is the material for Plywood,furniture or paper factory. Add as filler to prevent damage when transport some fragile items. Use as nest shavings filler in poultry or animal breeding. Bio-energy ignition material. | ||||
Model | SHBH500-1 | SHBH500-2 | SHBH500-4 | SHBH500-6 |
Max Processing Length(MM) | 800 | 800 | 1400 | 1400 |
Max Processing Width(MM) | 500 | 500 | 500 | 500 |
Production Capacity(KG/Hour) | 250 | 500 | 1000 | 1500 |
Axle Quantity(PCS) | 1 | 2 | 4 | 6 |
Blade Quantity(PCS) | 4 | 8 | 16 | 24 |
Blade Material | W18 High Speed Steel Blade | |||
Speed(R/Min) | 4500 | 4500 | 4500 | 4500 |
Hopper Length (MM) | 800 | 800 | 1400 | 1400 |
Lid | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
Total Power(KW) | 7.7 | 10.5 | 18.5 | 25.5 |
Shaving Depth(MM) | 1-5 | 1-5 | 1-5 | 1-5 |
SHUANGHUAN SERVICE COMMITMENT ABOUT PRE-SALES AND AFTER-SALES
SHANDONG SHUANGHUAN MACHINERY LIMITED,was established in 1985.We have 29 years
of history of providing high quality product and service.In order to make our customers satisfaction.
We have perfect pre-sale & after-sales service system.
pre-sale service:
1-Reply customer’s email or call customer back in 3 hours if missed any calls.
2-Design the best processes and programs according to customer’s usage and requirement.
3-Answer customer’s questions patiently.
On purchase service :
1-Commissioning the machines before shipment carefully.
2-Train the customer’s technician,And provide operation video and matters needing attention.
3-Arrange customs declaration, sea shipping, insurance, etc.
After-sales service :
1-Our machines’ warranty period is 12 month, We will provided spare parts for free
within 12 month,But will need customer bear the delivery cost.We charge cost price and delivery cost after the warranty period.
2-Provide the solution of the installation or use problem within 3 working hours.
3-Engineers able to install and train the operators overseas.
