Wood briquette machine

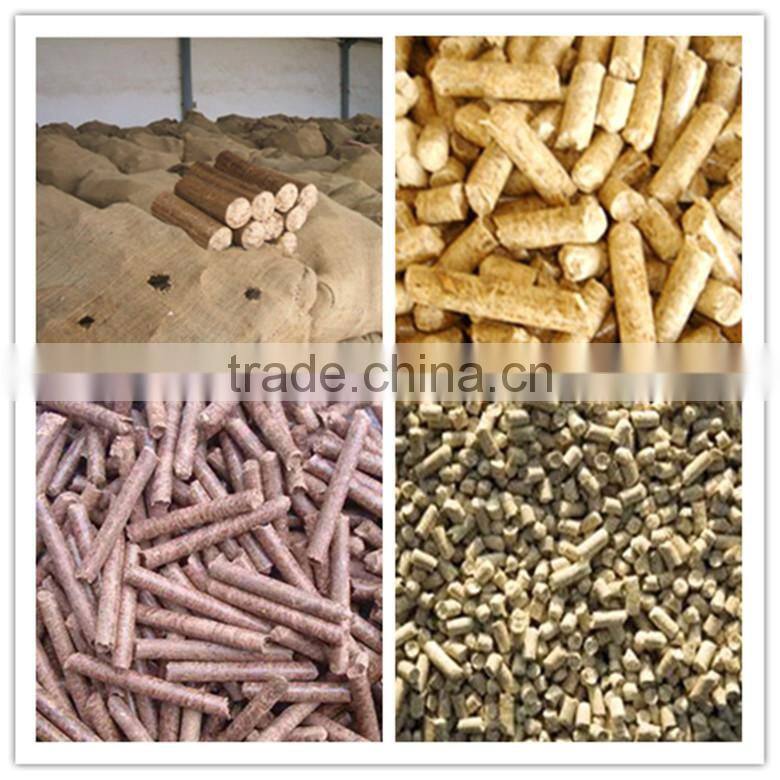

1.What's wood briquette?
"Wood briquette"is made of biomass material,biomass material need to be crusherd, pressed ,at last enhance its density up to 1.4-1.6g/m3.
Wood briquettes usually can be seen as corn stalk briquette,wheat straw briquette,sawdust briquette,bamboo sawdust briquette and toothpick briquette,cattle manure briquette and horse manure briquette,wood dust briquette,leaves pellet,etc.
2." Briquette " features
1.Briquette is consider to be new-style energy which is renewable, environmental protection,briquette is clean and low cost. Pellet (biomass briquette,biomass pellet,wood pellet) is widely used in heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source,instead of coal in boiler burning,avoid the pollution of burning the coal ,also being used as industial fuel...
2.The wood biquette has the features of high density from 0.9-1.4g/cm3,high burning rate,easy to store and transport,its calorific can up to 4200-5500kilocalorie.
3.Because of those features,the biofuel can instead of coal for biomass power generation.
3.Biomass material include:
Corn stalks, horse manure,cattle manure ,wheat straw, cotton stalks, rice straw, rice husk, peanut shell,palm fiber and palm leaves, corn cob, Tree branches, leaves, sawdust and other crops in rural areas , biomass solid waste, furfural-residue, edible fungus dregs,and Chinese herbal medicine residue etc.

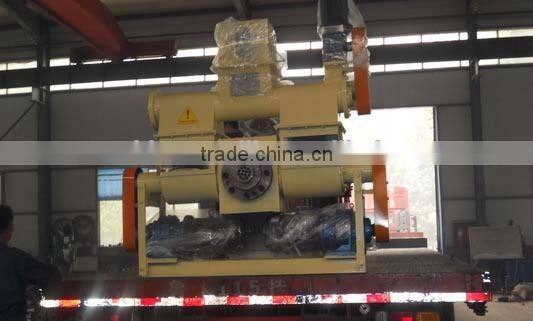

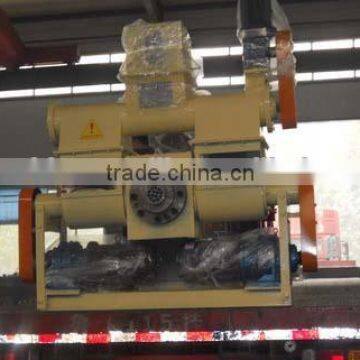

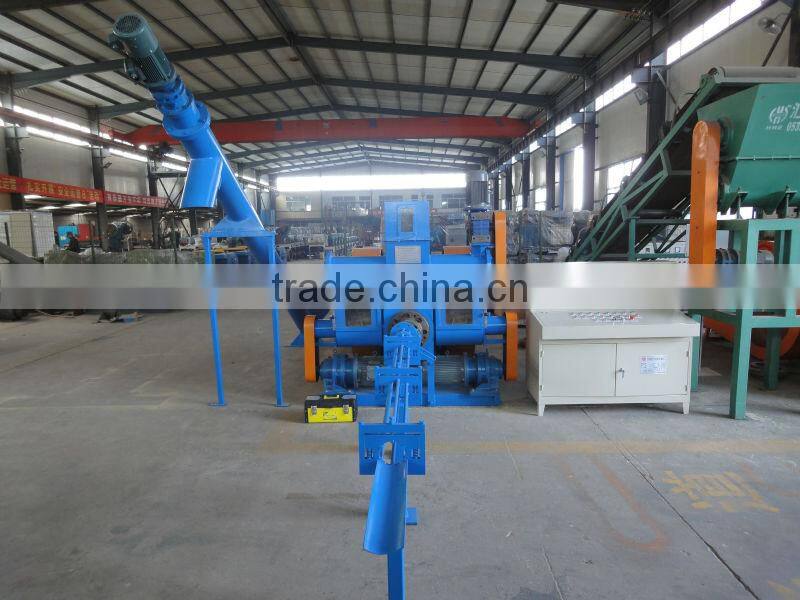

4.Wood briquette machine introduction :
1.Biomass briquette machine is suitable for various kinds of materials whose moisture content is less than 30%.The machine is fully automatic electric heating, can adjust the density of briquettes according to your demand.
2. Biomass briquette machine take advantage of pinch and friction of the flat die and gear ,get briquette by using the cellulosen of biomass material.
3.Adopt electric heating:automatic electric heating,can provide different temperature according to the raw material,also can feedt automatic and adjust the density of briquette.
4. High Automation: 1worker is enough to operate all the process.
5. main technical data
|
Name |
Structure and specification |
1 |
Equipment constitute |
Main engine |
Screw loading conveyor/belt loading conveyor | ||
depiler | ||
Control panel | ||
2 |
Product specification |
Diameter:8,10,22,30,70mm |
3 |
Capacity |
About 0.8-1.5T/h |
4 |
Density |
>1.0-1.3 |
4 |
Mould |
Using life 200-400tons |
5 |
Main engine power |
45KW |
6 |
Weight |
7000kg |
7 |
Overall dimension |
main engine 3.4mX2mX1.8m; Screw loading conveyor 4.2mX3.0mX0.7m; belt loading conveyor 5.8mX0.9mX2.8m; Control panel 1.2mX0.6mX1.2m. |
8 |
worker |
1-2 workers |
Send Inquiry to This Supplier
