Charcoal Powder Briquettes Machine Coconut Shell Charcoal Powder Machine Made In China

Characteristics
♥Charcoal Powder Briquettes Machine
♥Manufacturer ,Trade company
♥36 Years Manufacturer Experience

 Charcoal Powder Briquettes Machine

Coconut Shell  charcoal powder Machine Made In China

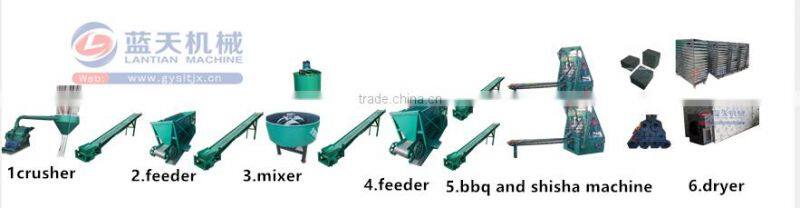

Gongyi Lantian Machanical Plant was build in the 80s, located at Gongyi City,Zhenghzou,Henan Province-China, 36 years manufacturer experience in this area.We supply different kinds of machine, including :charcoal briquette machine,charcoal powder briquettes machine, coal brick machine, charcoal making machine,shisha briquette machine ,rotary dryer, box dryer, charcoal extrude machine, biomass extrude machine.also supply the related machine to conect the full product line,such as Carbionized -charcoal crusher---binder mixer---wheel mixer---conveyor---feeder---press machine----dryer, no need to buy other auxiliary from other factory, save money and energy.

To get good quality charcoal briquettes, the raw material is very important. the best quality raw material for the charcoal briquettes is coconut shell charcoal ,the other normal material are as following :Coal , Hard wood charcoal, Bamboo charcoal, Rice husk chacoal ,Sugar fiber charcoal,Palm charcoal and other biomass raw material.

Different raw material to make charcoal powder

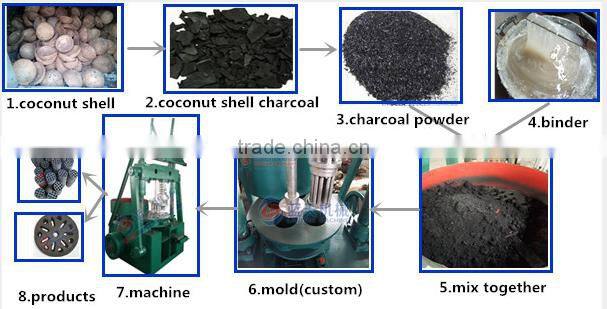

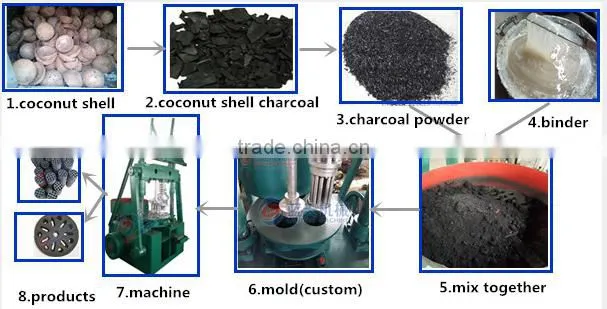

Steps to make charcoal powder briquettes(coconut shell charcoal  sample)

-Ready coconut shell

-Use carbonized stove make charcoal from coconut shell

-Use crusher crush charcoal into charcoal powder

-Use mixer mix charcoal powder with binder

-Use charcoal powder briquettes machine press products

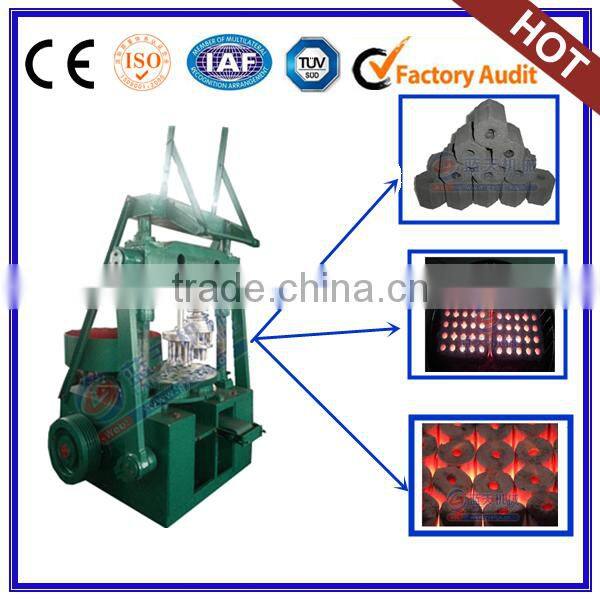

-Different molds of machine get different shape products

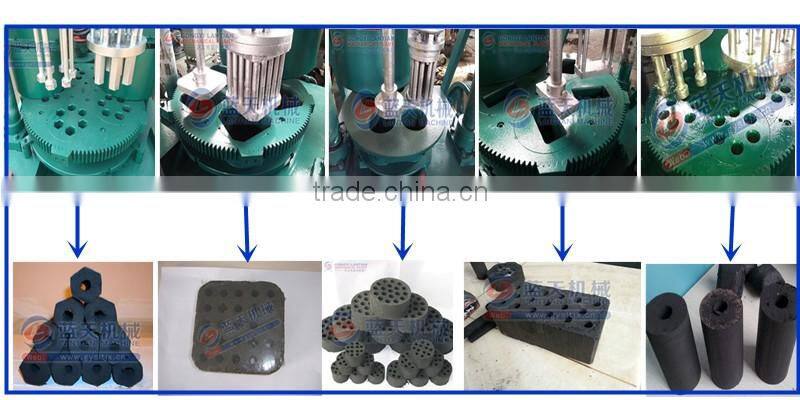

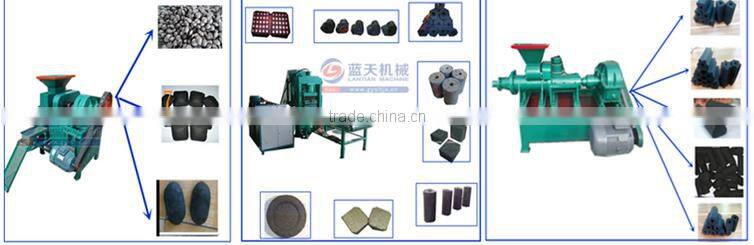

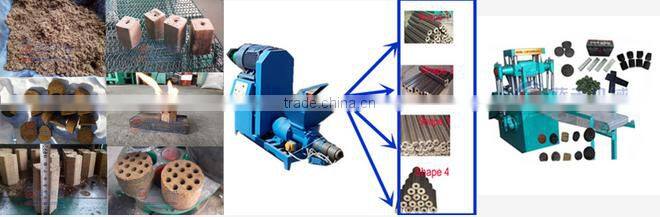

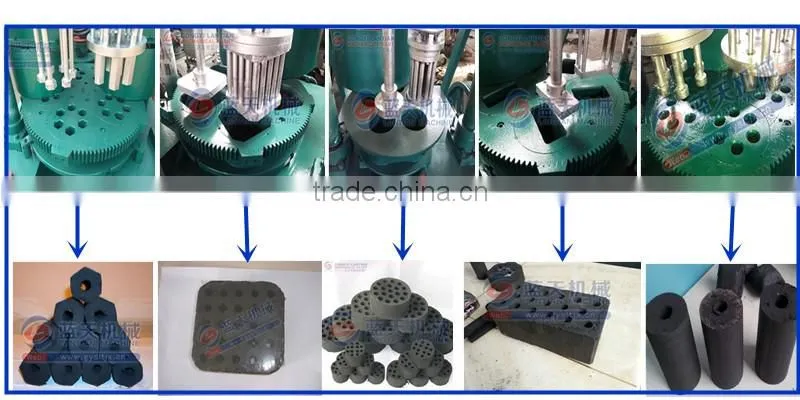

3.Different molds of charcoal powder briquettes machine

One set charcoal powder briquettes machine can produce different shape and size products by changing molds. LT series briquettes machine support custom molds for our customer.the normal molds are:Square shape, round shape, hexastly shape,rods shape, cubic shape , brick shape ,etc.

 Hexastyle shape         Square shape      Round shape     Brick shape             Rod shape

Product Overviews



The structure of charcoal powder briquettes machine

(1) Main body: it consists of bedplate and engine base, which are the frame of the machine.
(2) Rotating system: It is composed of motor, belt pulley, gear and tranmission shaft.
(3) Feeding system: It is made up of rotating shaft, hopper and stirrer. The axial gear drive the stirrer, mixing the coal evenly and sending the coal into the former.
(4) Pressing system: it consists of 4 pcs slide bar, slide beam, punch, punch holder, punch head, pressrue plate, mould end and spring. When the machine working, the slide bar will drive the slide beam, punch head goes down and pressure plate will go up, then the spring retrench, then press the coal into briquettes.
(5) Discharging system: it consist of transmission rack, belt pulley, holder and conveyor belt. The conveyor betl driving and bring the shaped briquettes out of the machine. There is some roses on the transmission holder to adjust the tightness of conveyor belt.

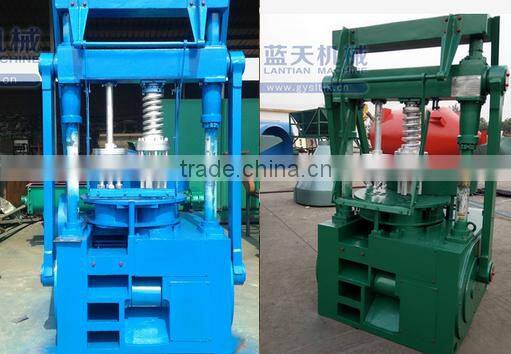

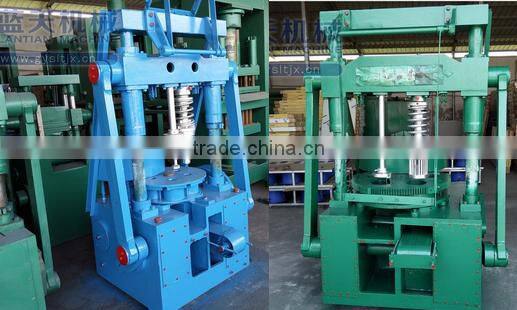

LT 140 and LT 180  type



LT220 and LT260 type

LTSC 200 type
