Characteristics
♥Charcoal Beehive Making machine
♥Manufacturer ,Trade company
♥36 Years Manufacturer Experience

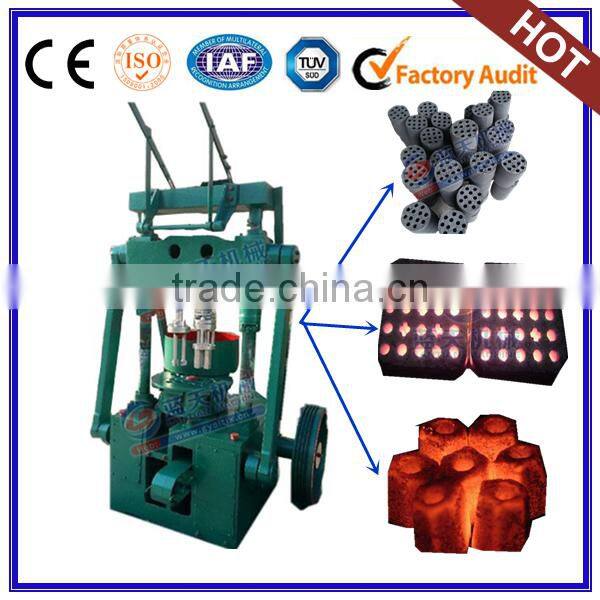

Automatic Coconut Shell Charcoal Beehive Making Machine
Carcoal Briquettes Machine
1.Company Introduction
Gongyi Lantian Machanical Plant was build in the 80s, located at Gongyi City,Zhenghzou,Henan
Province-China, 36 years manufacturer experience in this area.We supply different kinds of
machine, including :charcoal briquettes machine,charcoal beehive making machine, coal
brick machine, charcoal making machine,rotary dryer, box dryer, charcoal extrude machine,
biomass extrude machine.also supply the related machine to conect the full product line,
such as crusher---binder mixer---wheel mixer---conveyor---feeder---briquettes
machine-dryer, no need to buy other auxiliary from other factory, save money and energy.
2.Raw Material of Charcoal Beehive Making Machine
To get good quality charcoal Beehive briquetes, the raw material is very important. the best quality raw material for the charcoal beehive making machine is coconut shell charcoal ,the other normal material are as following :coal ,hard wood charcoal,bamboo charcoal,ri shell charcoal.

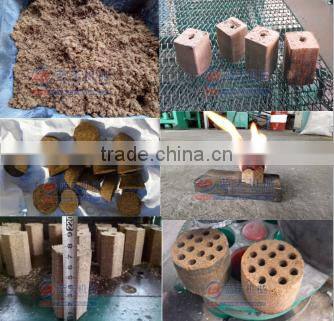

With the development of the machine, some biomass raw material can also pressed different kinds bricks.such as rice husk powder, sawdust,coconut shell powder,wood chips or branches . but it should add the special raw material(secret),to increase its density and make it easy shaped.

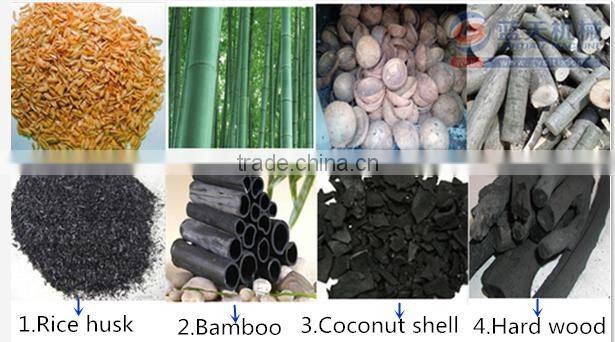

Different raw material
Steps to get beehive briquettes from coconut shell
-Ready coconut shell
-Use carbonized stove make charcoal from coconut shell
-Use crusher crush charcoal into charcoal powder
-Use mixer mix charcoal powder with binder
-Use charcoal beehive making machine working
-Different molds of machine get different shape products.
-According to different country weather choose use the dryer
3.Different molds of charcoal beehive making machine
One set charcoal beehive making machine can produce different shape and size products, its depend changing the molds. LT series briquettes machine support custom molds for our customer.the normal molds are:Square shape, round shape, hexastly shape,rods shape, cubic shape , brick shape ,etc.
Hexastyle shape Square shape Round shape Brick shape Rod shape
Charcoal beehive making machine
| Model | Motor |
Capacity for brick shape |
Capcaity for rod shape |
Size of round shape |
Height of round shape |
Weight |
| LT-140 | 7.5kw | 45pcs/min | 100pcs/min | ≤120x120mm | 30-80mm | 1.6t |
| LT-180 | 7.5kw | 45pcs/min | 120pcs/min | ≤160x160mm | 30-80mm | 2.0t |
| LT-220 | 15kw | 80pcs/min | 140pcs/min | ≤200x200mm | 20-90mm | 2.6t |
| LT-260 | 11kw | 100pcs/min | 140pcs/min | ≤240x240mm | 20-90mm | 3.5t |
| LTSC-200 | 15+0.75*2kw | 100pcs/min | 140pcs/min | ≤200x200mmD | 20-80mm | 3.0t |
(2) Rotating system: It is composed of motor, belt pulley, gear and tranmission shaft.
(3) Feeding system: It is made up of rotating shaft, hopper and stirrer. The axial gear drive the stirrer, mixing the coal evenly and sending the coal into the former.
(4) Pressing system: it consists of 4 pcs slide bar, slide beam, punch, punch holder, punch head, pressrue plate, mould end and spring. When the machine working, the slide bar will drive the slide beam, punch head goes down and pressure plate will go up, then the spring retrench, then press the coal into briquettes.
(5) Discharging system: it consist of transmission rack, belt pulley, holder and conveyor belt. The conveyor betl driving and bring the shaped briquettes out of the machine. There is some roses on the transmission holder to adjust the tightness of conveyor belt.
Customer from Ethiopia and Kuwait visit our factory and load machine
Single machine will packed by woodcase, load by LCL, Full product machine wipp packed by plastic or in nude, load by FCL.
Full product line for charcoal beehive making machine include those :
if raw material is coconut shell charcoal aready.just need crusher-feeder-mixer-machine and dryer.
if raw material not charcoal, first use carbonized stove make charcoal first ,then use the following line to produce bbq or shisha.
If you want know more information about the charcoal beehive making machine contact me at any time.
♦Manager:Sunshine Yu
♦Whatsapp:+8615038021962
♦Wechat:+8615038021962
Also send me those information ,then send you best quotation
1-whats your raw material?
2-whats size and shape of the fianl product you want?
3-what capacity you want for the product line?
4-whether you have strong electricity and place to support those machine?
The other briquetes machine in our factory.
Ball press machine ,Shisha briquettes machine ,charcoal extrude machine ,biomass extrude machine ,bbq briquettes machine.
