Hot Popular Screw Type Biomass Briquette Machine Extruding Machine

Characteristics

Screw Type Biomass Briquette Machine Extruding Machine

1.Low price,High quality
2.Factory direct sale
3.Automatic operate

Hot Popular Screw Type Biomass Briquette Machine

Extruding Machine

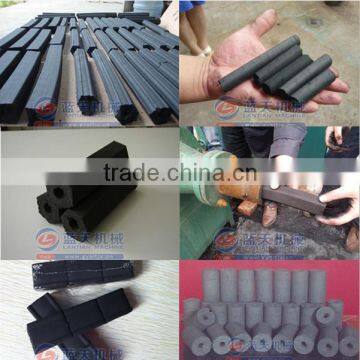

1 Show the sample

The inlet particle size of materials must be less than 3mm.We have to add suitable binder for some kind of materials for shaping easily.The moisture of materials must be moderate, and the water content usually is 12%-15%.

Shape: The outlet shapes can be round stick, hexagonal stick, rectangular stick, etc. And we can customize the different shapes according to your requirements.

Size: Toutlet briquettes can be 15-60mm, and length can be 15-80cm,

Features: the outlet briquettes are of high density, easy fire, smokeless, high value calorific, good looking, long burning, etc.

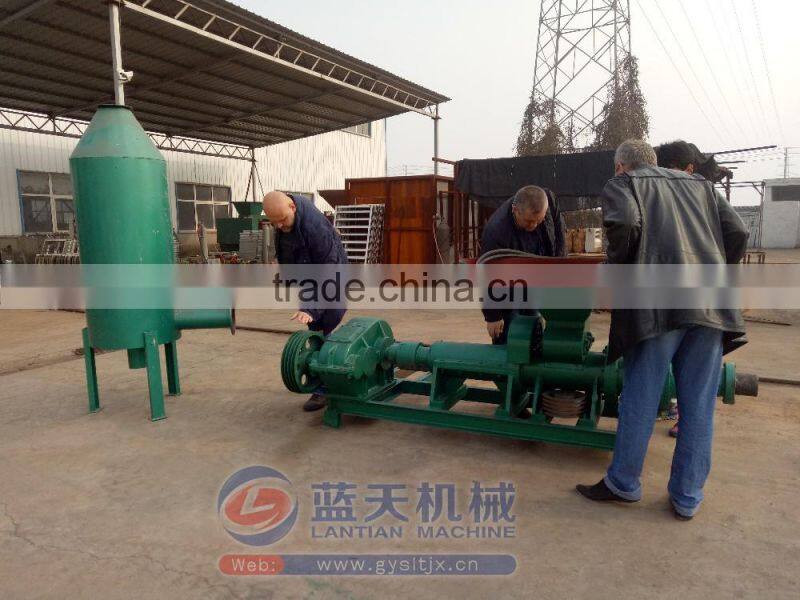

 2 Show the machine

Screw Type Biomass Briquette Machine Extruding Machine use the principle of screw extrusion to compress into cross-section, forming products are round or other shapes.The machine use variable pitch impeller, the charcoal powder to move forward, and charcoal powder is compressed.Through the front of the head of the round hole extrusion, the formation of coal rods,there are many round holes in the shape, there are a variety of charcoal rod shape,charcoal rods in the process of forward by gravity and natural fracture or cutting according your need.

1.Screw Type Biomass Briquette Machine Extruding Machine use of the principle of screw extrusion, the modulation of fine charcoal powder has a certain strength of the predetermined shape of the charcoal rod molding equipment.
2.Hobbing machine with hard tooth surface reducer, small size, high carrying capacity.
3.Impeller with thicker blade design, Each part is made by wear-resistant materials, the use of time 4-5 times higher than ordinary materials, the mold can be easier changed and maintenanced.
4.Head and cylinder in the form of articulated, maintenance can be opened, the replacement of the internal impeller and tube liner is very convenient.
5.In addition the device is small, do not need carbonization drying equipment, no steam, saving investment, reducing the area.

3 Show the mold

In order to meet the different needs of different customers,our factory has designed different types of mold and all of the molds are produced by ourselves according to the customer's requirements,meanwhile the mold materials are very durable.

Different model have different capacity. the mold adopt durable materials, on one hand can increase the density of products, high strength ,high hardness,high features, the other hand which can improve mold service life greatly.

The mold of Screw Type Biomass Briquette Machine Extruding Machine is easy to repair and install. Change mold can be different shapes, we can customize the mold as your requirements, If the mold be weared. we can provide the mold with low price and high quality.

According to your own need to set the length of the product, due to your need to cut off,With a long burning time,  smoke-free, tasteless advantages, can achieve automated assembly-line.Usually used in the production of hookah charcoal, BBQ, home heating, etc

With our special binder, the outlet briquettes are of high density, esay shaping, smokeless, easy fire, long burning, etc.The outlet shapes can be round, rectangular, hexagonal, triangular etc.Smooth surface and convenient to store and transport.

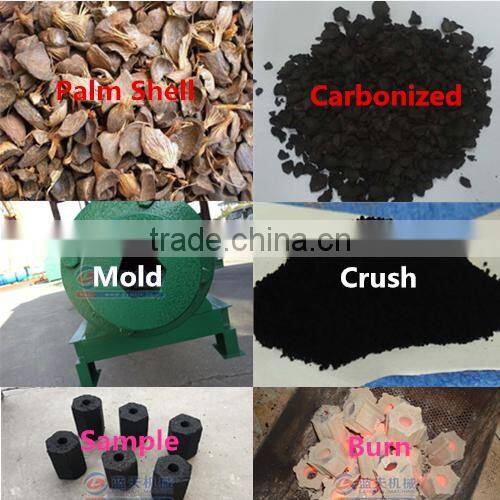

1) Crusher: Using crusher to crush raw material charcoal into fine powder,less than 3mm.

2) Screw conveyor: Use screw conveyor to convey fine powder into wheel mixer.

3) Mixer: Use liquid mixer to make binder for fine powder.

4) Screw Type Biomass Briquette Machine Extruding Machine : Shaping fine charcoal powder into different shape you want.





 6 Shipment





1. Before Sale: help you to set a purchase plan according to your requirement.
2. During Sale: accompany you to check the performance of the machine.
3. After Sale: Sent artisan to your place and help you with the installation.



7 Customer visit



We have also got the CE, ISO, SGS and other several patents.Our Screw Type Biomass Briquette Machine Extruding Machine are sold at home and abroad praised by customers highly for exampe Indonesia, Saudi Arabia, Malaysia, India, South Africa, Canada, Australia, Russia, Spain, Greece, Pakiswait, Turkey, Egypt, Sudan, Uzbekistan, Philippines, and other countries.



♠Factory information



Gongyi Lantian mechanical plant was founded in eighty 's, whice is a company specializing in the production of coal equipment, charcoal equipment, drying equipment, processing equipment, set research and development, production, sale, import and export trade as a whole.



We established of a set of complete service system and experienced service team after 30 years of exploration.Free for customers planning field, flow chart of design and installation, to provide the most professional technical training, and send technicians to guide the field installation and debugging of the equipment.So far, the company has won eight national patents, long-term exchanges and cooperation with overseas countries, won a wide range of international market.
