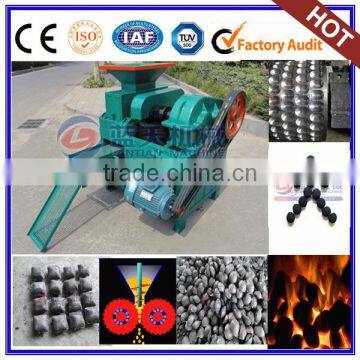

Charcoal Briquettes Press Machine Product Line
| 1.Introduction Of Charcoal Briquettes Press Machine |
Charcoal Briquettes Press Machine compress charcoal powder Making Machine compress carbon black powder into the briquettes.its also suitable for those raw material :activated carbon,coconut shell charcoal, bamboo charcoal,palm shell charcoal,ricehusk charcoal,coal powder ,sugarcane bagasse charcoal .coal slime ,etc. those raw material can be pressed into different shape and size briquettes,used to BBQ food or home cooking,and industrial energy.
|
| 2.Techanical parameter |
Techanical parameter for LTB-290 Model
| Model | LTB-290 |
| Capacity | 1-2/h |
| Weight | 600kg |
| Motor | 5.5kw |
| Max diameter for product | 50 |
| The spindle material | 45# steel |
| The roller material | 65Mn |
| The spindle shaft speed | 18turn/mint |
| oversize for main machine | 1600*1600*1500mm |
Compare For All the Model Techanical Paremeter
| Model | Motor(KW) | Capacity(T/H) | Weight(KG) | Max.Dia(MM) | Oversize(MM) |
| LTB-290 | 5.5 | 1-2 | 600 | 30 | 1600*1600*1500 |
| LTB-360 | 7.5 | 2-4 | 1500 | 40 | 1800*1800*1700 |
| LTB-450 | 11 | 4-6 | 1800 | 50 | 2000*2000*2100 |
| LTB-650 | 22 | 6-8 | 2900 | 60 | 2300*2300*2500 |
| 3.Details Of Charcoal Briquettes Press Machine |

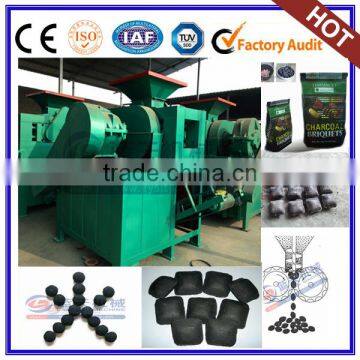

Machine structure Charcoal Briquettes Press Machine connected by main machine, feed conveyor,discharge conveyor,reducer .mold,and motor,and roller.the bearing was forging by professional tools, very strong.The raw material of roller is 65MN,mold shape and size can be custom.our factory has 4 moldels ball press machine,LTB-290,LTB-360,LTB-450 and LTB-650.Customer choose suitable suitable model machine accordrding to capacity.
| ||
| ||

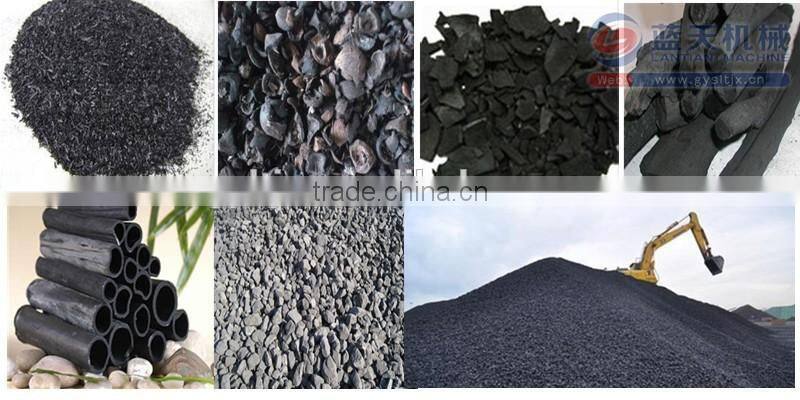

Different Raw Material Of Charcoal Briquettes Press Machine
| ||
| ||

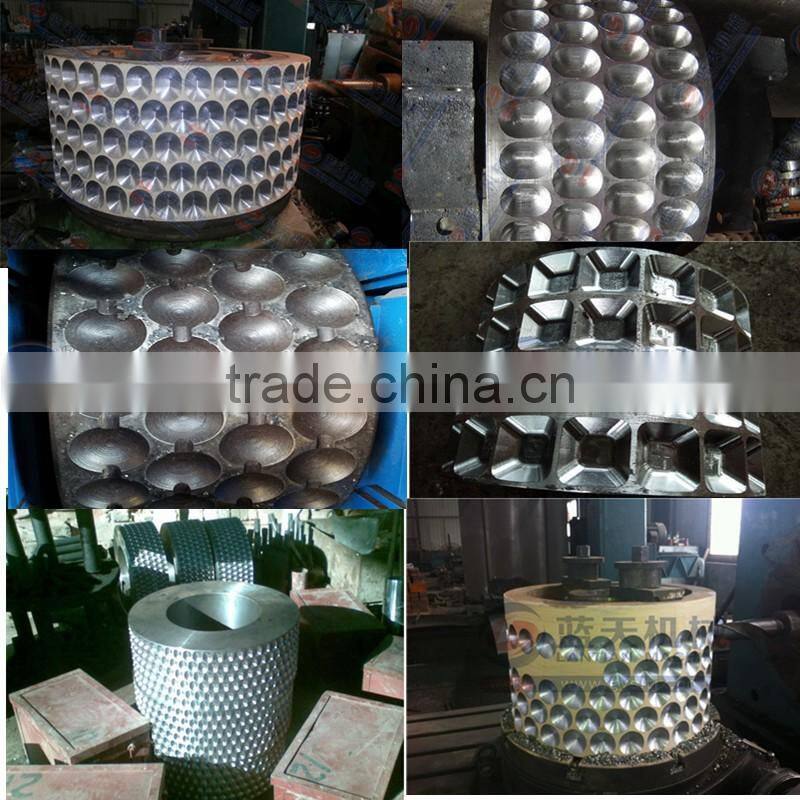

Different Molds Of Charcoal Briquettes Press Machine | ||
| ||

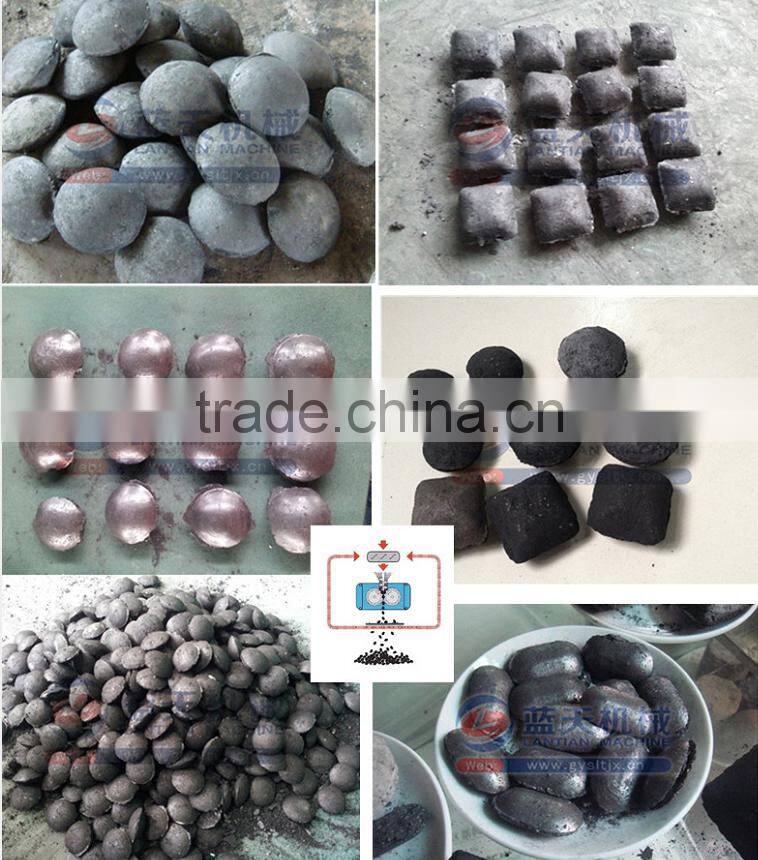

Different final products The size ad shape of final products can be custom,client can send us the drawing of products or tell us the size for products. | ||
|
| 4.Require Of Charcoal Briquettes Press Machine |
| Raw Material Require |
| (1) Inlet raw material need less than 3mm, the smaller the material, easy make the better the briquettes. (2) The material can't be mixed with metal material, or the mold is easily damaged. (3) The raw material moisture need be controlled between 12%-15%. (4) A certain proportation of liquid binder and charcoal powder, we will offer the proportation formula after we finished the order for free. |
| Features of Charcoal Briquettes Press Machine |
| 1) Special binder formula: 30 years development and numerous tests, we have got 6 kinds special binder formula, 100% natural, smokeless and smelless. We offer this formula to our customers for free. (2) Combustion improver formula: add this formula on the charcoal briquette surface, the charcoal briquettes can be ignited instantly, also length the burning time to 3 hours( ordinary just 1-1.5 hours). (3) Water-proof technique: our factory has special water-proof technique, to prevent the charcoal briquettes become wet, even put in the water, not moisture in it. (4) In later period: we dispatch erection workers install machines overseas. |
| Working Proces Of Charcoal Briquettes Press Machine |
| (1) Through reducer transmitting the powder material to two rollers, and making them rotated in opposite directions. (2) The powder materials naturally enter into the roller molds. (3) When the materials rotating to two rollers line contact points, materials pressure reached a peak. (4) Under enormous pressure, the powder materials are suppressed into finished briquettes. |

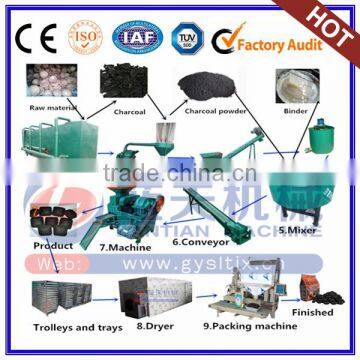

| 5. Product line Of Charcoal Briquettes Press Machine |
|
More details>>>

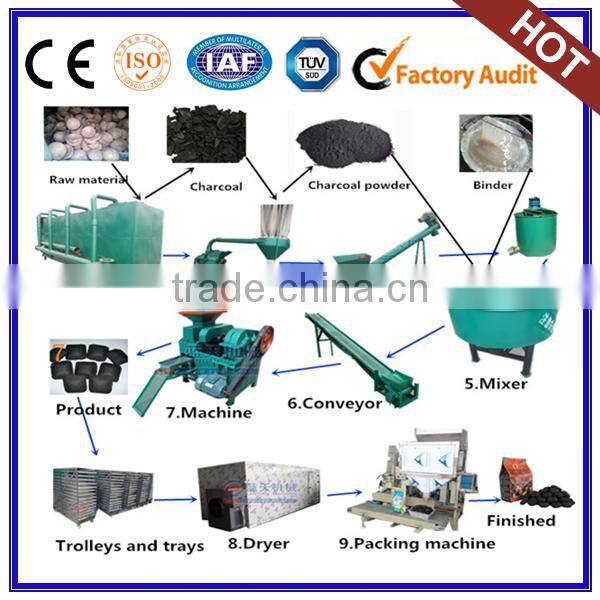

| The full product line include carbonized stove ,crusher,screw conveyor,binder mixer,mixer,conveyor,briquettes machine,dryer,packing machine.until now,we have many customer from different country, help them build their own factory,get big profit.choose our factory,you will enjoy the best service before sale and after sale. |

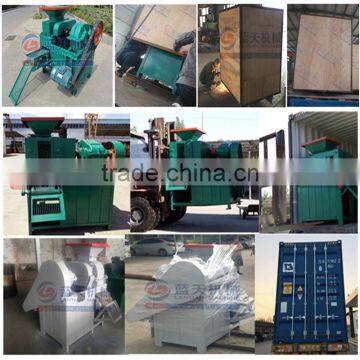

Payment Term: TT,L/C,West Union Price Term:EXW,FOB,CIF Shipment Period:3-5 Working days after getting balance payment Packing Term:Single machine will be packed by wood case,several machine will be packed by plastic or IN NUDE Shipping line:we have the kind carrier,she will range the 20GP,40GP,40HP to load your machine, with best cheap shipping cost and fast shipping line. |
|

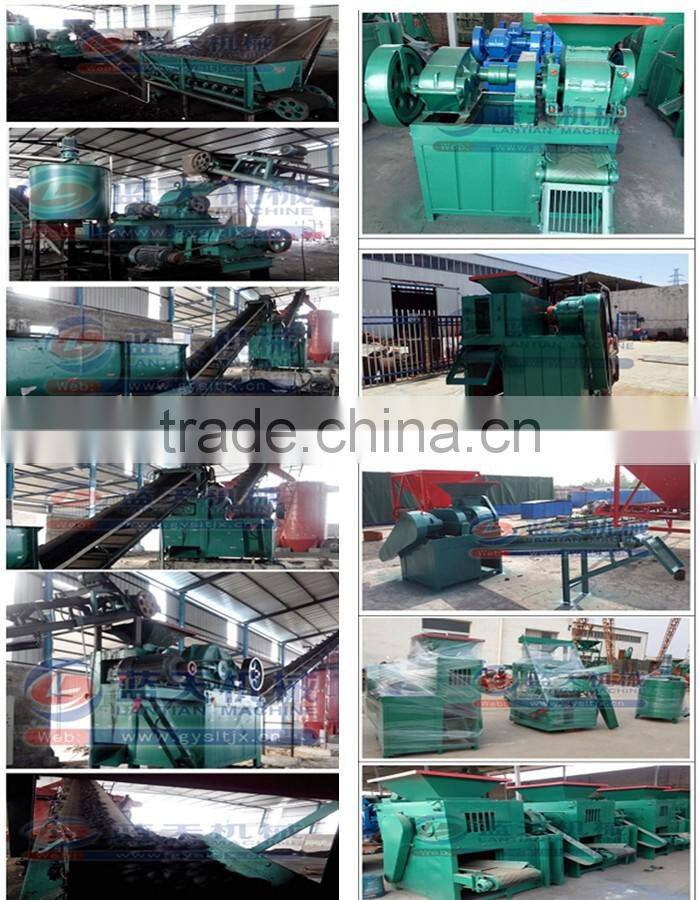

| 6.Different Customer visit our factory and test machine |
After chat business by email, if you want visit our factory, i will drive to airport or railyway station to pick you up, no need worried how to arrived our factory. Factory Address:Middle of Heluo Road ,Gongyi City Zhengzhou,Henan Province,China-451200 |
|
| 7.Payment For Different Customer |
| Our factory accept varies payment term and price term. the normal payment term and price term is :30%TT Deposit+70%TT Before loading machine |
|

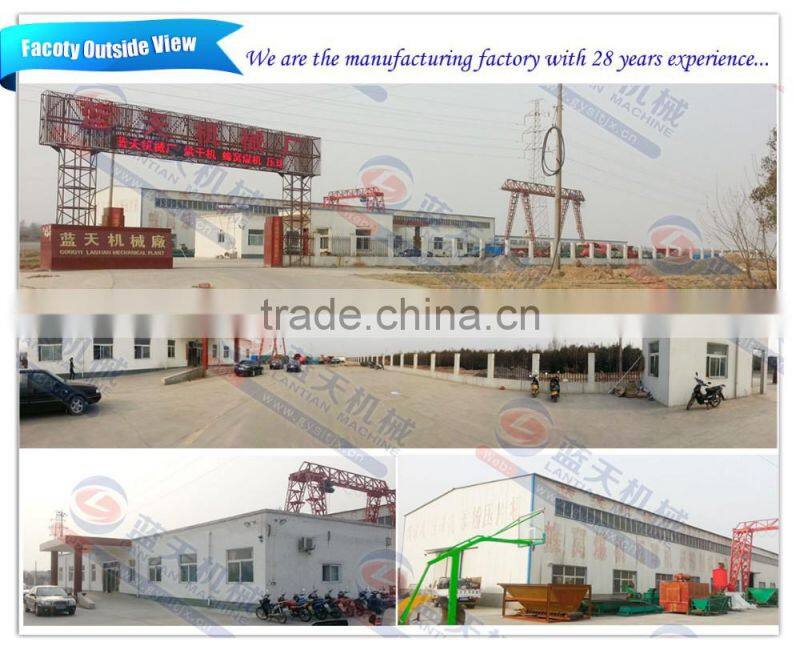

| 8.Details for Gongyi Lantian Machanical Plant |
| Gongyi Lantian Machanical Plant was built at 1980s, more than 36 years manufacturer experience. Our factory mainly produce Coal Charcoal briquette machine,Shisha Hookah briquette machine,Hydraulic press machine,Ball press machine,Biomass extrude machine,Charcoal extrude machine,Carbonized stove,Carbonized stove and other related machine.such as Crusher,Mixer, Conveyor,Feeder. We help customers choose and design the best quality product line for different type machine.our machine Sold at home and abroad,supply those certifications:CE.ISO9001,CO,Form E,COC,CIQ,to help customer from different country custom clearance |
|

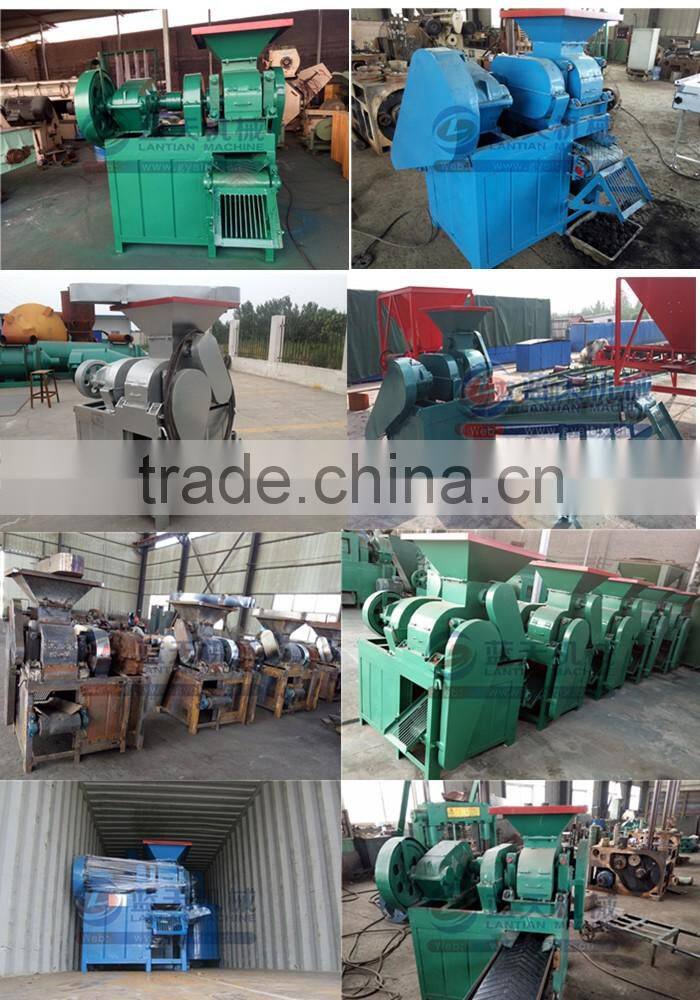

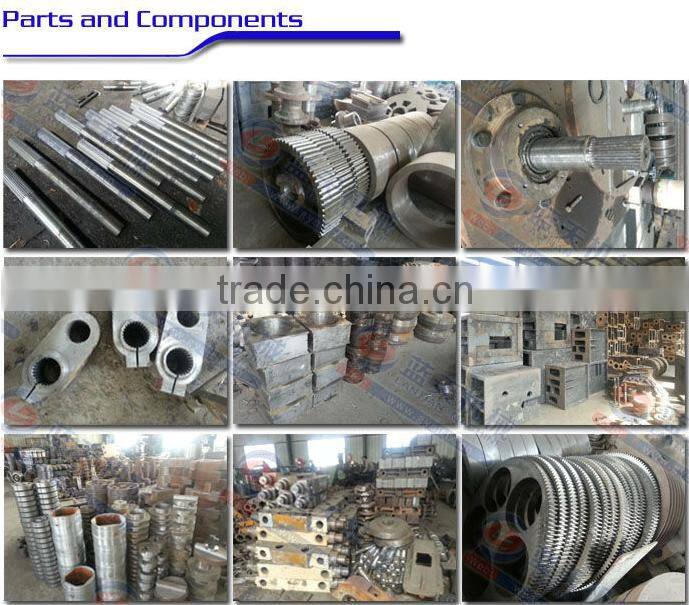

| Our workshop has different parts to connect veries machine,every parts produce by best workers ,the raw material from A grade raw material market, promis the quality. |
|
| Enginers can visit your country to help you install the full product line machine, if custoemr just buy small machine, sales will send you install documents by email, teach you how to use machine online. |
| Custome documents:After all the machine load by shipping line aready, i ready all the documents and certifications for custome clearance, send the original documents by DHL,help customer get machine easily. |
|
| Gongyi Lantian Machanical Plant | |
| Sales Manager | Sunshine Yu |
| Mobile phone | 0086 15038021962 |
| 1054121651 | |
| IM tools | Skype:sunshine110077, Whatsapp/Wechat:0086 15038021962 |
| Website | http://gyltjx.en.china.cn |
