Biomass Briquette Press Machine/ Briquette Making Machine
Production process:
1. Crushing the raw materials into size no bigger than 5mm. (wood, wood branch, coconut shell, peanut shell, rice husk, sunflower husk).
2. Dry of the crushed materials contronaled to 8-12%.
3. Pressing to raw material into briquette.
4. Make briquette carbonized in the carbonized oven.
5. The shape of briquette can be round, square, hexagonal.
Briquette Press Machine Working principle:
Briquetting is a process that biomass is compressed under high pressure and high temperature.
The self bonding of biomass to form a briquette involves the thermo plastic flow of the biomass. The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes.
During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 900 to 400kg/m.
The technicial parameter of the briuqette press machine
Model
Power(kw)
Capacity(kg/h)
Dia of Briquettes(mm)
Size(m)
Weight(kg)
HSZB-01
15+6
180-210
30,40,50
1.8x0.76x1.29
540/590
HSZB-02
11+6 gearbox
180-210
30,40,50
1.8x0.76x1.29
570/610
HSZB-03
22+9
350-400
60,70,80,90
1.96x0.88x1.62
1000/1100
HSZB-04
22+9 gearbox
350-400
60,70,80,90
1.96x0.88x1.62
1200/1300

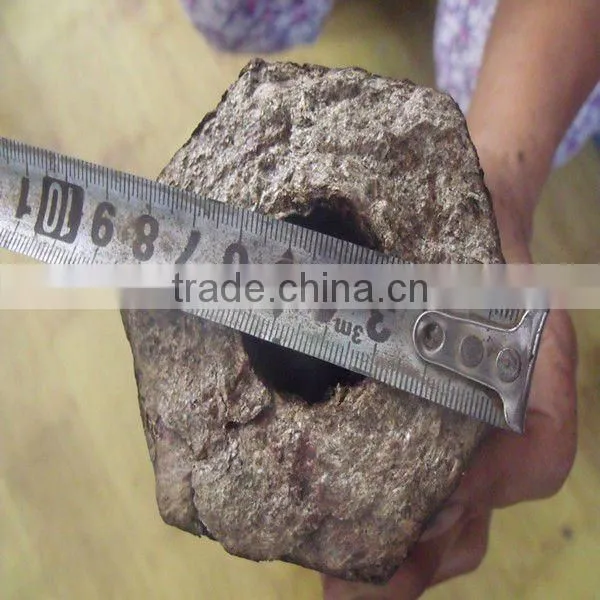

The final products of the briquette machine:
The final briquettes is hollow hexagonal , quadrangual ,cylinder with different diameters.
