Nantong Jiabao Machinery Co., Ltd
---- Leading through professional Team
The sponges hydraulic baler can baling package sponges,and others as plastic bottle, PET bottle and scrap plastic, Coir Fiber Baling Press, Foam press baler machine, woven plastic bags baler
Specification:
This vertical hydraulic baler is designed for long stroke pressing which is perfect for pressing products like plastic bottles and aluminum cans. It is a must-have piece of equipment for any hollow plastic or can recycling facilities to compress the waste material into tight and compact bales for easy handling, storage, and transportation.
1.Suitable for compress hard plastic, drink bottle, hay, fiber etc.
2.The machine use double cylinder balance compression, special hydraulic system, more stable.
3.High load structure, safety and reliable.
4.Adopt four side door opening type, the bale can be trapped in “#” shape.
5.The dimension of bale can be customized according to loading into containers.
6.U.S. or European standard lock device to ensure the safety of operation staff.
7.Feeding chamber install preventing material rebound device, save time greatly.
8.Adopt England brand sealing parts, improve the life time of oil cylinder.
9.Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.
10.Adopt Taiwan brand superposition type valve group.
11.Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.
Parameter:
| Model | JPA070T80 | JPA070T120 | JPA1010T160 |
| Hydraulic power | 80Ton | 120 Ton | 160Ton |
| Bale size(L*W*H) | 1000*700*(500-900)mm | 1000*700*(500-900) mm | 1100*1000*(400-1200)mm |
| Feed opening size(L*H) | 1000*500mm | 1000*500mm | 1100*800mm |
| Chamber Size(L*W*H) | 1000*700*1500mm | 1000*700*1500mm | 1100*1000*2000mm |
| Output | 4-6bales/hour | 4-6bales/hour | 4-6bales/hour |
| Voltage(can be customized) | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Power | 11KW/15HP | 15KW/20HP | 30KW/40HP |
| Machine size(L*W*H) | 1700*1300*3200mm | 1700*1300*3200mm | 2100*1800*4600mm |
| Weight | 2600Kg | 3200 Kg | 7300kg |
We have three models with varying chamber size, ensuring there is a model for every business, of course, we can work with you and set the chamber size so it's suitable for your specific needs.

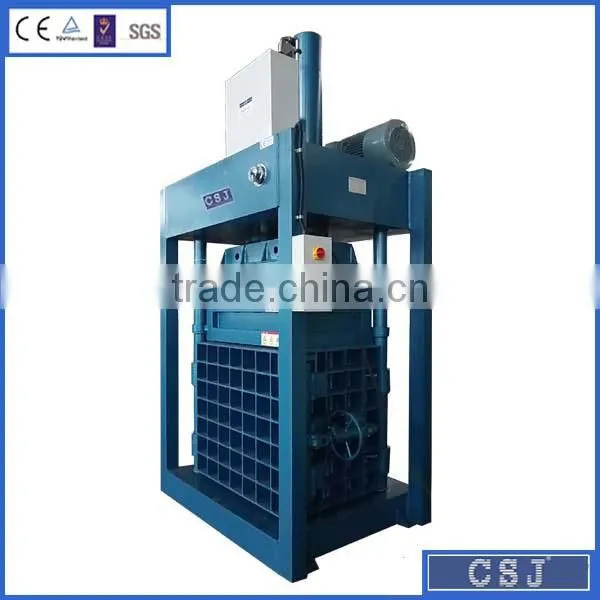

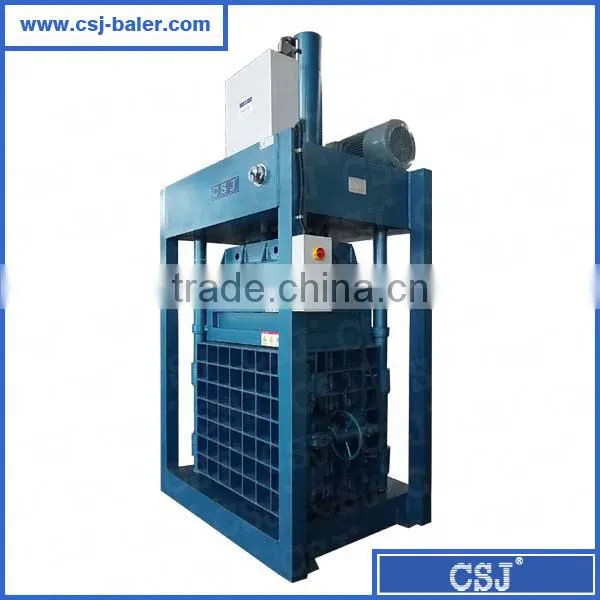

Machine appearance:
Our Factory
Certificate of CE TUV SGS
About us
- Jiajing(CSJ)’s factory is located in Nantong, Jiangsu Province and our marketing department is located in Shanghai.
- We are commited in the research and development of hydraulic balers since 1995, our target is to do the latest, the most fashionable and the most high-end product.
- Our product which has 7 series about 50 size has widely used in paper making,textile,commodities,food etc..
- Got CE ISO TUV SGS and so on Certifications
- We are the supplier of Nike, Wal-mart, Unicharm, Dumex, JNJ,RT-Mart and many other World famous manufactures and wholesalers.
Our Team
On Exhibition
Machine Package
FAQ
1. How long is the delivery time? within 15-25days after receiving deposit
2. Packing term: wooden case, loaded in 20’ container.
3. Warranty time: one year for whole machine, provide spare parts and English manual
4. Installment: No need to disassemble. Only need to fill hydraulic oil and connect to the main supply, and then you can start to operate.
5. Will test the machine before shipment? Yes, we will do it.
6. How about your export experience? We have export right and already export to more than 90 countries
7. Are you factory of baler machine? sure, our factory established in 1995
Our Service
- Warranty:12 moths.
- Engineers available to service machinery overseas.
- 24 hours technical support by e-mail.
