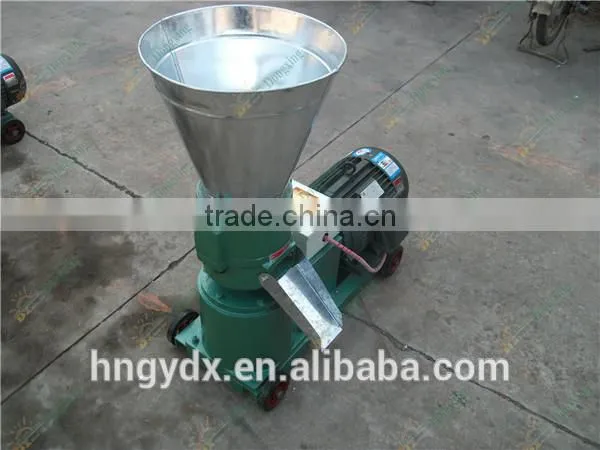

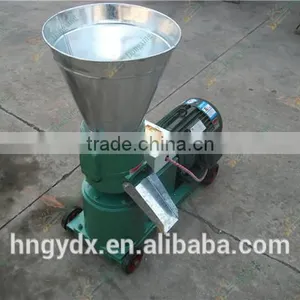

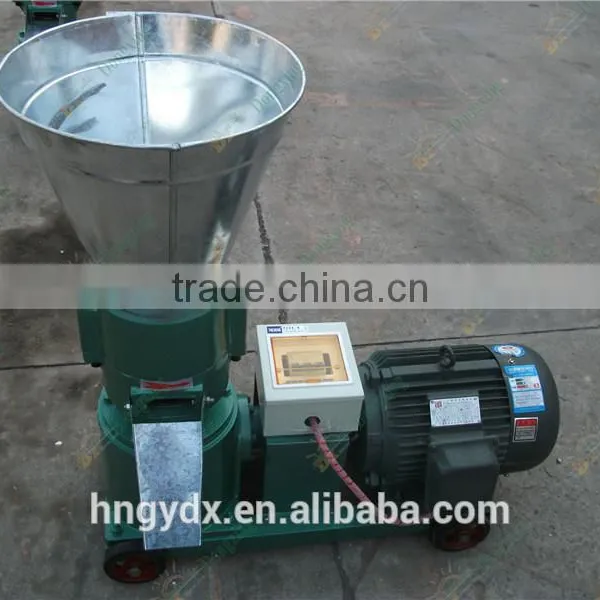

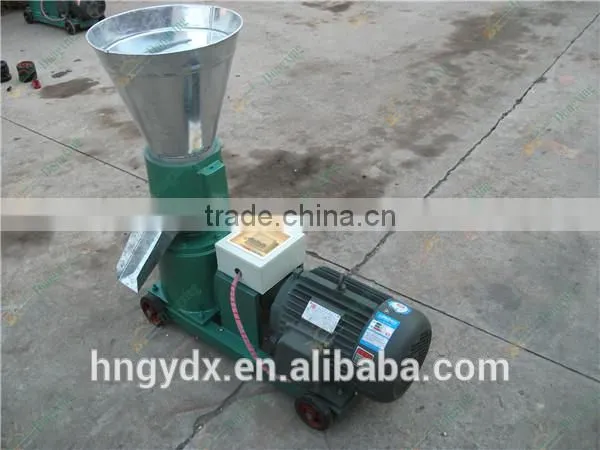

pellet machine animal food
This pellet machine is flat die for animal food, it was designed to produce feed for pig, sheep,chicken, rabbit, pet ect. Our company hold that quality first managemental idea, designed different models according to customers' require, adopt advanced technology than domestic and international market.
You can use this machine to produce different pellets with different length, because you can choose different die with different hole diameter according to your raw materials and animals. It is easy to operate and maintance with high quality, capacity and small investment.

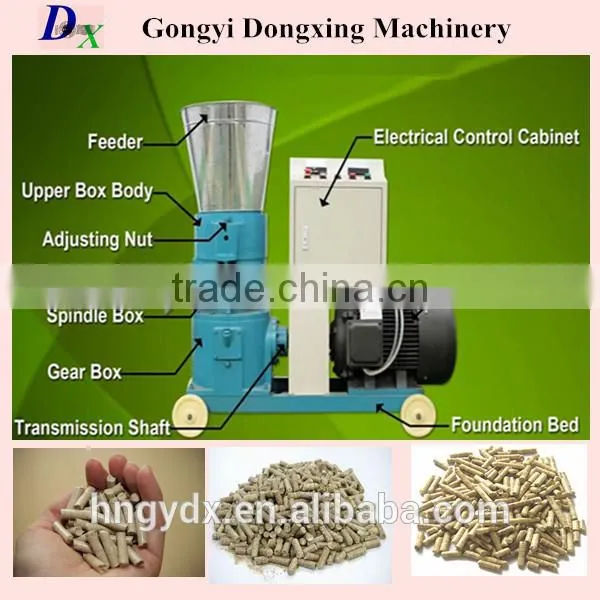

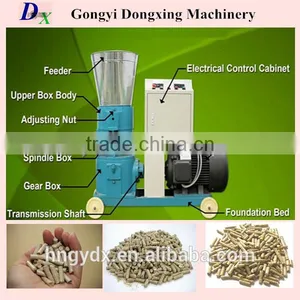

Structures:

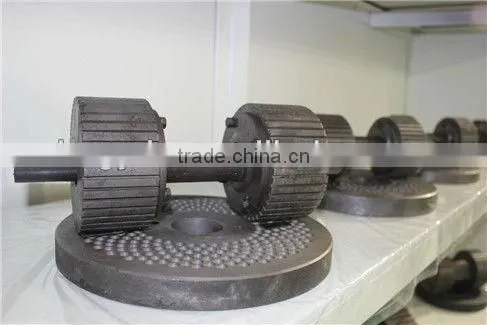

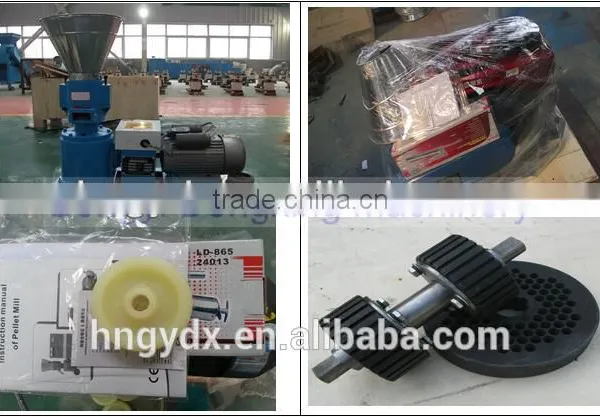

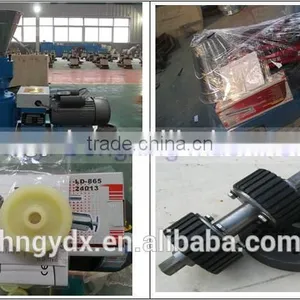

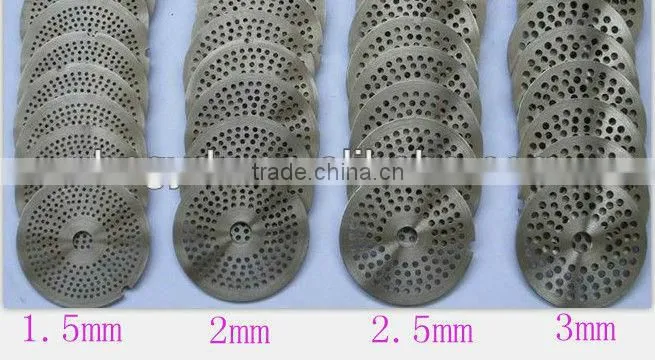

Here are the spare parts and different molds with different hole diameter molds:
Notice:
The roller, die, bearing, dust cover of shaft and grease seal belong to wearing parts,
when operating the machine, please notice that whether stone or other hard things
mixed in the materials, and use binder reasonablly.

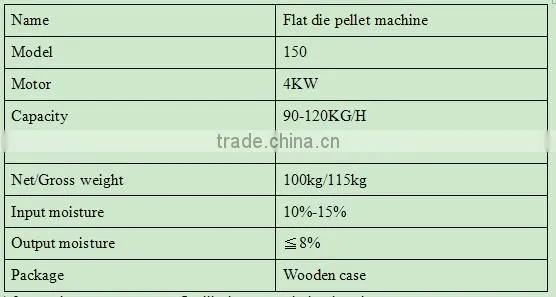

Parameter:
Materials:
The moisture of raw material should be about 12%-18%, and it must be powdery. If your materials are like thus, you need to crush them, if they are too dry, you should add more water.
Working principle:
First you should debug the machine, if thre is no problem and everything you have already prepared, you can start it. Then put the material into the feeder, it is heated to a high temperature (nearly 60~80 degree). Then the materials were compassed into pellets with a high temperature, so the pellets should be cooling for a period.
Production line:
Final product:

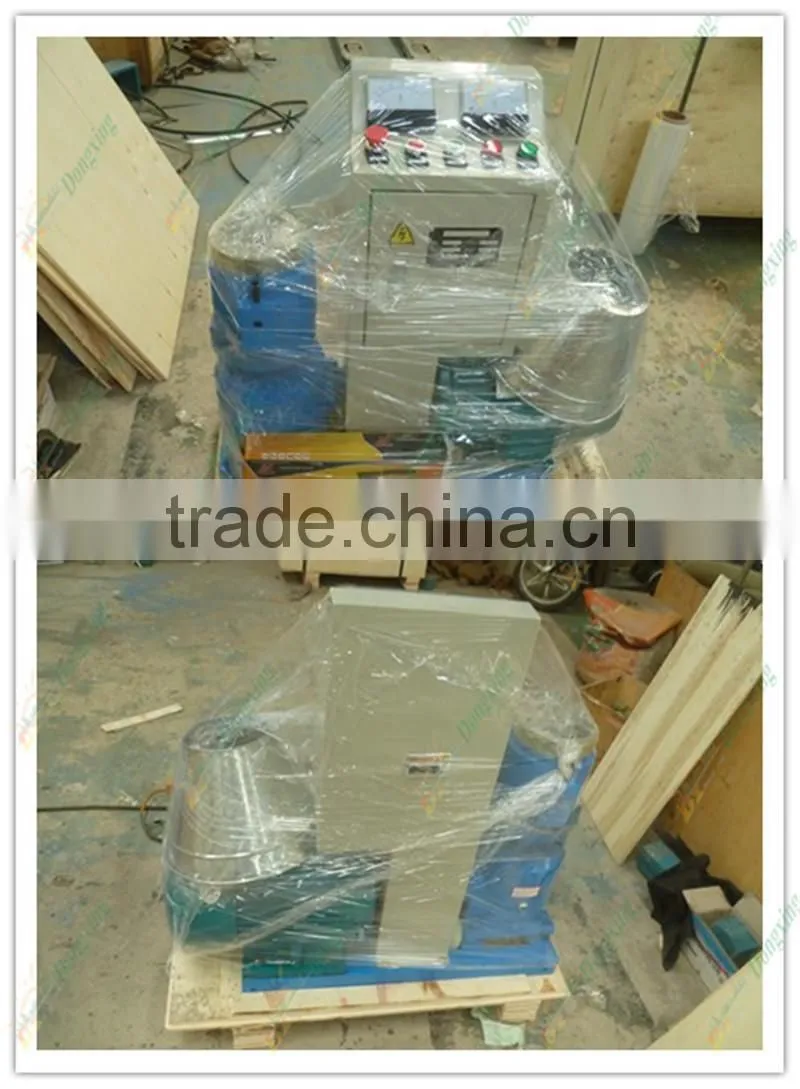

1.First we will seperate and wrap the machine with thick plastic film first(including the
motor).
2. The plastic film bag wrapped machine, according to the size and weight to make
wooden box, put machine in and fixed the box after loading.
3. The machine parts need to be put in a fixed container, should be fixed well.
We will choose the most convenient port to you.
Pre services:
1. We will introduce the most suitable machine to clients.
2. Answer questions patlently until clients thought they have solve the problem.
3. Pick clients up to our factory.
After services:
1. Communicate with clients about details of the machine.
2. Choose the most convenient port to clients.
3. Solve problems during the making and transporting process in time.
Question: No pellets are produced
Answers: 1. New die has not been ground by oily mixture or ground insufficiently.
2. Material contains too much moisture.
3. Material is not organic in nature or does not contain proper amount of lignin.
Solutions: 1. Clean feedstock out of the pelletizing holes and grind the die with oily mixture.
2. Adjust material moisture content.
3. Add 3-5% additive binder into the material.
Gongyi Dongxing Company
Add: Xinhua Road, Gongyi City, Henan Province, China
Tel: 86-371-85617836
Fax: 86-371-85617836
Certificates:
Welcome to visit our factory at any time!
