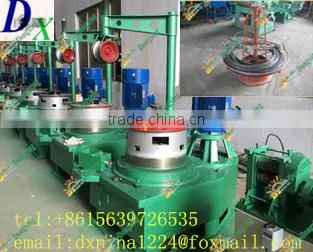

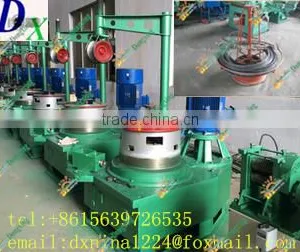

high carbon steel wire drawing machine
The description of the high carbon steel wire drawing machine
The high carbon steel wire drawing machine is mainly used in high medium and carbon steel, copper, alumium and alloy. The main function of the high carbon steel wire drawing machine is make the wire steels like 2.5mm diameter into 0.75mm in diameter steels.
Application of the high carbon steel wire drawing machine
widely used in wire steel factory, metal mesh factory and nail making factory.
The principle of the high carbon steel wire drawing machine
The high carbon steel wire drawing machine are driven by JZT series motor or Y series motor runs changefull gears to reduce speed by the gear coupling.
variable frequency motor →narrow v-belt→Decelerator with hardness gear surface→umbrella shape gears→Block driving
Data of the high carbon steel wire drawing machine
Production line of the high carbon steel wire drawing machine
Wire rod→wire drawing machine→nail making machine→threading rolling machine→polishing machine
Components of the high carbon steel wire drawing machine
I:Block
The block of the high carbon steel wire drawing machine are made of cast steel.heat treatment after rough producing process. The inside surface of the fine wire block are aluminium pasting.
II: Die box
The hard alloy are fixed in the die box inlet, which make the guiding direction.
The screw are made of tin bronze,which located in the top and nuts of the die box.
The die box which can be fixer at a height can be moved up and down, front to back, left to right by the turning roller.
III:Gear box:
The gear box use VG220 comopound gear oil.
IV:Safety cover
The safety cover is operated by the spring. You should close it before the fine wire drawing machine begine to work. If you forget this point, the machine will work in a very slow speed.
Pay off rack

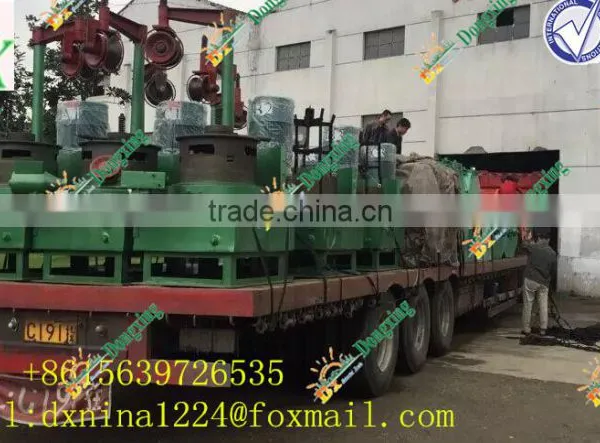

Packing standard
First thick film,
Then wooden case.
Finally LCL.
